Chapter 3 Introducing the Web Configurator
NBG420N User’s Guide
44
3.5.2 Summary: Any IP Table
This screen displays the IP address of each computer that is using the NBG420N via the any IP
feature. Any IP allows computers to access the Internet through the NBG420N without
changing their network settings when NAT is enabled. To access this screen, open the Status
screen (see
Section 3.5 on page 39 ), and click (Details...) next to Any IP Table.

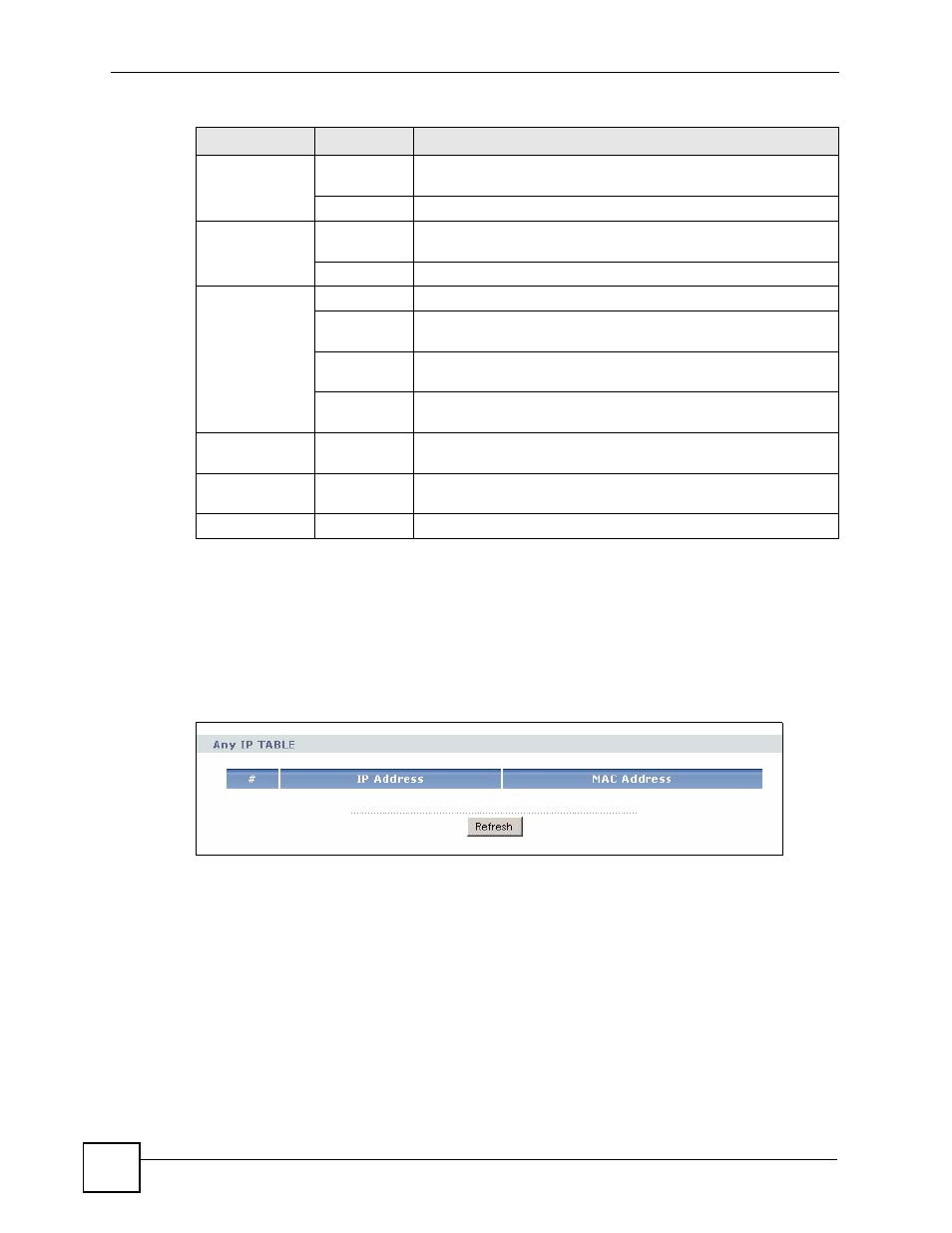

Figure 7 Any IP Table
3.5.3 Summary: Bandwidth Management Monitor
Select the BW MGMT Monitor (Details...) hyperlink in Status screen. View the bandwidth
usage of the WAN configured bandwidth rules. This is also shown as bandwidth usage over
the bandwidth budget for each rule. The gray section of the bar represents the percentage of
unused bandwidth and the blue color represents the percentage of bandwidth in use.
System General Use this screen to view and change administrative settings such as
system and domain names, password and inactivity timer.
Time Setting Use this screen to change your NBG420N’s time and date.
Logs View Log Use this screen to view the logs for the categories that you
selected.
Log Settings Use this screen to change your NBG420N’s log settings.
Tools Firmware Use this screen to upload firmware to your NBG420N.
Configuration Use this screen to backup and restore the configuration or reset
the factory defaults to your NBG420N.
Restart This screen allows you to reboot the NBG420N without turning the
power off.
Wake On
LAN
Use this screen to remotely turn on a device on the network.
Config Mode General This screen allows you to display or hide the advanced screens or
features.
Sys OP
Mode
General This screen allows you to select whether your device acts as a
Router or a Access Point.
Language This screen allows you to select the language you prefer.
Table 5 Screens Summary
LINK TAB FUNCTION
