Chapter 15 IPSec VPN
NBG420N User’s Guide
188

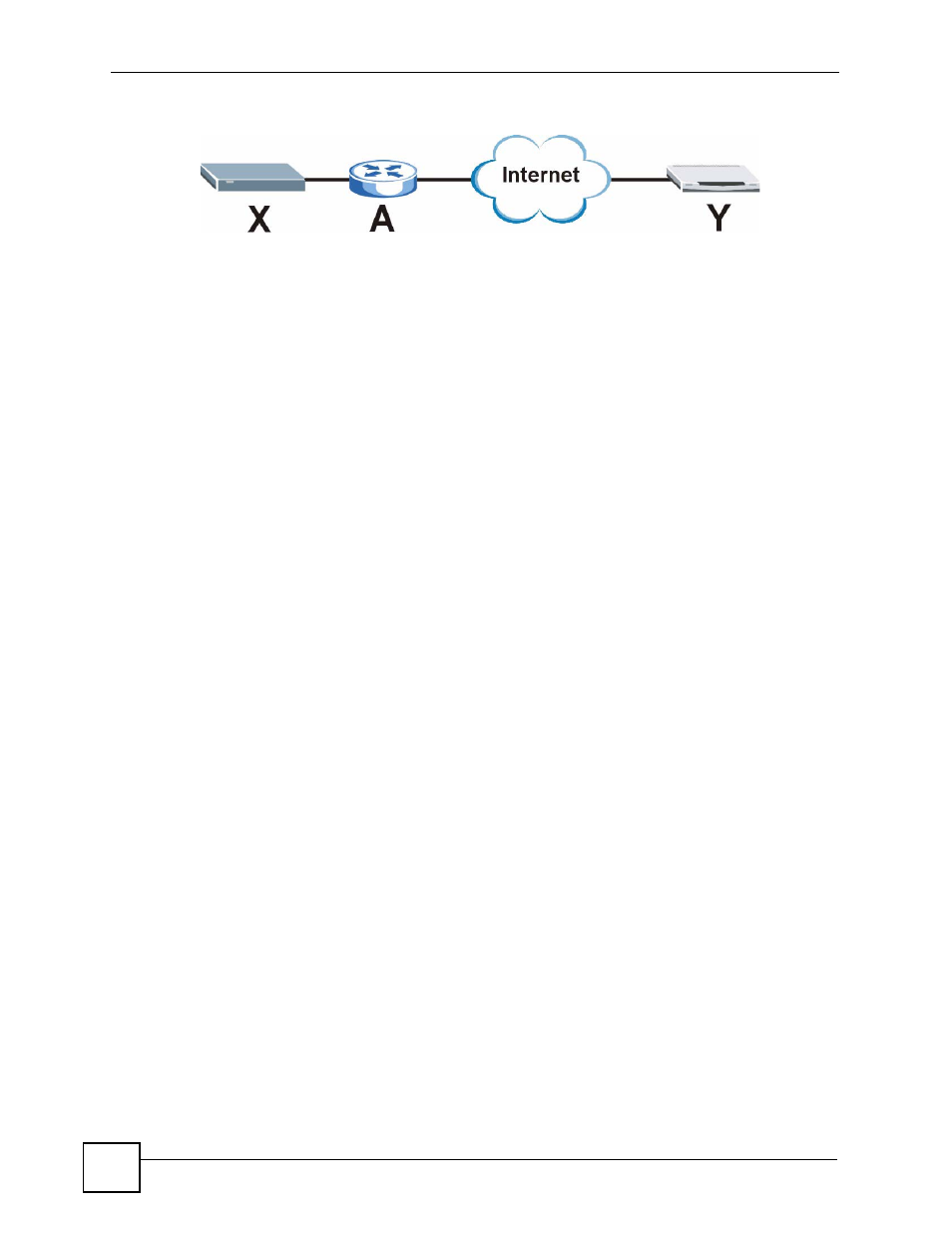

Figure 114 VPN/NAT Example
If router A does NAT, it might change the IP addresses, port numbers, or both. If router X and
router Y try to establish a VPN tunnel, the authentication fails because it depends on this
information. The routers cannot establish a VPN tunnel.
Most routers like router A now have an IPSec pass-through feature. This feature helps router A
recognize VPN packets and route them appropriately. If router A has this feature, router X and
router Y can establish a VPN tunnel as long as the IPSec protocol is ESP. (See
IPSec Protocol
on page 188 for more information about active protocols.)
If router A does not have an IPSec pass-through or if the IPSec protocol is AH, you can solve
this problem by enabling NAT traversal. In NAT traversal, router X and router Y add an extra
header to the IKE SA and IPSec SA packets. If you configure router A to forward these
packets unchanged, router X and router Y can establish a VPN tunnel.
You have to do the following things to set up NAT traversal.
• Enable NAT traversal on the NBG420N and remote IPSec router.
• Configure the NAT router to forward packets with the extra header unchanged.
The extra header may be UDP port 500 or UDP port 4500, depending on the standard(s) the
NBG420N and remote IPSec router support.
IPSec Protocol
The IPSec protocol controls the format of each packet. It also specifies how much of each
packet is protected by the encryption and authentication algorithms. IPSec VPN includes two
IPSec protocols, AH (Authentication Header, RFC 2402) and ESP (Encapsulating Security
Payload, RFC 2406).
Note: The NBG420N and remote IPSec router must use the same IPSec protocol.
Usually, you should select ESP. AH does not support encryption, and ESP is more suitable
with NAT.
Encapsulation
There are two ways to encapsulate packets. Usually, you should use tunnel mode because it is
more secure. Transport mode is only used when the IPSec SA is used for communication
between the NBG420N and remote IPSec router (for example, for remote management), not
between computers on the local and remote networks.
Note: The NBG420N and remote IPSec router must use the same encapsulation.
