Figure 36 Example WPS Process: PBC Method
6.1.2.2 PIN Configuration
When you use the PIN configuration method, you need to use both NBG420N’s configuration
interface and the client’s utilities.
1 Launch your wireless client’s configuration utility. Go to the WPS settings and select the
PIN method to get a PIN number.
2 Enter the PIN number to the PIN field in the Network > Wireless LAN > WPS Station
screen on the NBG420N.
3 Click Start buttons (or button next to the PIN field) on both the wireless client utility
screen and the NBG420N’s WPS Station screen within two minutes.
The NBG420N authenticates the wireless client and sends the proper configuration settings to
the wireless client. This may take up to two minutes. Then the wireless client is able to
communicate with the NBG420N securely.

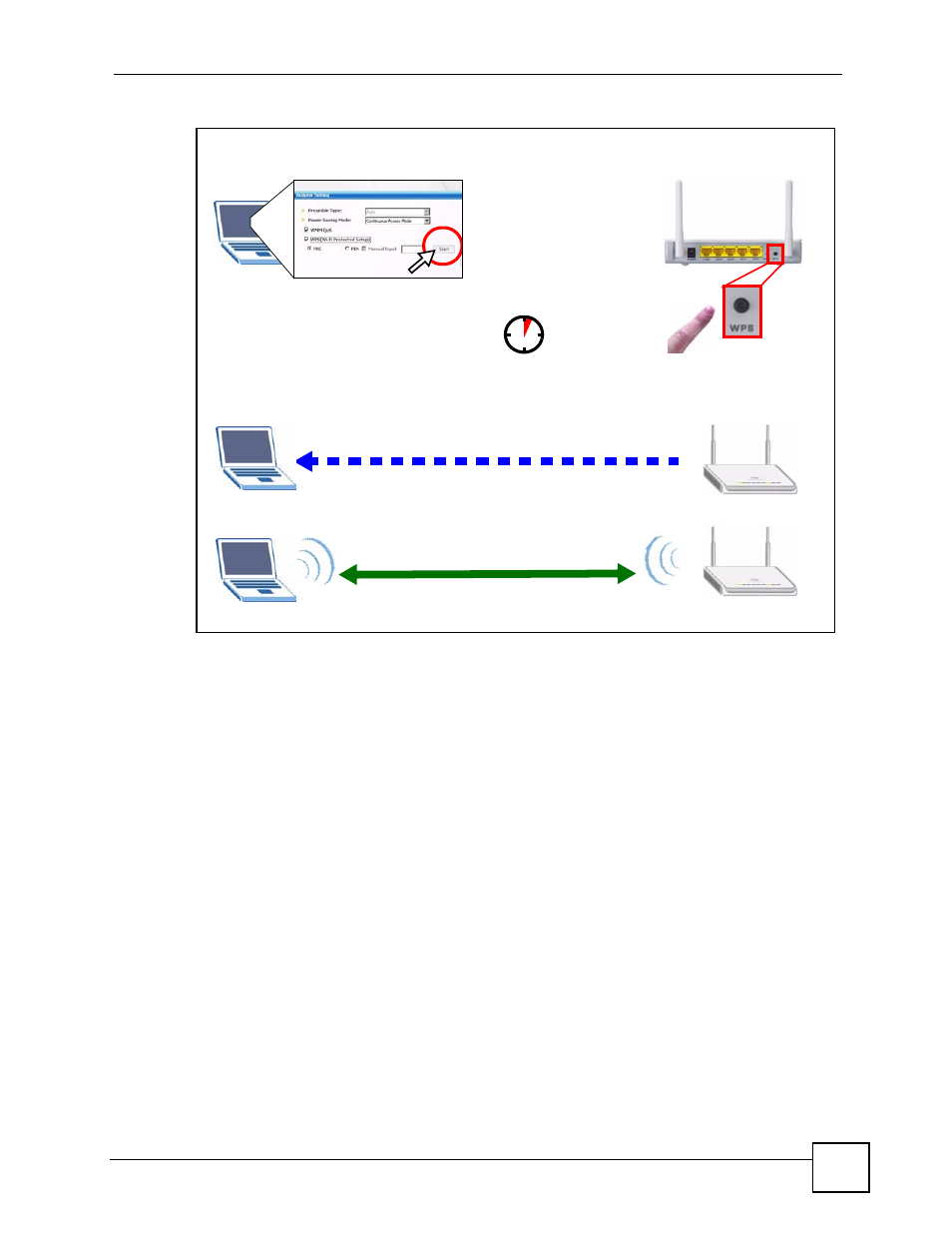

The following figure shows you the example to set up wireless network and security on
NBG420N and wireless client (ex. NWD210N in this example) by using PIN method.
Wireless Client
NBG420N
SECURITY INFO
COMMUNICATION
WITHIN 2 MINUTES
