Chapter 6 Tutorials
NBG420N User’s Guide
80

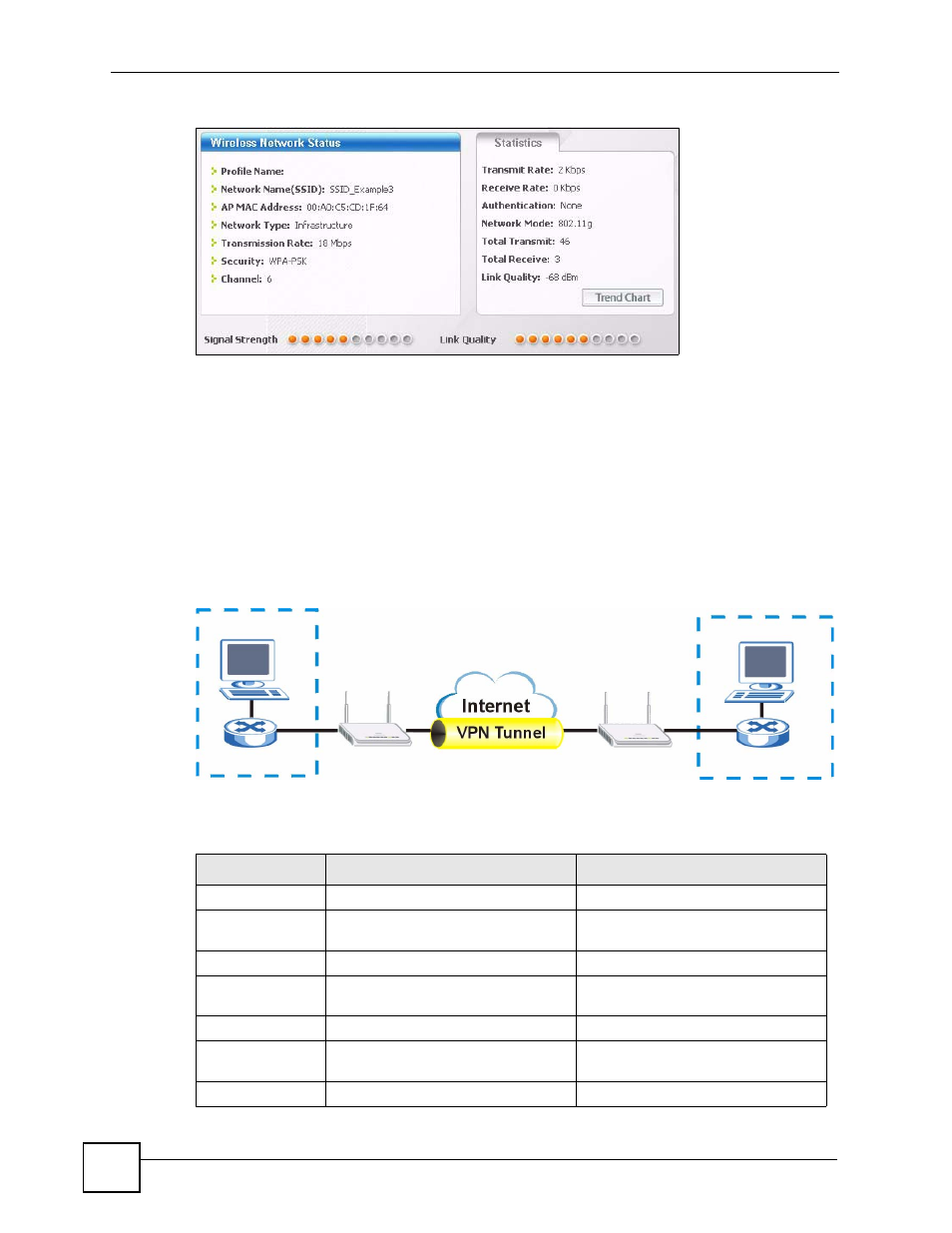

Figure 43 Link Status
8 If your connection is successful, open your Internet browser and enter http://
www.zyxel.com or the URL of any other web site in the address bar. If you are able to
access the web site, your wireless connection is successfully configured.
6.2 Site-To-Site VPN Tunnel Tutorial
Bob and Jack want to setup a VPN connection between their offices. Bob and Jack each have a
NBG420N router and a static WAN IP address. This tutorial covers how to configure their
NBG420Ns to create a secure connection.
Figure 44 Site-To-Site VPN Tunnel
The following table describes the VPN settings that must be configured on Bob and Jack’s
NBG420N routers.
Table 26 Site-To-Site VPN Tunnel Settings
SETTING BOB’S NBG420N JACK’S NBG420N
Active YES YES
IPSec Keying
Mode
IKE IKE
Local Address 192.168.1.35 10.0.0.7
Local Address End
/Mask
192.168.1.35 10.0.0.7
Remote Address 10.0.0.7 192.168.1.35
Remote Address
End /Mask
10.0.0.7 192.168.1.35
My IP Address 1.1.1.1 2.2.2.2
192.168.1.35
10.0.0.7
BOB JACK
1.1.1.1 2.2.2.2
