Dimension ES-2024 Ethernet Switch
3-4 Hardware Connections

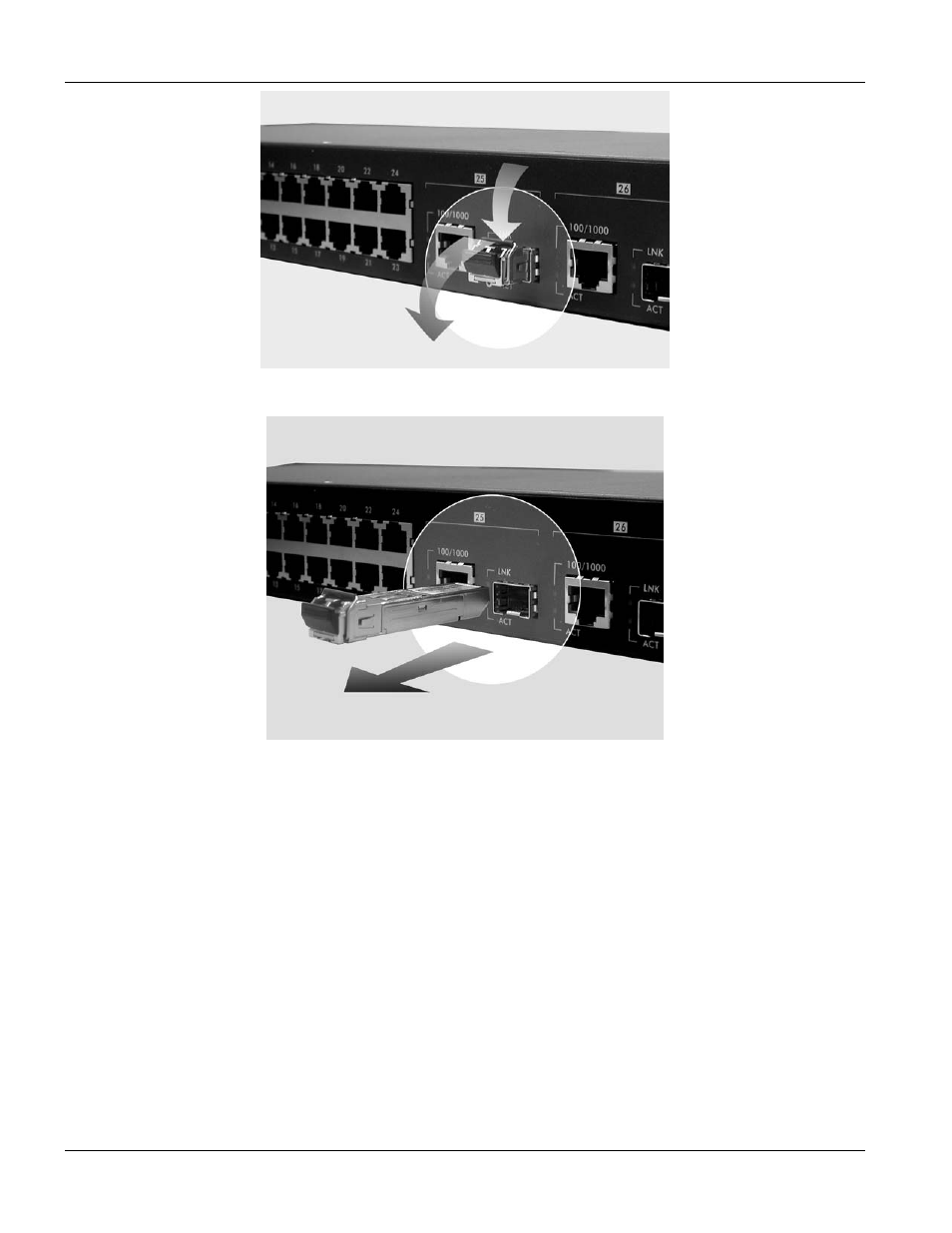

Figure 3-4 Opening the Transceiver’s Latch Example
Figure 3-5 Transceiver Removal Example
3.2.4 Console Port
For local management, you can use a computer with terminal emulation software configured to the following
parameters:
VT100 terminal emulation 9600 bps
No parity, 8 data bits, 1 stop bit No flow control
Connect the male 9-pin end of the console cable to the console port of the ES-2024 switch. Connect the female end
to a serial port (COM1, COM2 or other COM port) of your computer.
3.3 Rear Panel
The following figure shows the rear panel of the ES-2024. The rear panel contains the power receptacle and the
fan.
