Dimension ES-2024 Ethernet Switch
23-2 MAC Table
23.2 Viewing MAC Table
Click Management in the navigation panel and then MAC Table to display the following screen. The MAC table
can hold up to 10K entries.

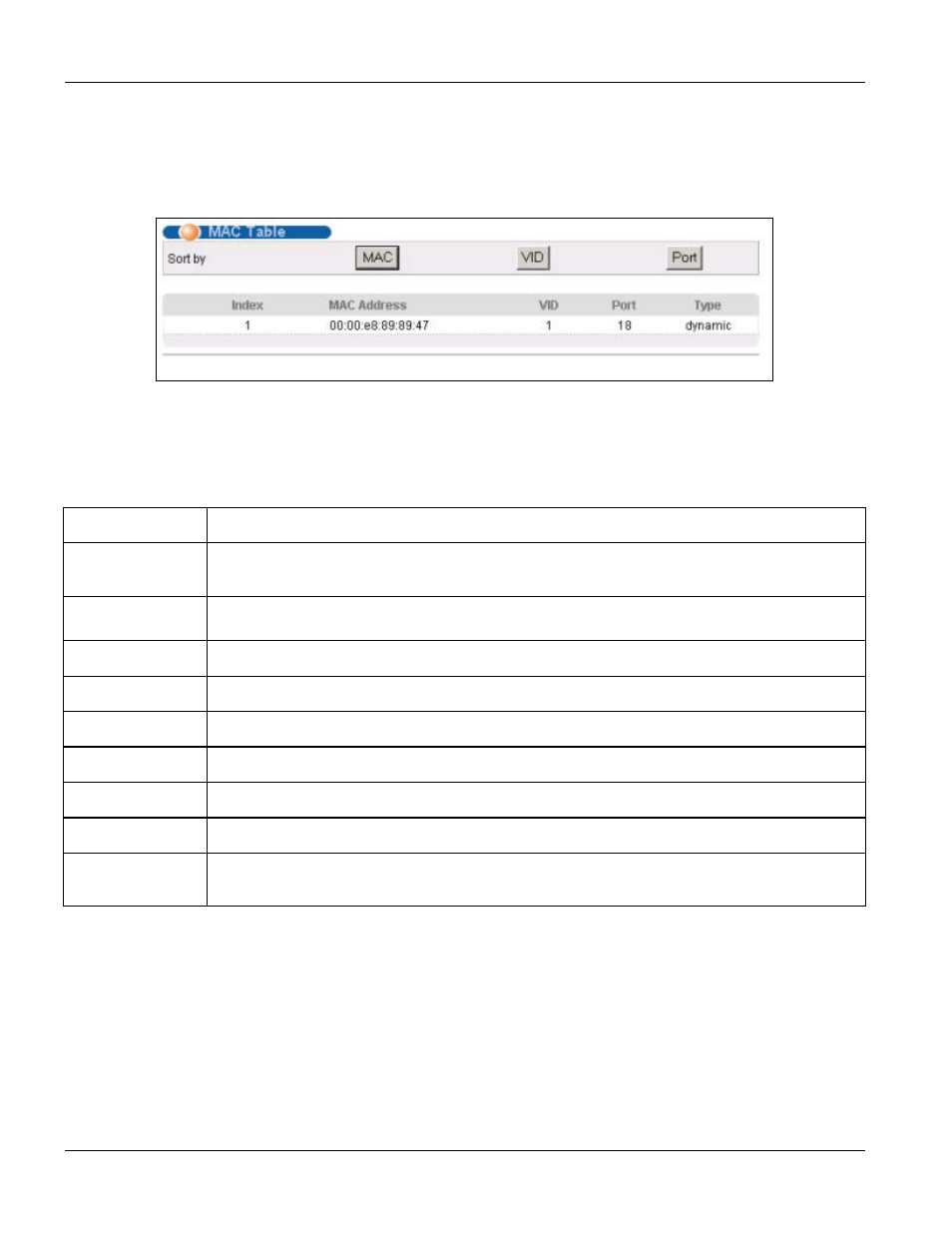

Figure 23-2 MAC Table
The following table describes the labels in this screen.
Table 23-1 MAC Table
LABEL DESCRIPTION
Sort by Click one of the following buttons to display and arrange the data according to that button type.
The information is then displayed in the summary table below.
MAC Click this button to display and arrange the data according to MAC address.
VID Click this button to display and arrange the data according to VLAN group.
Port Click this button to display and arrange the data according to port number.
Index This is the incoming frame index number.
MAC Address This is the MAC address of the device from which this incoming frame came.
VID This is the VLAN group to which this frame belongs.
Port This is the port from which the above MAC address was learned.
Type This shows whether the MAC address is dynamic (learned by the switch) or static (manually
entered in Static MAC Forwarding).
