Dimension ES-2024 Ethernet Switch

Hardware Connections

3-3

Transceiver Installation

Use the following steps to install a mini GBIC transceiver (SFP module).

Step 1.

Insert the transceiver into the slot with the exposed section of PCB board facing down.

Step 2.

Press the transceiver firmly until it clicks into place.

Step 3.

The switch automatically detects the installed transceiver. Check the LEDs to verify that it is functioning
properly.

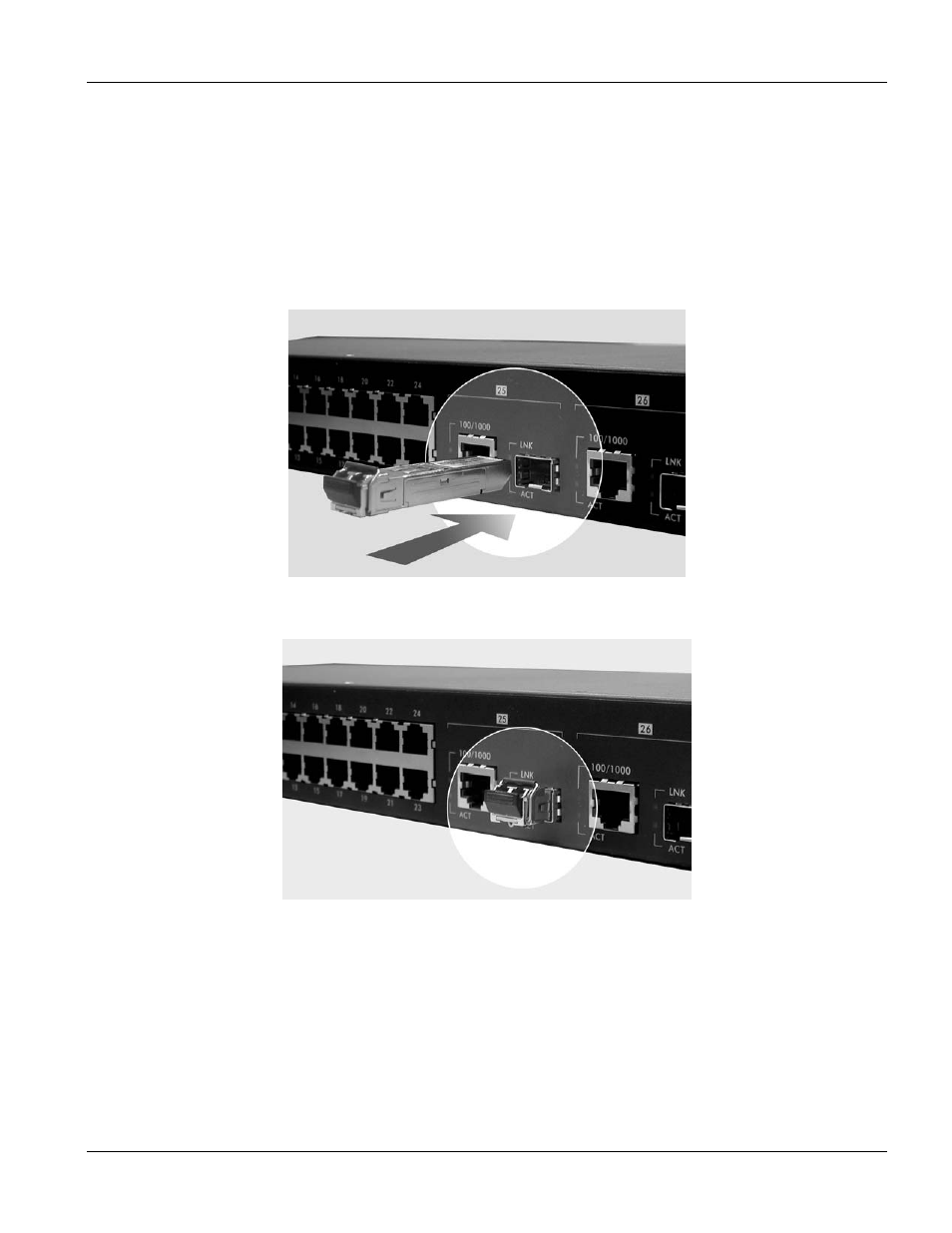

Figure 3-2 Transceiver Installation Example

Figure 3-3 Installed Transceiver

Transceiver Removal

Use the following steps to remove a mini GBIC transceiver (SFP module) from the MSC1000-GBA module.

Step 1.

Open the transceiver’s latch (latch styles vary).

Step 2.

Pull the transceiver out of the slot.
