ZyXEL Communications ZyXEL Dimension ES-2024 User Manual
Page 26
Dimension ES-2024 Ethernet Switch
1-6
Getting to Know the ES-2024

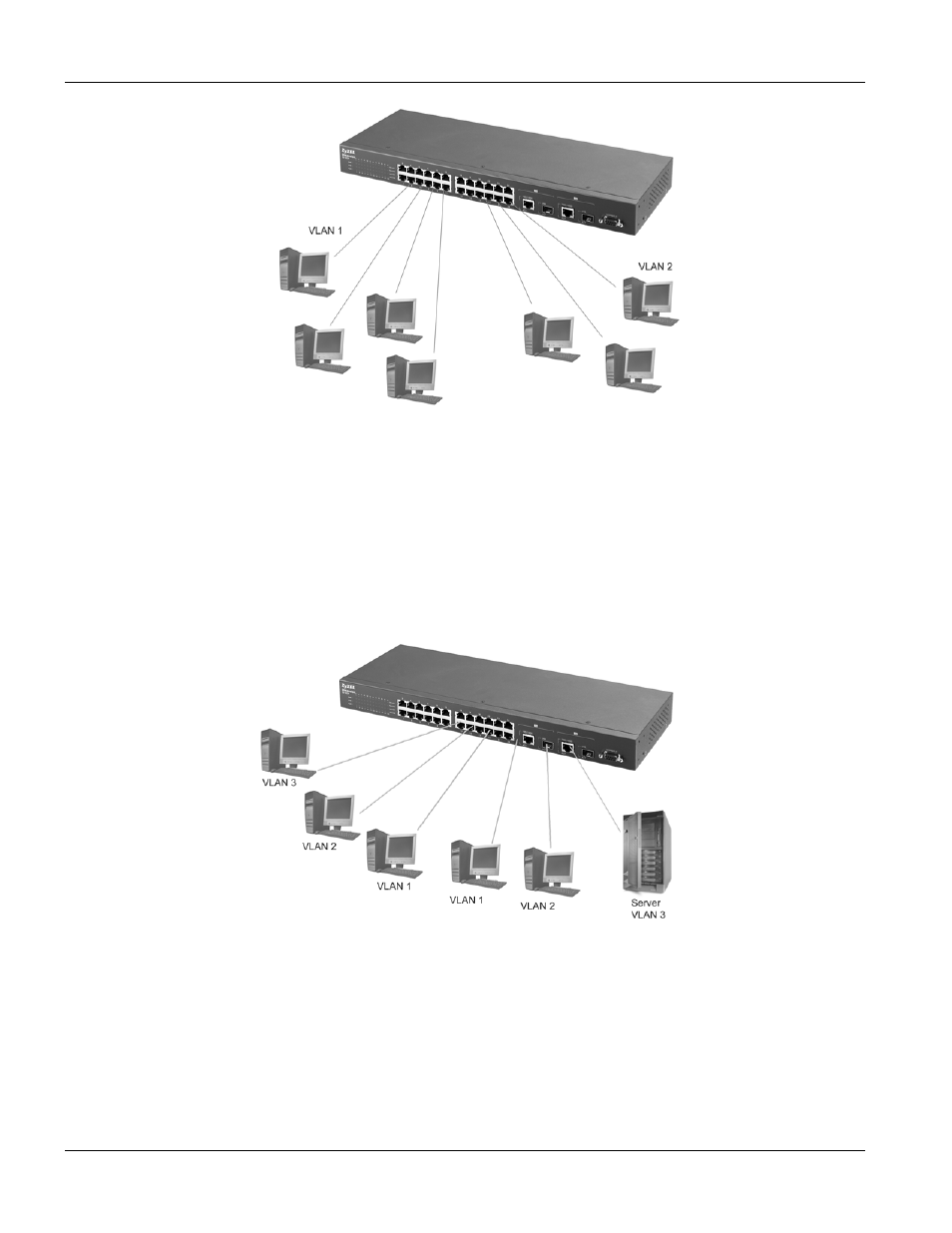

Figure 1-4 VLAN Workgroup Application
VLAN Shared Server Example
Shared resources such as a server can be used by all ports in the same VLAN as the server, as shown in the
following example. In this example, only ports that need access to the server need belong to VLAN 3 while they
can belong to other VLAN groups too.
Figure 1-5 Shared Server Using VLAN Example
