8 Mechanical Information
The TSB12LV26 is packaged in a 100-terminal PZ package. The following shows the mechanical dimensions for the
PZ package.

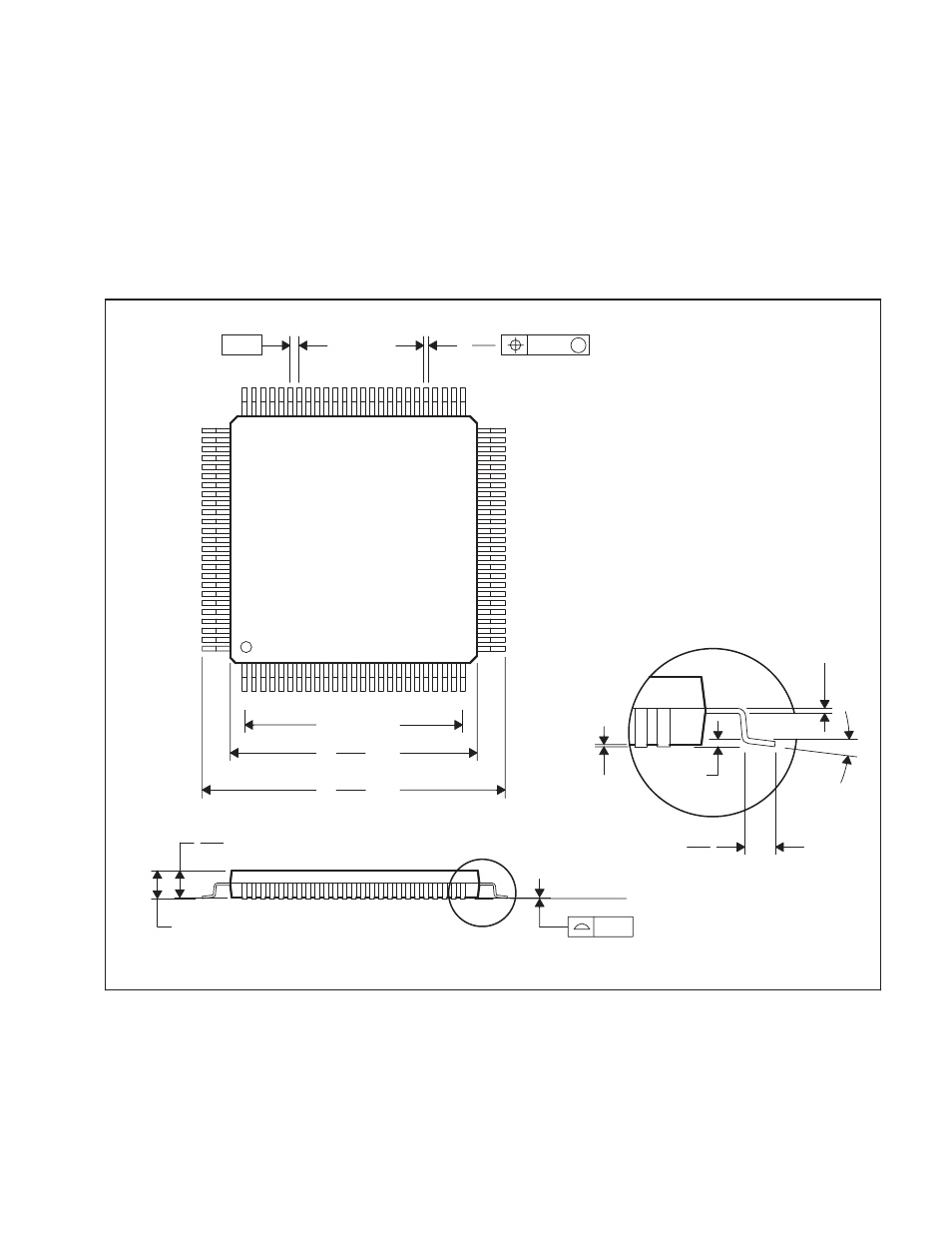

PZ (S-PQFP-G100) PLASTIC QUAD FLATPACK
4040149 /B 11/96
50
26
0,13 NOM
Gage Plane
0,25
0,45
0,75
0,05 MIN
0,27
51
25
75
1
12,00 TYP
0,17
76
100
SQ
SQ
15,80
16,20
13,80
1,35
1,45
1,60 MAX
14,20
0
°
– 7
°
Seating Plane
0,08
0,50 M 0,08
NOTES: A. All linear dimensions are in millimeters.
B. This drawing is subject to change without notice.
C. Falls within JEDEC MO-136
