Software Installation
5-6

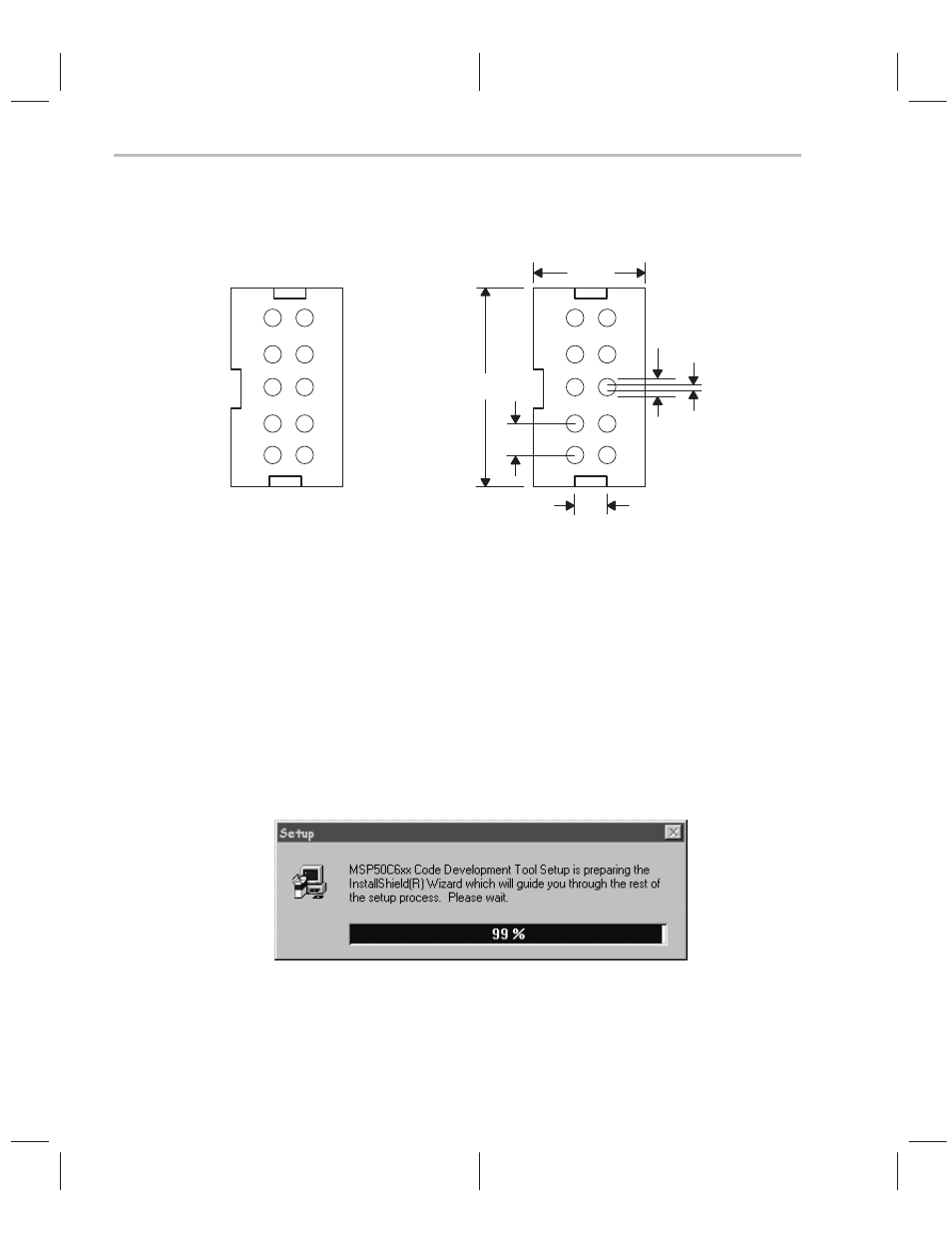

Figure 5–3. 10-Pin IDC Connector (top view looking at the board)
IDC2X5M
RESET
VPP
SCANCLK
PGMPULSE
SYNC
GND
N/C
SCANIN
VDD
SCANOUT
1
3
5
7
9
2
4
6
8
10
PINOUT DETAILS
10-PIN HEADER
(3M PART# 2510–60024B)
LAYOUT DETAILS
0.1
I
0.800
I
0.1
I
IDC2X5M
HOLE DIA 0.038
I
PAD DIA 0.060
I
0.35
I
5.5
Software Installation
Install the MSP50P614/MSP50C614 development tool from the supplied
floppy disk by running the
setup.exe
. Installation should not take much more
than one minute.
Following are the Software Installation steps:
Step 1: Run the
setup.exe
application from Windows explorer or using the
Run menu option by pressing the start button.
Figure 5–4. InstallShield Window
