Appendix D: M2317 telephone Page 445 of 504
Telephones and Consoles Description, Installation, and Operation
The following figures show the M2317 key layout and the different telephone
states that can be displayed on the M2317 screen.
ringing (or “feature pending”) flash (60 Hz)
hold fast flash (120 Hz)
Figure 87

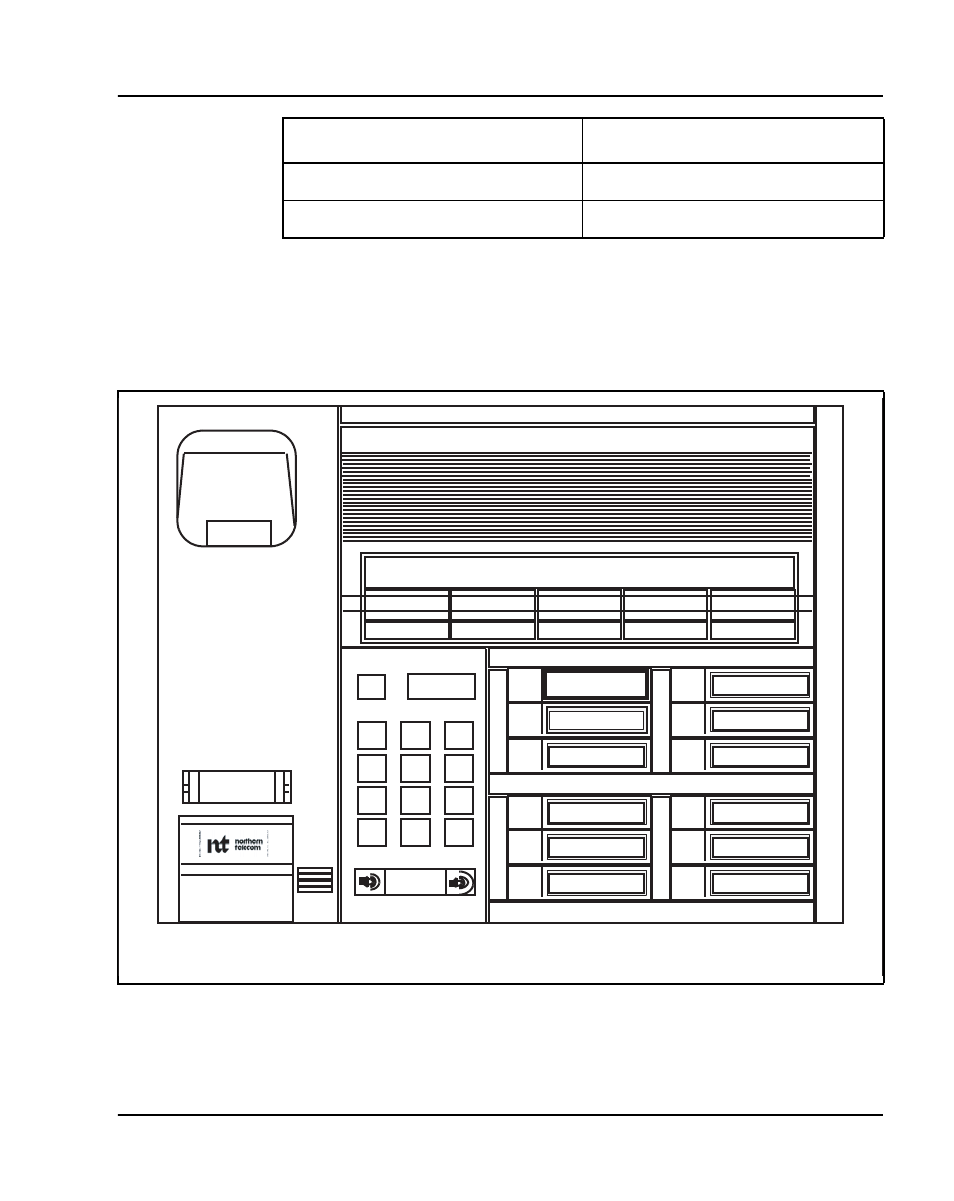

M2317 telephone – key identification
Function LCD state
Directory
Number lens
Note: Numbers in brackets in this illustration are shown for testing and
identification purposes only. These numbers are not marked on the keys.
First line of LCD Display
Second line of LCD Display
Soft Key (1) Soft Key (2) Soft Key (3) Soft Key (4) Soft Key (5)
Rls Hold
1 2 3
4 5 6
7 8 9
* 0 #
Handsfree
Mute
(11)
Feature Key (10)
Feature Key (7)
Feature Key (8)
Feature Key (9)
Feature Key (6)
Feature Key (5)
Feature Key (4)
Feature Key (1)
Feature Key (2)
Feature Key (3)
Feature Key (0)
