Page 440 of 504 Appendix D: M2317 telephone
553-3001-367 Standard 3.00 August 2005
M2317 Telephone is intended for professionals and managers, and secretaries
in group answer positions. It interfaces with the system through the Digital
Line Card (DLC). It is connected to the switching equipment through a
two-wire loop carrying two independent 64 kb/s Time Compressed Multiplex
(TCM) channels with associated signaling channels. One of the two TCM
channels is dedicated to voice, and the other to data traffic.
The M2317 telephone has the following features:
• A built-in, two-line (40 characters per line) Liquid Crystal Display
(LCD) screen and integrated Handsfree.
• A telephone line cord and the handset cord equipped with standard
modular connectors at each end, that enables quick replacement when
required.
The M2317 Telephone is equipped with a microphone and speaker to permit

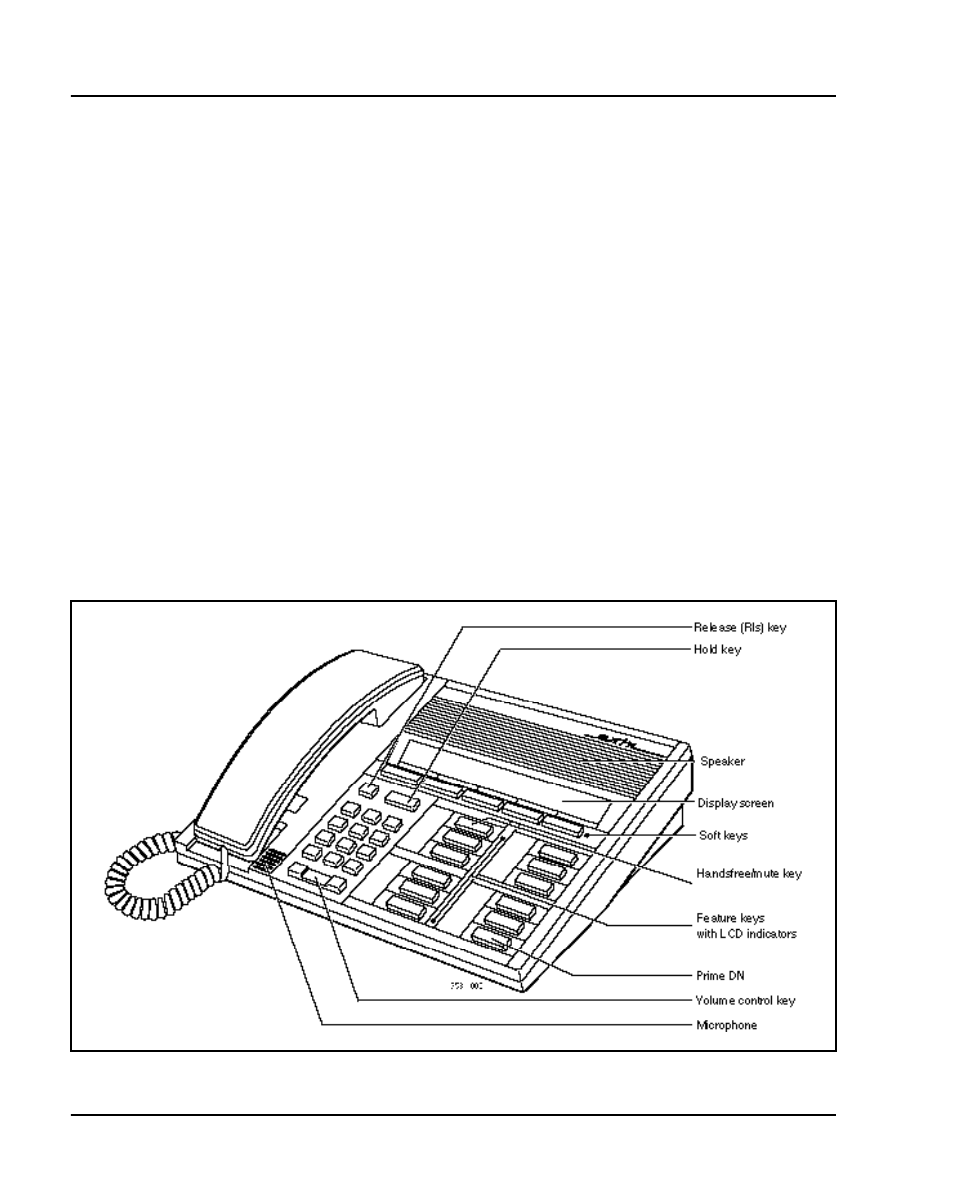

Handsfree operation. Figure 86 shows the M2317 Telephone.
Figure 86
M2317 Telephone
