Appendix B: Meridian Modular Telephones installation Page 363 of 504
Telephones and Consoles Description, Installation, and Operation

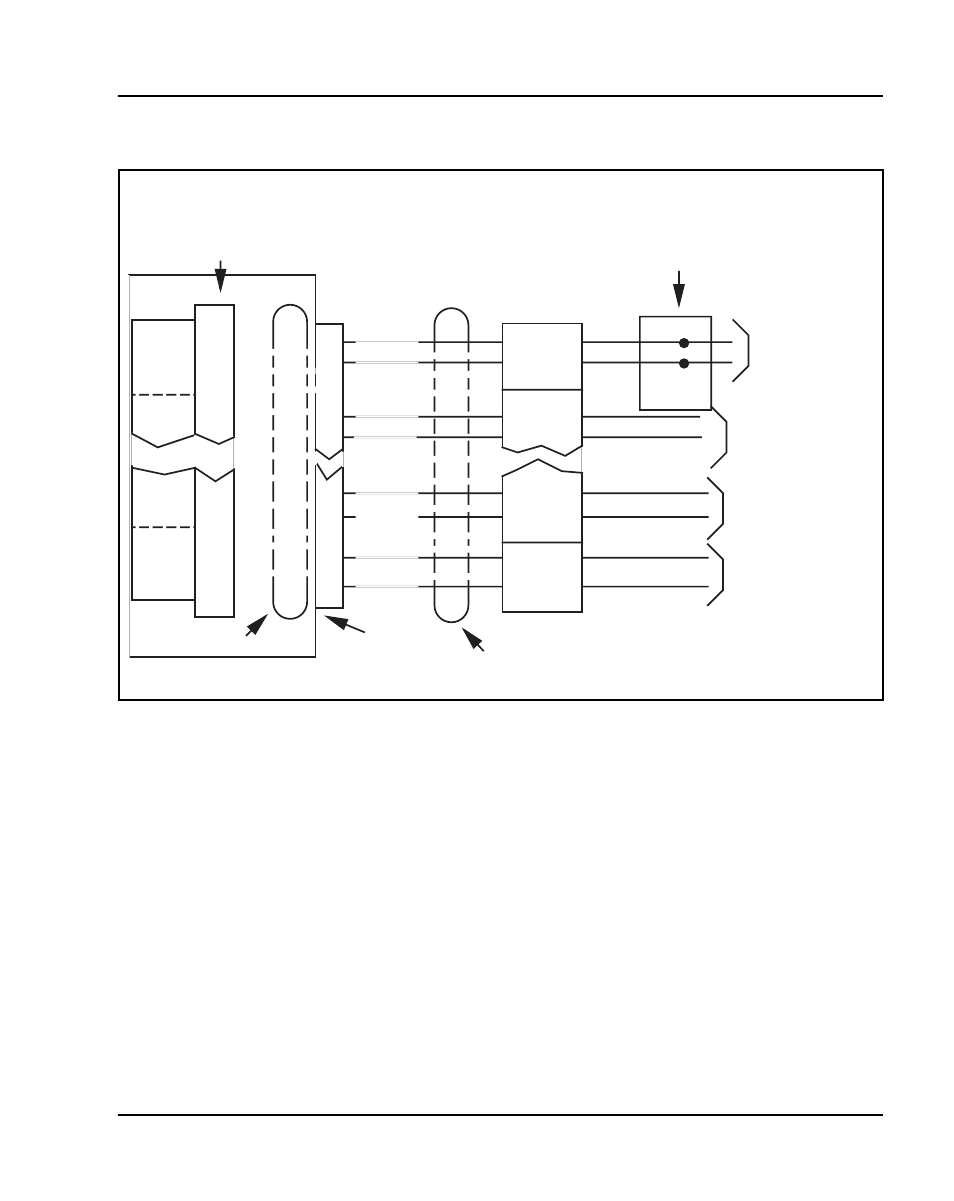

Figure 63
M2317 digital telephone cross-connections
M2317 telephone self-test
The M2317 telephone has a self-testing capability. This test can be performed
whether or not the telephone is connected to the system. The test checks the
proper functioning of the keys and LCD indicators on the telephone.
Follow the steps listed in Procedure 64 on page 364 and Table 61 to perform
the M2317 self-test.
Unit 0
Unit 1
Unit 6
Unit 7
T0
R0
T1
R1
T6
R6
T7
R7
26
1
28
3
38
13
40
16
W-BL
BL-W
W-G
G-W
BK-G
G-BK
BK-S
S-BK
T0
R0
T1
R1
T6
R6
T7
R7
G
R Line cord
to telephone
to telephone
to telephone
to telephone
PE shelf
Line
pack
Pack
connector
Part of
25 pair cable
Shelf
connector
Cross connect
block
Telephone connecting
block, or connector
553-AAA0588 Part of multi-pair cable
