Page 414 of 504 Appendix C: Meridian Modular Telephones add-on modules installation
553-3001-367 Standard 3.00 August 2005
16 NT2K models: Make sure that the ribbon cable is folded as shown in
Figure 80 on page 414 .
17 Make sure the red line on the ribbon cable lines up with the white dot
beside the connector pins (P2 on an NTZK M2008, J3 on an NT2K
M2008, and P4 on an M2616) on the motherboard.

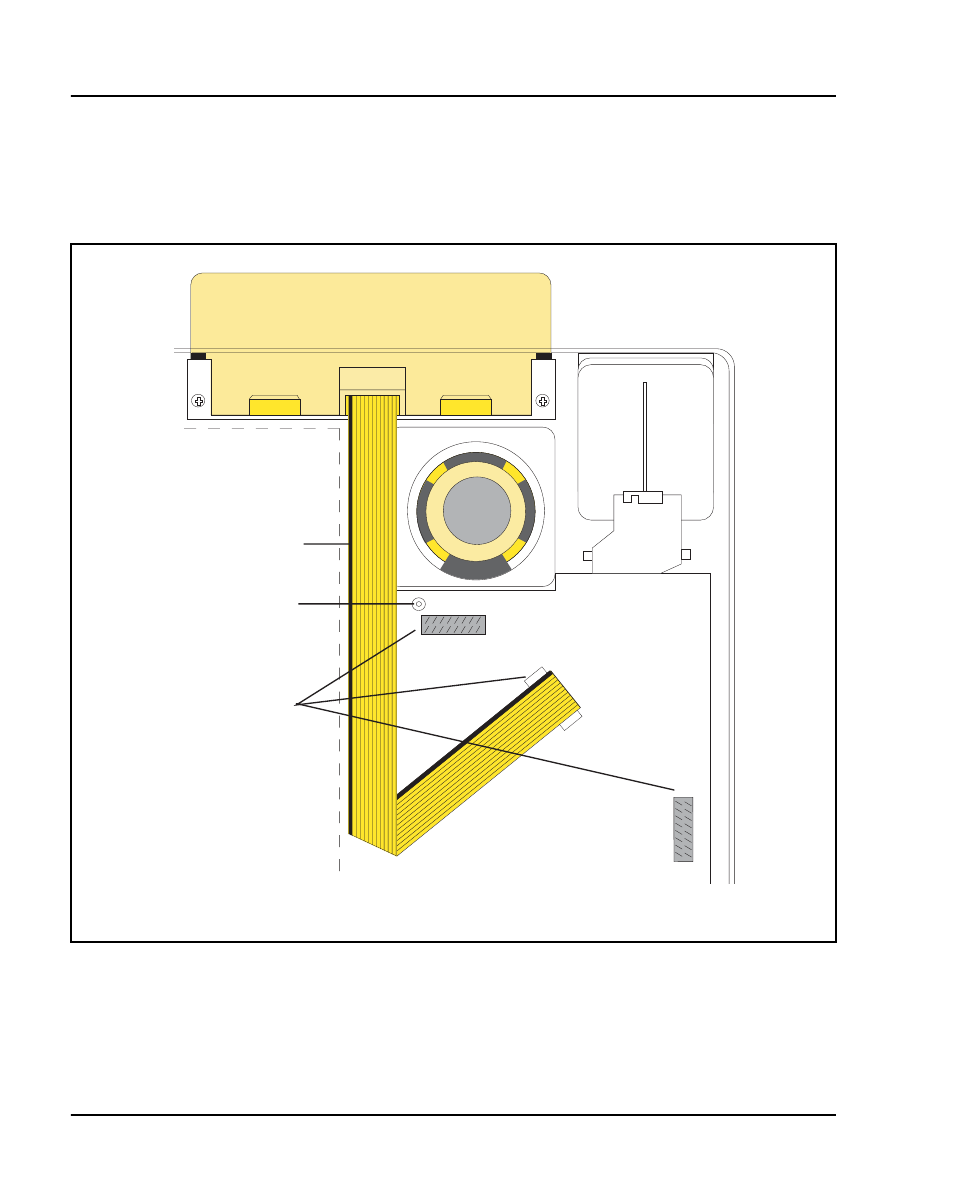

Figure 80
Connecting the Display Module Ribbon Cable, NT2K model
. . . . . . . .
. . . . . . . .
553-AAA0646
Colored strip = Pin 1
Screwpost
Pin 1
. . . . . . . . . . . . . . . .
P2 M2008 only
P4 M2616 only
