Connect the rj-21x cable to the patch panel – Paradyne Jetstream CPX-1000 User Manual
Page 93
February 2003
3-29
1000-A2-GN22-00
3. Installing the CPX-1000
Connect the RJ-21X cable to the patch panel:
Step 1
Connect the RJ-21X jack to the RJ-21X port on the back of the
12-port T1 transition card.
Step 2
Punch down each T1 circuit on the back of the RJ-48C patch panel.
0488

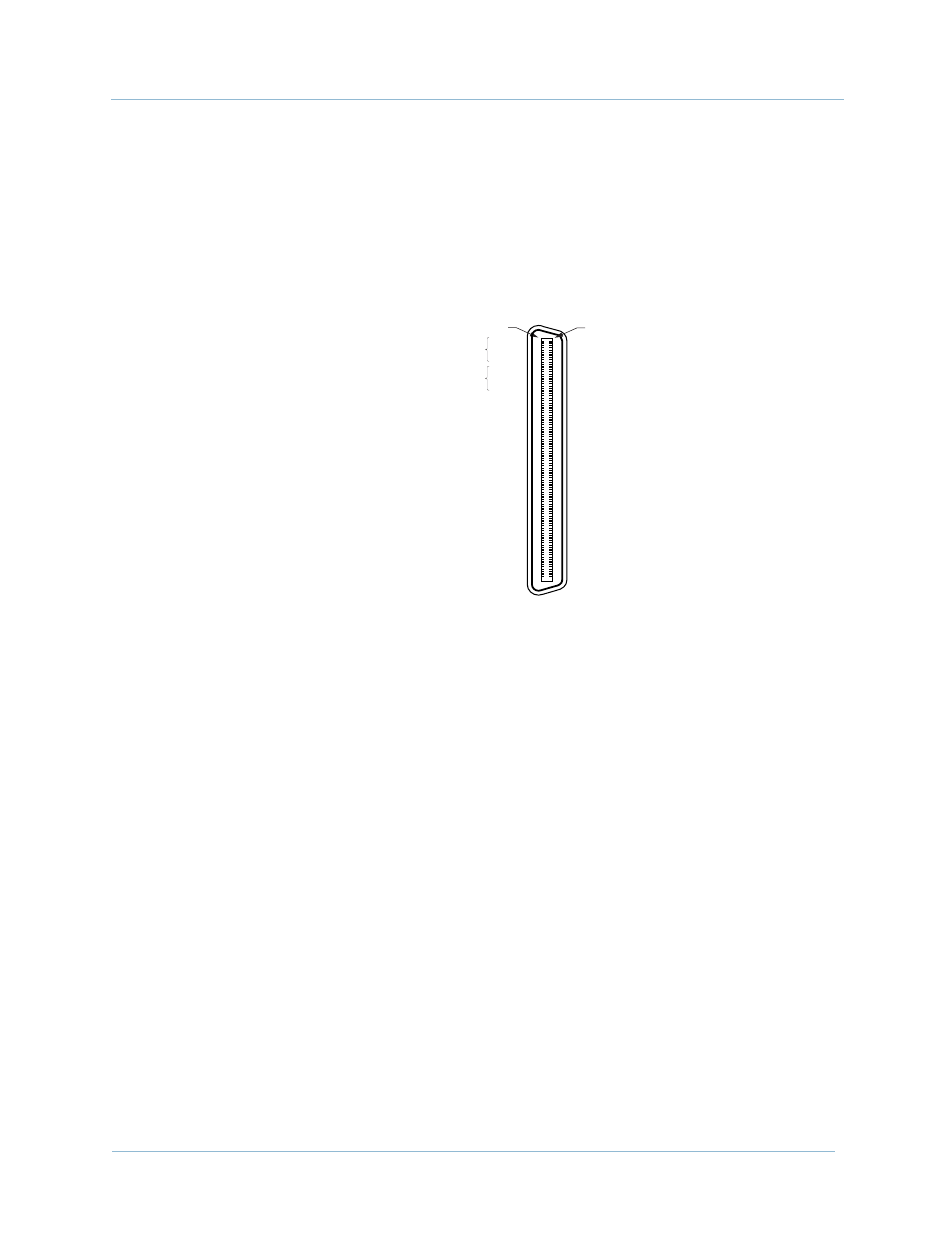

RJ-21X Port Pin Specifications
Tip pins 1
through 25
Ring pins 26
through 50
T1 circuit #1
Tx1
Rx1
Tx1
Rx1
T1 circuit #2
Tx2
Rx2
Tx2
Rx2
