5. Repair Procedures 1000-A2-GN22-00
5-6 February 2003
Step 5 Pull the Power Distribution Panel straight out of the chassis.

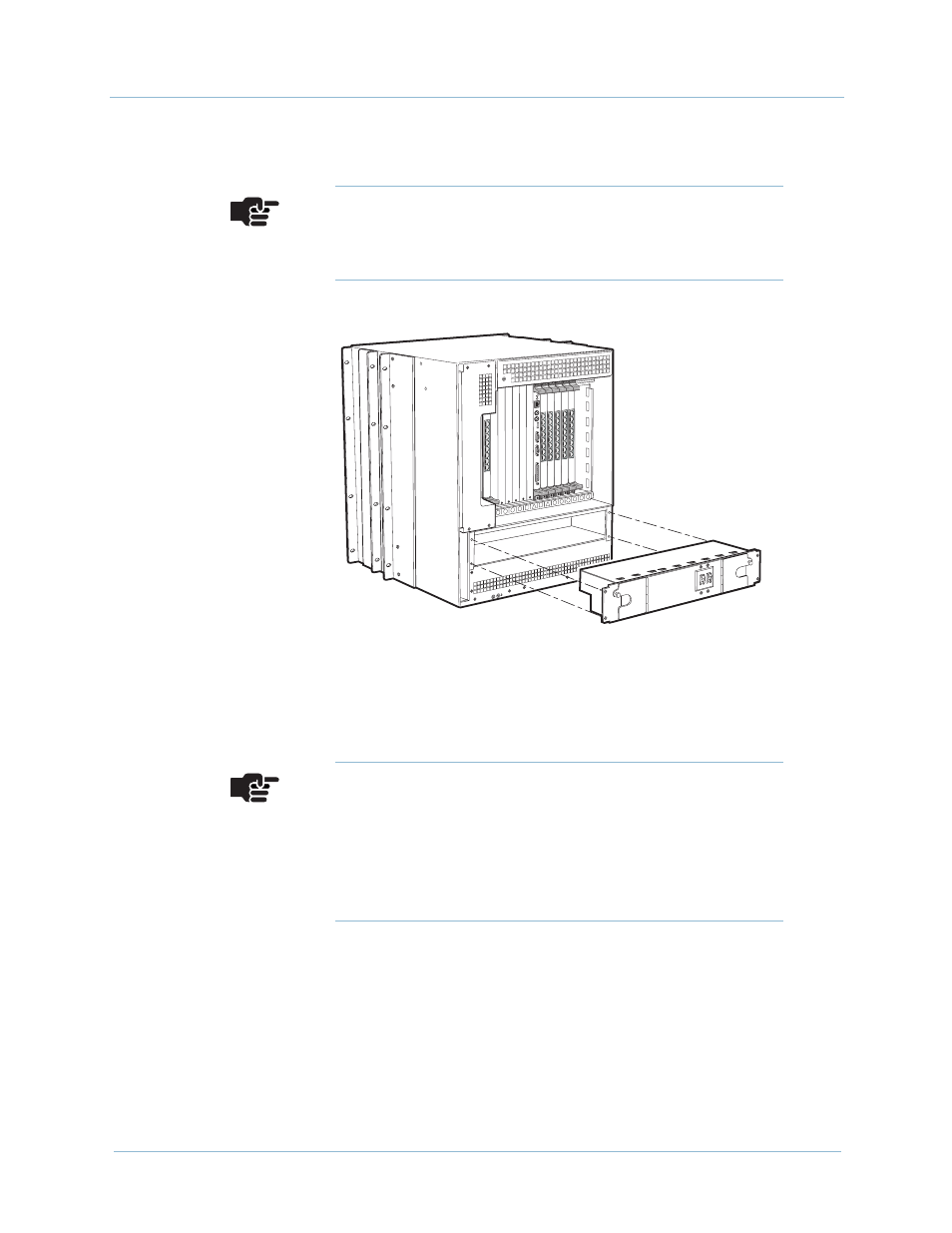

Figure 5–3. Power Distribution Panel Removal
Installing Power
Distribution Panel To install the power distribution panel:
Step 1 Insert the Power Distribution Panel straight into the chassis.
Ensure that the panel’s connectors are aligned with the power
supply connectors and that they seat firmly.
Note
You may need to pull on the captive screws to move the
panel out enough to grasp by the side edges.
14 13 12 11
6 7 8 9 10
5 4 3 2 1
0215a
Power
Distribution
Panel
Notes
When replacing a DC Power Distribution Panel, replace
it with the same type.
You do not need to remove the power supplies when
installing a Power Distribution Panel, although backing
the power supplies out slightly can facilitate installation.
