DC Power
Distribution
Panel
The DC power distribution panel includes two DC terminal blocks
for connecting to redundant
−48 Vdc input power supply (plant
battery) and return branch circuits. An equipment power switch
with a resettable circuit breaker provides a local control point for
equipment power.
Input power circuits are wired so that the power supplies provide
redundancy even when power supply A or B fails. The Power
Distribution Unit (PDU) provides power from input power A to
power supplies 1 and 2; input power B supplies power to power
supplies 2 and 3. Thus, if either input power source fails, two
power supplies are still functioning to retain power supply
redundancy. Even if one power supply fails, the system may still
perform under this stressed environment until the power supply
and/or input power are restored.

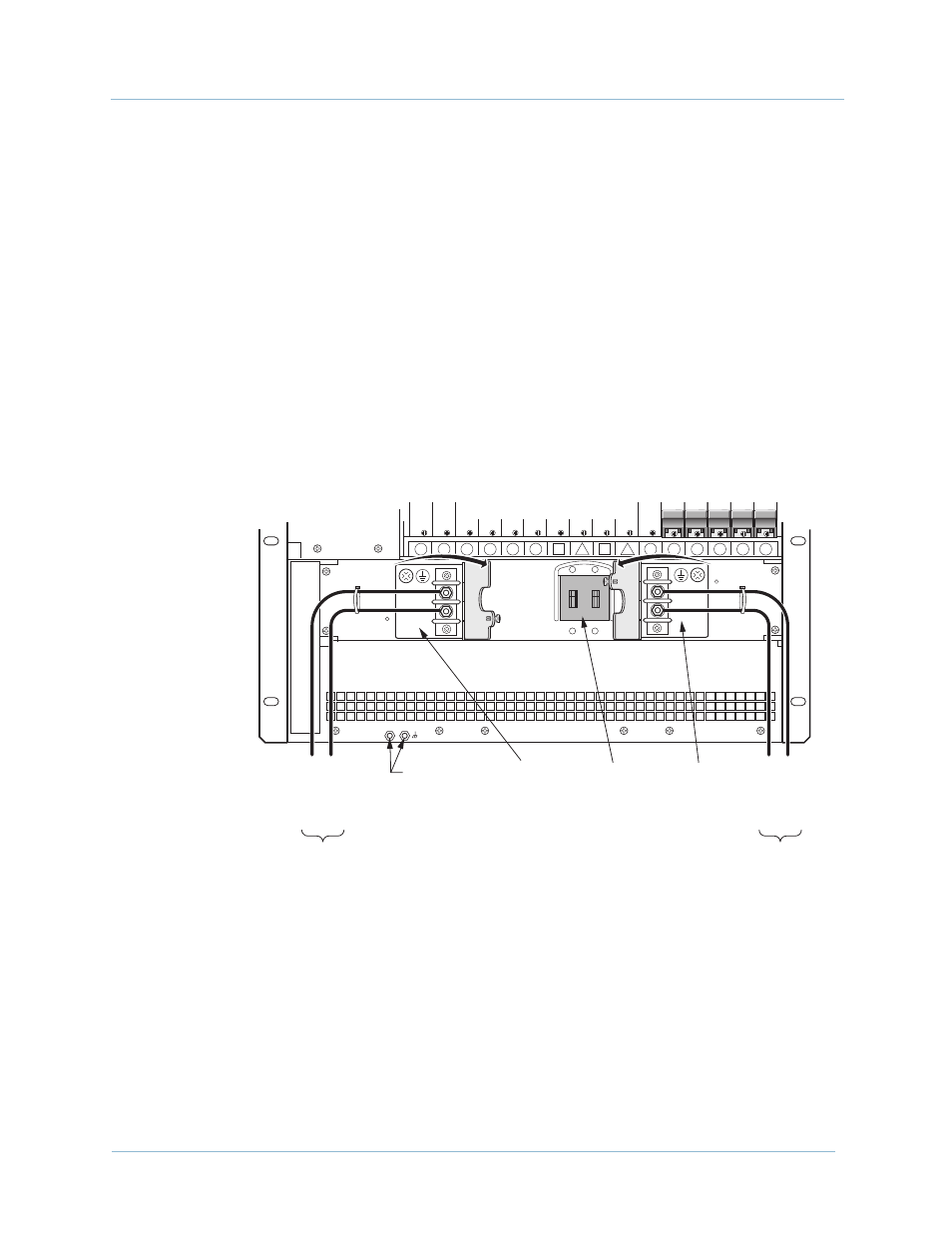

Figure 2–21. Power Distribution Panel
0384
16 15 14 13 12 11 7 9 6 8 10 5 4 3 2 1
DC -48V
DC -48V
RTN
DC -48V
DC -48V
RTN
to/from
plant battery "A"
-48V R
T
N
-48V
to/from
plant battery "B"
-48V -48V R
T
N
plant
battery A
barrier strip
frame
ground
points
circuit
breaker
plant
battery B
barrier strip
Open Protective Guards
