3. Installing the CPX-1000

1000-A2-GN22-00

3-22

February 2003

Installing
Additional Cards

To install cards that are not yet installed in the CPX:

Step 1

Put on an antistatic wrist strap, and plug the other end of that strap
into the ESD ground jack in front (or back) of the CPX shelf.

Step 2

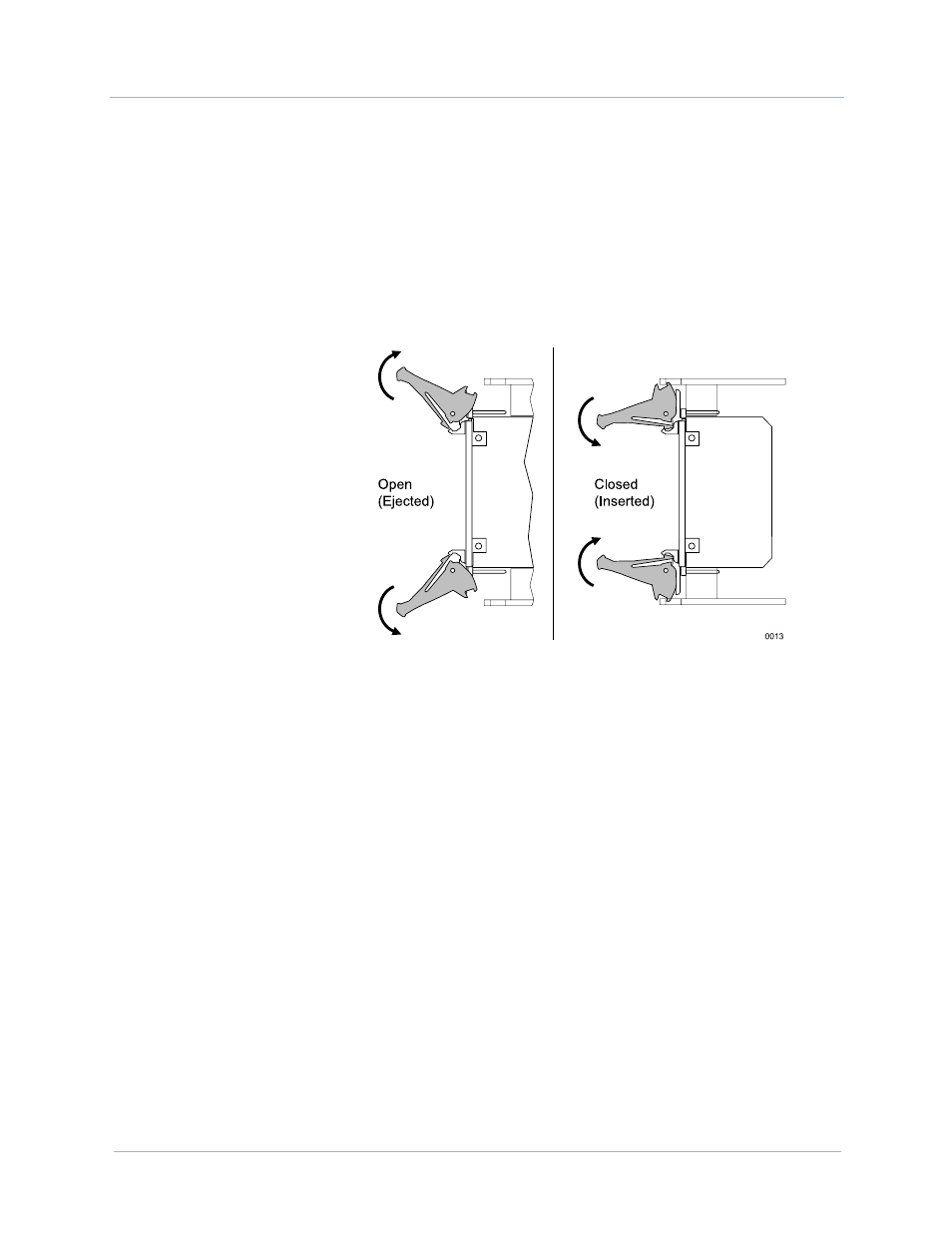

Slide each module into the cage slot until its ejector handles engage
the retention bars at the top and bottom of the CPX.

Step 3

Tighten the top and bottom screws of the module using a Phillips
screwdriver to secure it in place.

Step 4

Install the inter-module cables, where required.
