3. Installing the CPX-1000
1000-A2-GN22-00
3-6
February 2003
Electro-Static Caution
The CPX circuit cards can be damaged by static electricity that
builds up on work surfaces and on your body. Static is produced by
the everyday movement of your body and is released as an Electro-
Static Discharge (ESD) when you touch an object. Observe the
following precautions whenever you are working with the CPX.
Always wear a grounded wrist strap to prevent ESD. ESD can
damage the CPX card assemblies and solid state components in the
CPX. Attach the wrist strap to the grounding jack located on the
front or rear of the equipment.
Handle all module cards by the face plate, extraction ears, or
assembly edges. Never touch the components, conductors, or
connector pins.
Always store and transport cards in antistatic packaging. If you
remove a card from its slot, always put it into its antistatic package
immediately.
Keep static generating materials such as food wrappers, plastics,
and polystyrene foam containers away from card assemblies.
0066

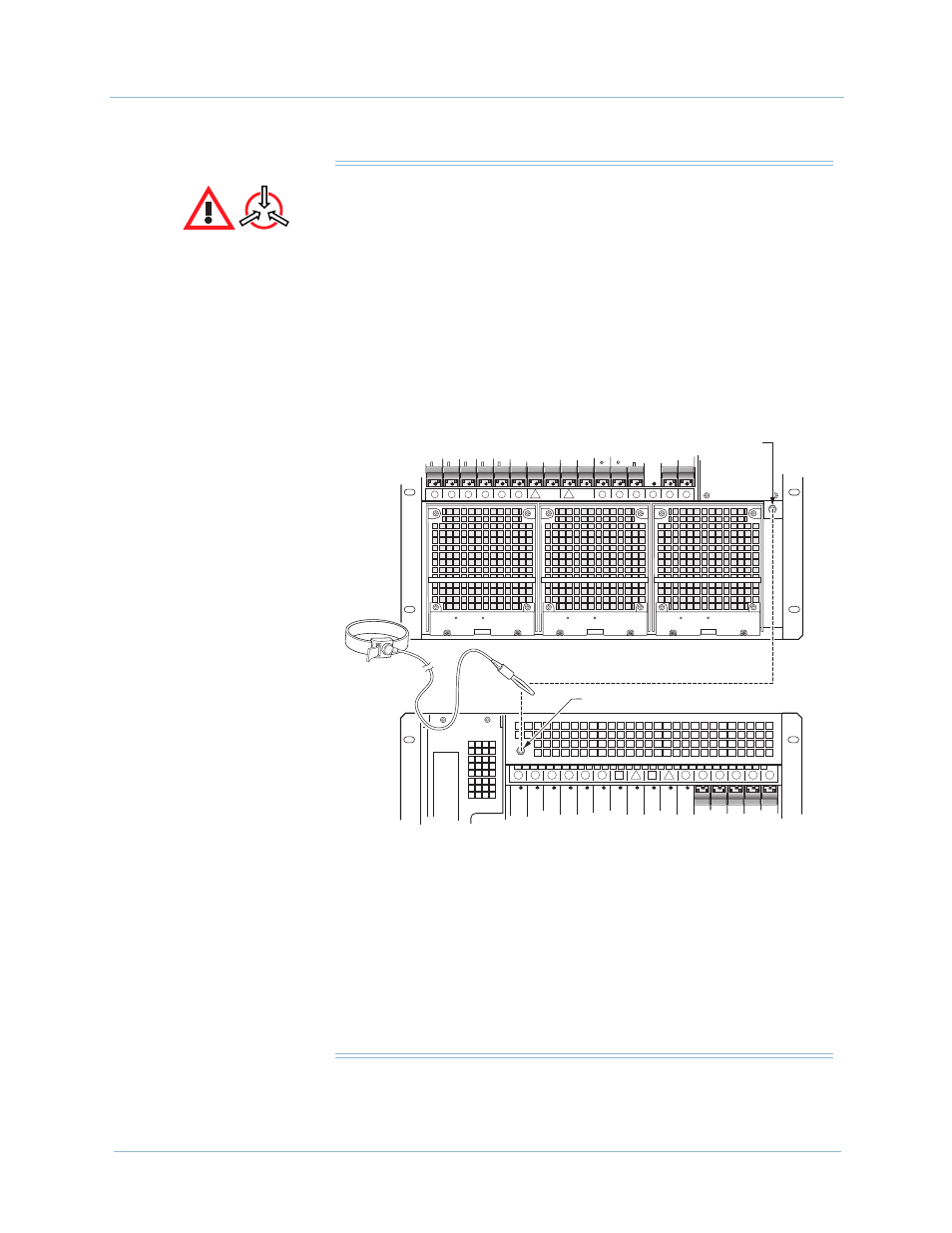

ESD Wrist Strap Grounding Jack
ESD Wrist Strap Grounding Jack
16
15
14
13
12
11
7
9
6
8
10
5
4
3
2
1
ESD
BONDING
POINT
OUT OF
SERVICE
IN
SERVICE
OUT OF
SERVICE
IN
SERVICE
OUT OF
SERVICE
IN
SERVICE
1
2
3
4
5
6
7
9
11
12
13
14
15
16
3
2
1
Shelf
Front
Shelf
Rear
