3. Installing the CPX-1000 1000-A2-GN22-00
3-28 February 2003
Attaching Cables
to 12-Port T1
Modules
The 12-port T1 card provides an RJ-21X port to which you connect
a customer-supplied 25-pair cable (Paradyne part number 035-
0446-1030) with an RJ-21X jack at one end. The other end is
connected to a punchdown block to separate each T1 circuit on the
RJ-48C patch panel, or directly to the Class 5 switch.
Steps for connecting the RJ-21X cable to a patch panel are
described below. For completing the connection of the T1 circuits
from the Class 5 switch to the patch panel, see Attaching Cables to
Octal T1 Modules, above.
Cabling requirements for your installation may be different.
16 15 14 13 12 11
7
9
6
8
10
5 4 3 2 1
16 15 14 13 12 11
7 9
6 8
10
5 4 3 2 1
0188

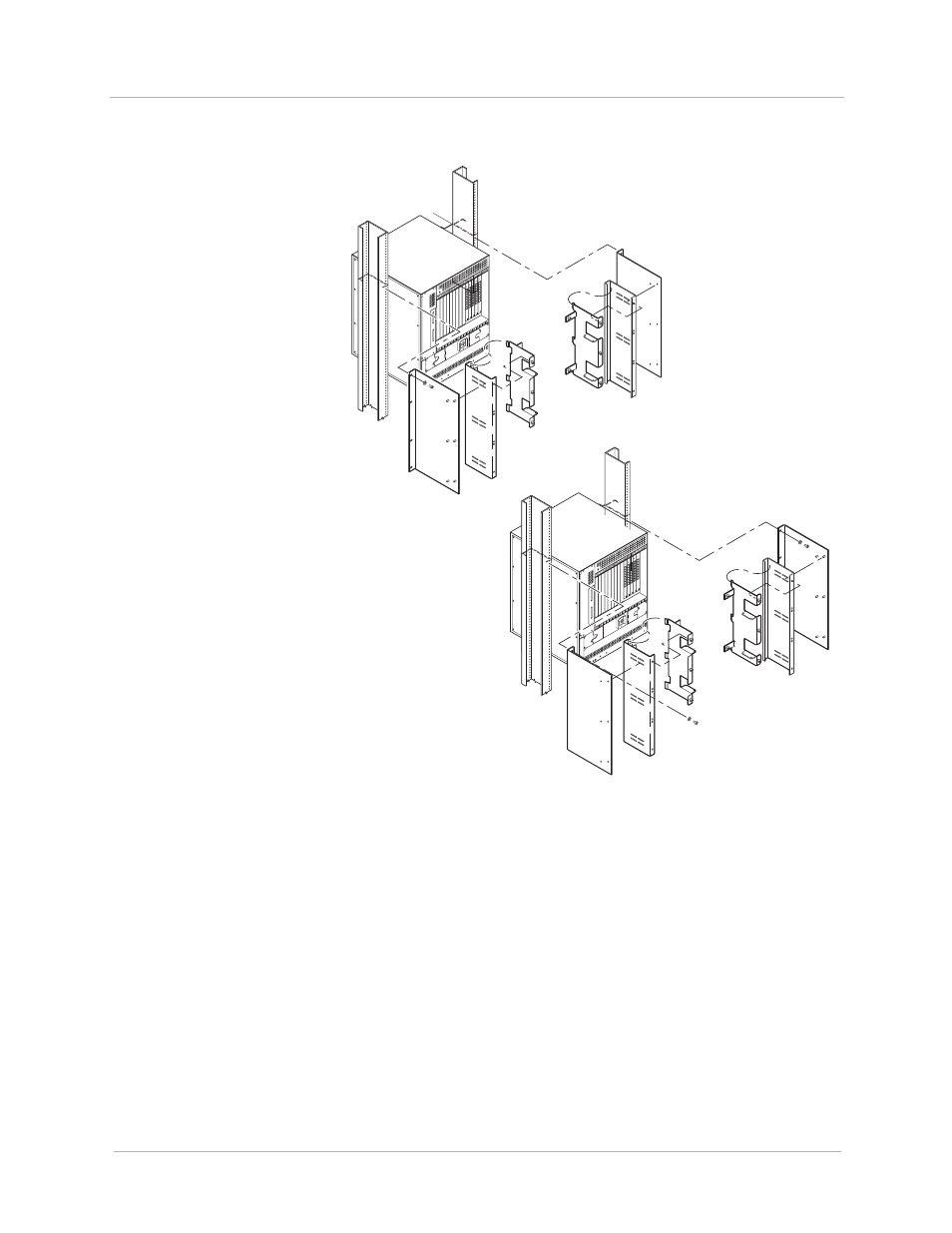

23" Rack
19" Rack
Mounting Ear
faces away from
shelf
Mounting Ear
faces in toward
shelf
16 15 14 13 12 11
7
9
6
8
10
5 4 3 2 1
16 15 14 13 12 11
7 9
6 8
10
5 4 3 2 1
