5. Repair Procedures

1000-A2-GN22-00

5-8

February 2003

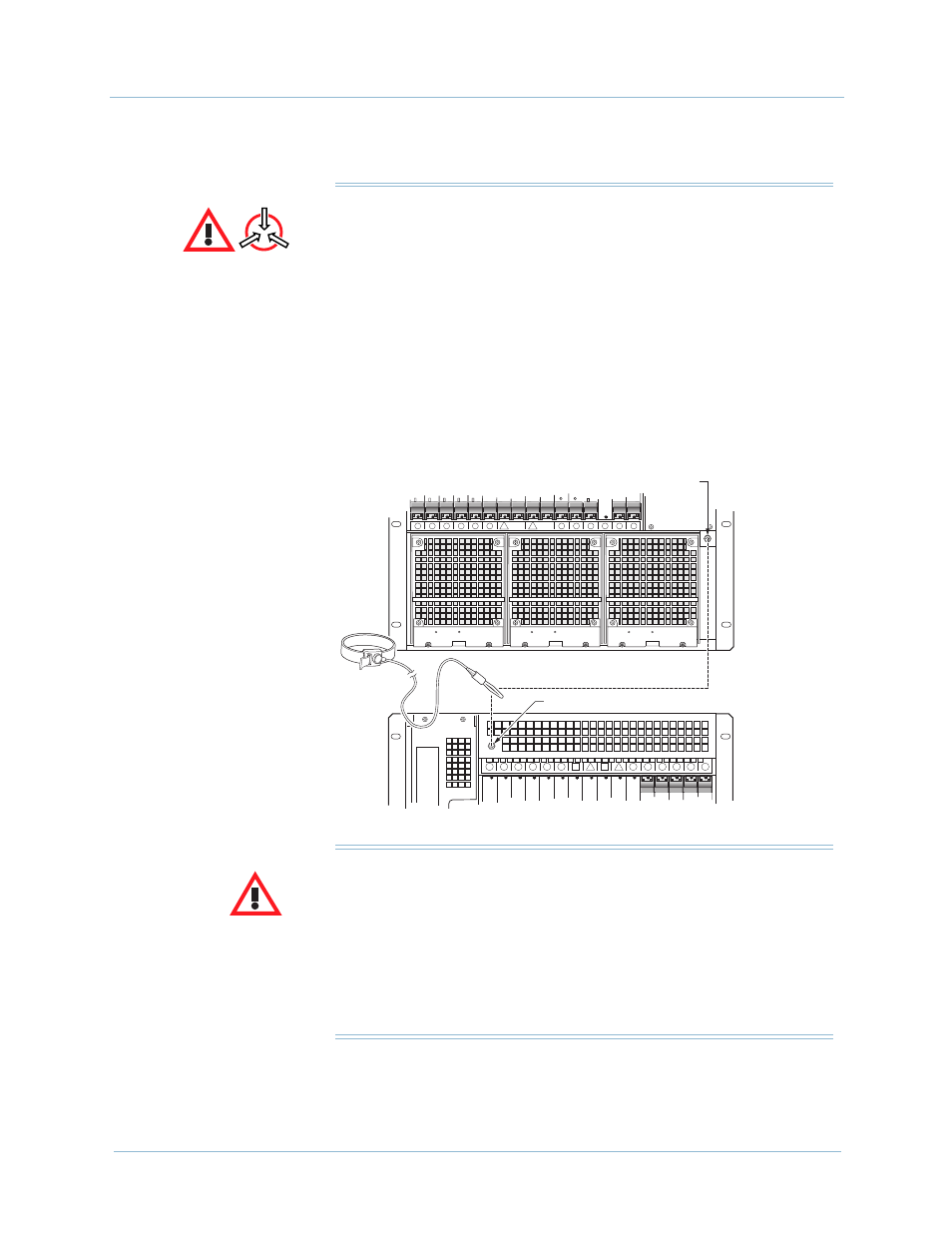

Electro-Static Caution

CPX circuit cards can be damaged by static electricity. Static is
produced by the everyday movement of your body and is released
as an Electro-Static Discharge (ESD) when you touch an object.
Observe these precautions whenever you work with the CPX:
Always wear a grounded wrist strap to prevent ESD. Be sure to
attach the wrist strap to the grounding jack located on the front or
rear of the equipment.

Warning

Handle circuit cards by the face plate, extraction ears, or assembly
edges. Never touch components, conductors, or connector pins.
Always store and transport cards in antistatic packaging. When
removing a card, immediate put it into its antistatic package.
Keep static generating materials such as food wrappers, plastics,
and polystyrene foam containers away from card assemblies.

0066

ESD Wrist Strap Grounding Jack

ESD Wrist Strap Grounding Jack

16

15

14

13

12

11

7

9

6

8

10

5

4

3

2

1

ESD

BONDING

POINT

OUT OF
SERVICE

IN
SERVICE

OUT OF
SERVICE

IN
SERVICE

OUT OF
SERVICE

IN
SERVICE

1

2

3

4

5

6

7

9

11

12

13

14

15

16

3

2

1

Shelf
Front

Shelf
Rear
