AS-Interface
System components
Introduction
6
■
Overview
System components
Many system components are available to implement communi-
cations. The basic components of a system installation are:
• Master interfaces for central control units such as SIMATIC S5
and SIMATIC S7, distributed I/Os ET 200
®
M/X,
• AS-Interface shaped cables
• Network components such as repeaters/extenders
• The power supply unit for supplying power to the slaves,
modules for connecting standard sensors/actuators
• Actuators and sensors with integrated ASIC slave
• Fail-safe modules for transmission of secure data through
AS-Interface,
• Address programming device for setting the slave address.

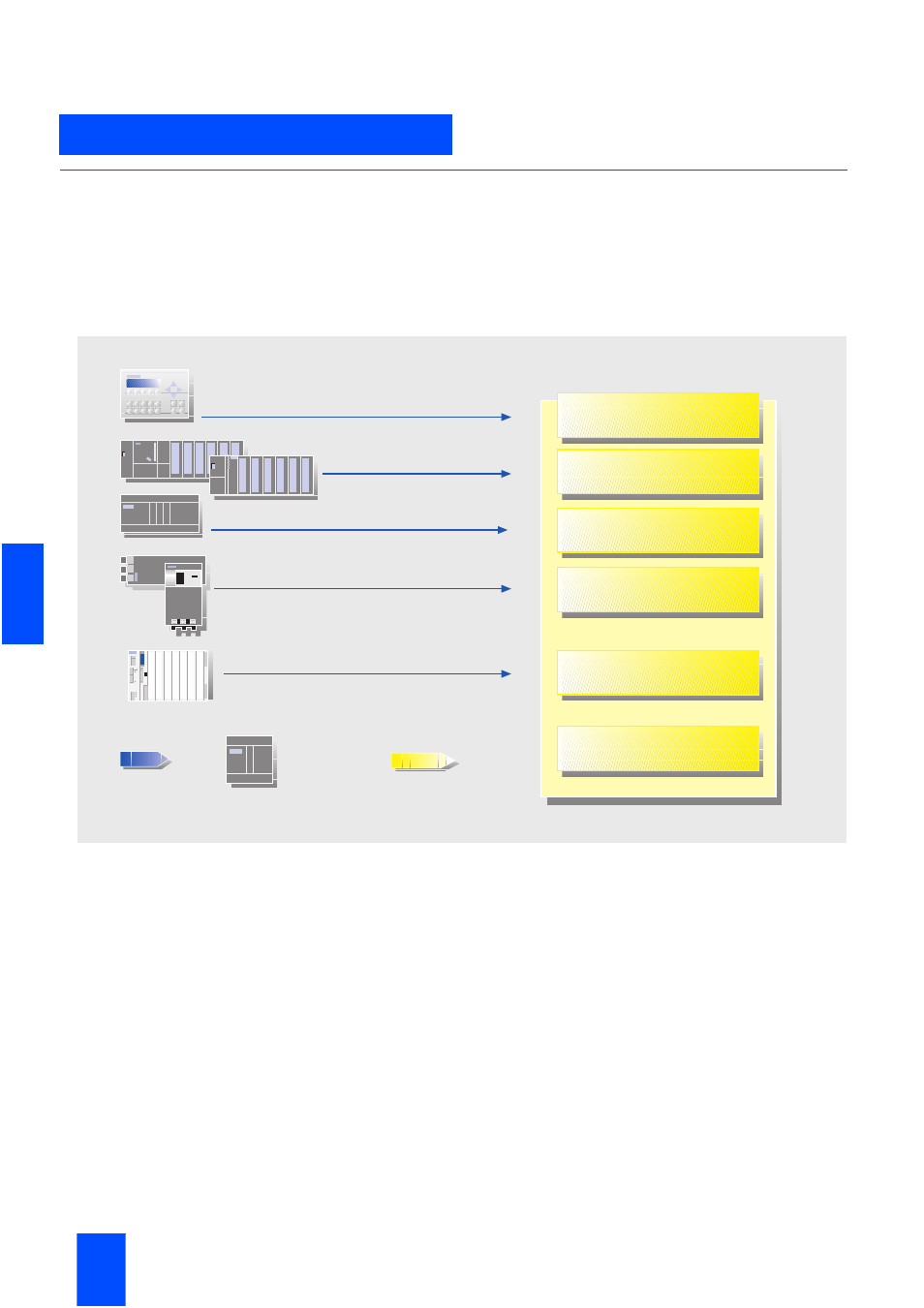

AS-Interface master for SIMATIC
0 1
Integrated interface
CP 343-2
CP 243-2
CP 142-2
CP 2430
C7-621 ASi
S5-115U to 155U
ET 200M
S7-200
ET 200X
S7-300
G_IK10_XX_20009
DP/AS-Interface Link 20E
Links
CP 343-2 P
