Advanced Configuration Silex Page 47
Part Number 140-00192-100
2. Verify the settings, as defined in Table 18.
Table 18 TCP/IP Settings
Parameter Setting
IP Address
Resolution Sets the exchanges among network interfaces connected to an
Ethernet media segment and maps IP address to Ethernet
addresses, Media Access Control (MAC) addresses and hardware
addresses.
The Set Permanent radio button sets the IP address permanent.
The IP address must follow the format XXX.XXX.XXX.XXX, where
each XXX is a number between 0 and 255.
The Use Network Protocol Select radio button determines which IP
address at power up.
Subnet Mask Sets the address of the subnet mask
The subnet mask must follow the format XXX.XXX.XXX.XXX,
where each XXX is a number between 0 and 255. The default
subnet mask is 0.0.0.0. The server interprets a subnet mask of
0.0.0.0 or 255.255.255.255 as no subnet mask specified.
Default Gateway Sets the default gateway, if your network is attached to other
networks
WINS Server
Sets the Windows Internet Naming Service (WINS) address
Values are set by user.
Use DHCP to
Locate WINS
Server Uses the automatic location feature in ExtendView to locate the
WINS servers.
3. To change the Telnet/HTTP password, click Telnet/HTTP Password. The Change Password window
displays.

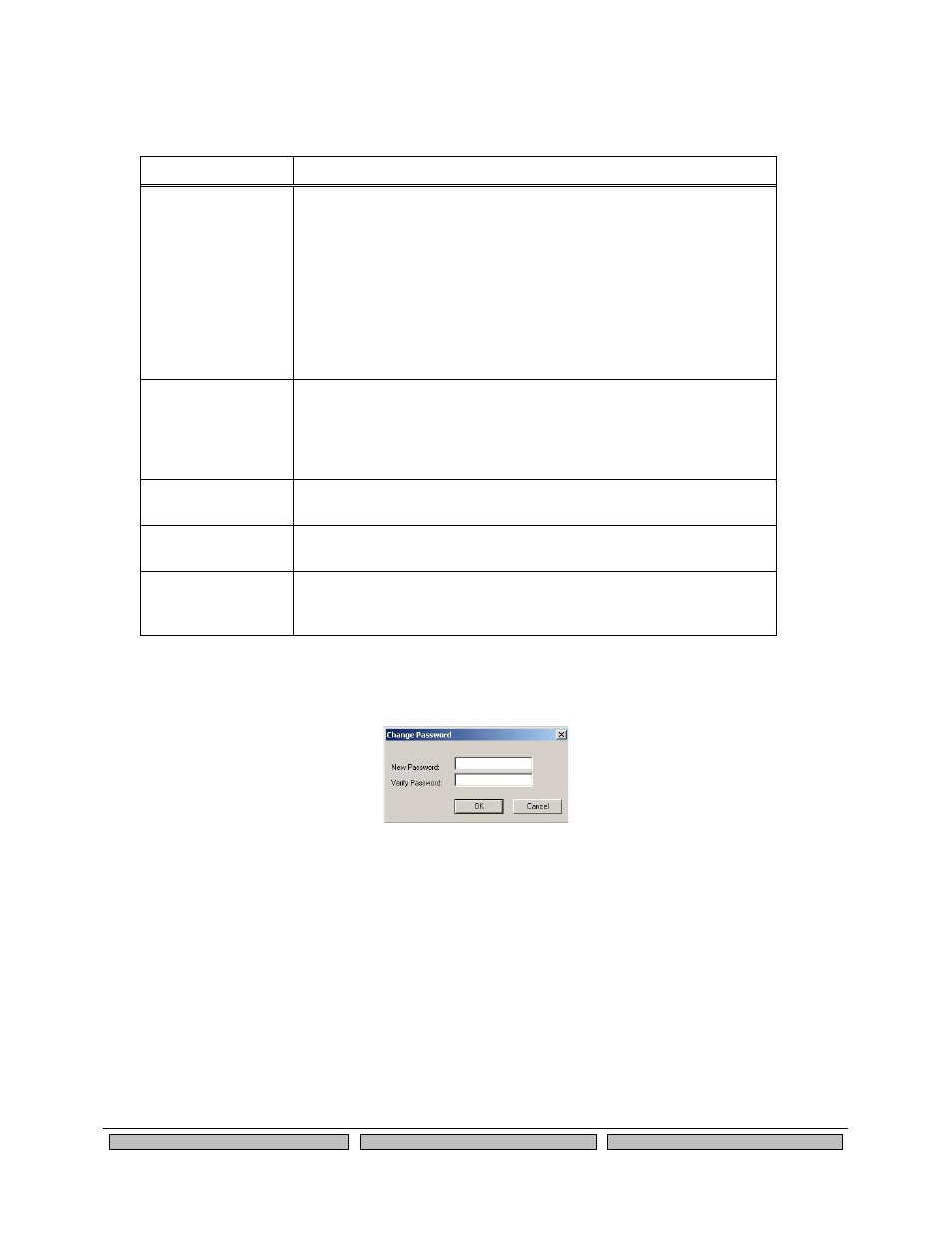

Figure 13 Change Password Window
Type the new password in the New Password field, then in the Verify Password field.
Click OK to change the password or click Cancel to exit.
4. Click Advanced TCP/IP. The Advanced TCP/IP Configuration window displays.
