Page 46 Silex Advanced Configuration
Part Number 140-00192-100
Parameter Description Settings Default Setting
Econn ECable connection attempt time 1-255 seconds 30 seconds
Ecport ECable destination TCP port number Set by user N/A
Eclport ECable destination local IP port
number (required for E-Cable UDP
mode only) Set by user N/A
Ectmmsec Cable connection time resolution Enable, Disable Disable
Ecudp ECable UDP mode Enable, Disable Disable
Restoring Factory Default Settings
The factory default settings can be restored at any time. If you are using the SX-560 Evaluation
Daughtercard, hold down the test button for more than five seconds. If you are not using the evaluation
board, short GPIO7 on the OEM header to ground (4.7 K-ohm pull-up resistor connected to +3.3VDC) for
more than five seconds.
Modifying TCP/IP Settings
You can modify the TCP/IP settings using ExtendView, the web browser interface or the SX-560 module’s
internal configuration console.
To modify TCP/IP settings:
1. Using ExtendView, click the TCP/IP tab. The TCP/IP window displays.

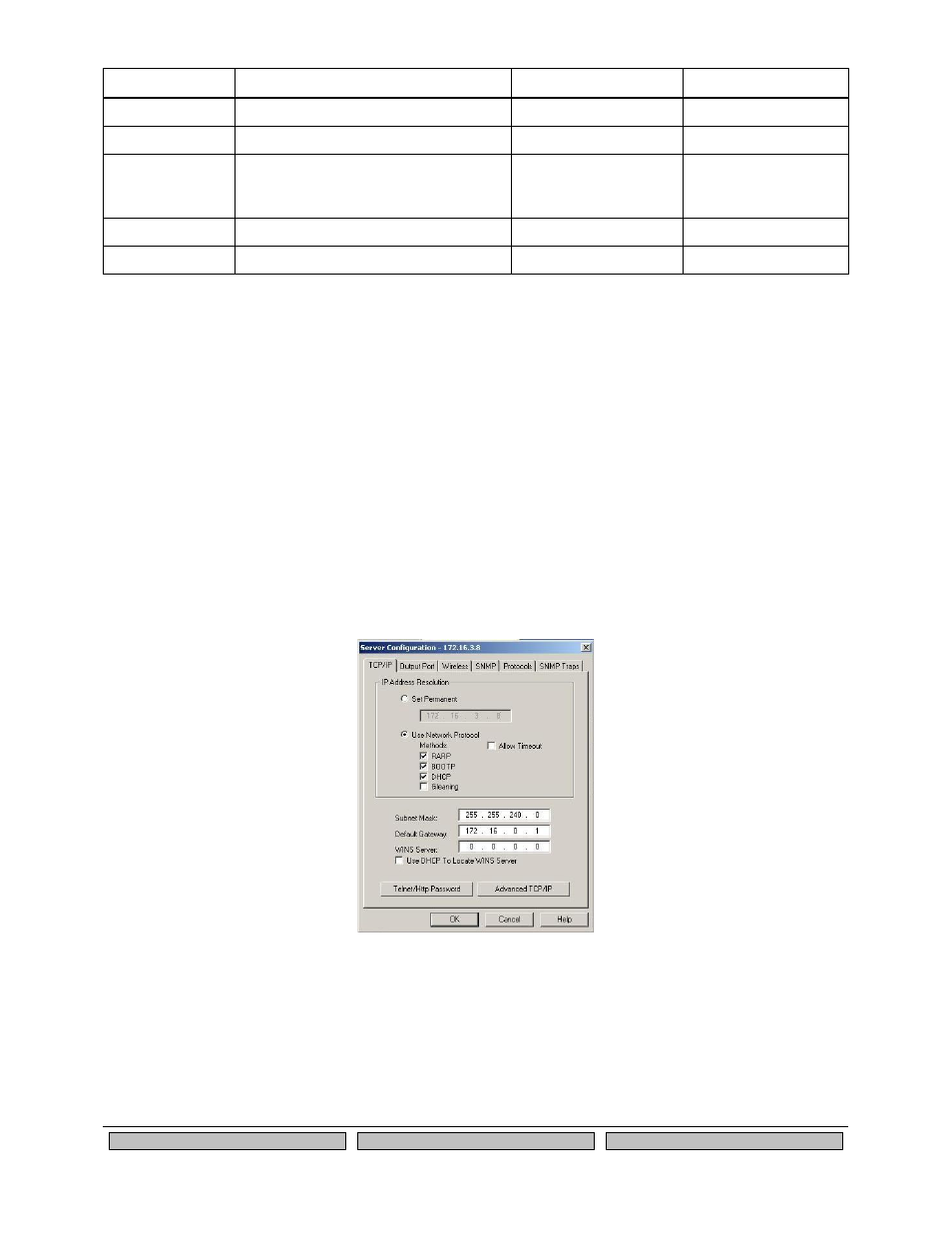

Figure 12 TCP/IP Window
