Page 6 silex Installing the Evaluation Daughtercard
Part Number 140-00192-100
The Evaluation Daughtercard makes it easy to connect to the SX-560 for test and development by
providing the following:
• Three (3) 9-pin connectors and one (1) 10-pin header for connecting the SX-560 serial ports
• One (1) 26-pin header for connecting GPIOs, SPI, power, and ground
• One (1) RJ45 Ethernet connector
• One power jack
• 3 LEDs for displaying the power and network status
• 7 LEDs for monitoring the GPIO signals
• One (1) Test Button for printing configuration data and resetting the SX-560 to factory defaults
•
One (1) 18-pin header for selecting GPIOs as modem controls
• Two (2) built-in bead antennas
• Power supply and mounting hardware
• Documentation and software on CD-ROM

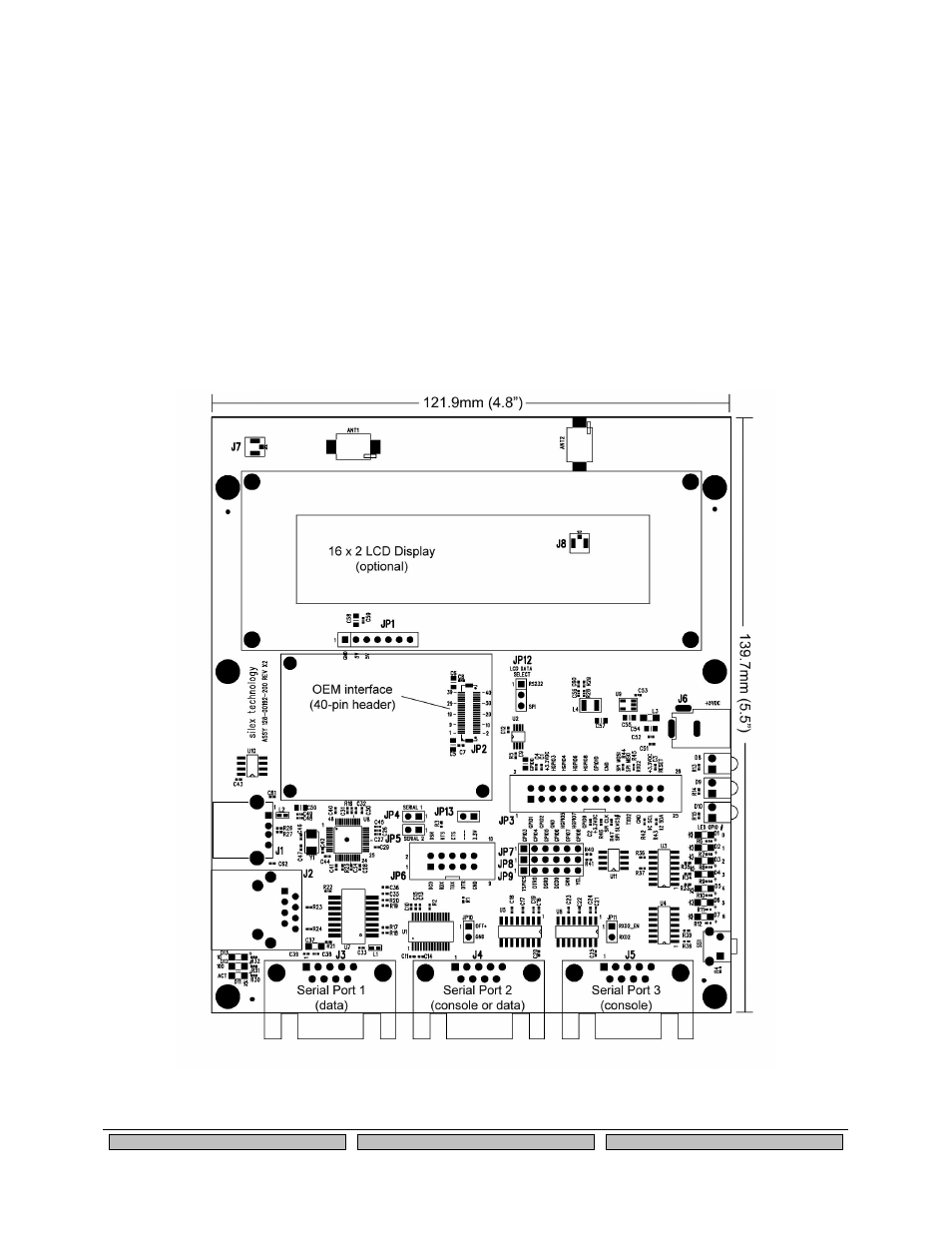

The locations of the major Evaluation Daughtercard connectors and headers are shown in the diagram
below.
