Page 22 Silex Using the SX-560
Part Number 140-00192-100
Using the ExtendView Utility to Configure the SX-560 (Ethernet
Connection)
The ExtendView Utility is the easiest way to initially configure the SX-560 from a Windows PC because it
allows you to directly set the IP address into an unconfigured SX-560 if you are using the SX-560-600
evaluation daughtercard Ethernet port, and it allows you to view the IP addresses of all of the SX-560s on
your network. It has limited capabilities for configuring 802.1X authentication, but it can be used in
conjunction with either the internal web pages or the internal command console for complete
configuration capabilities.
ExtendView is a component of the CD-ROM that is included with the Evaluation Daughtercard, or it can
be downloaded from the Silex website. To install ExtendView, simply follow the on-screen installation
instructions and then restart your computer when the installation procedure is complete. The SX-560
configuration procedure is as follows (please note that the screens may be slightly different than shown,
depending on the SX-560 model and the firmware and software revision levels).

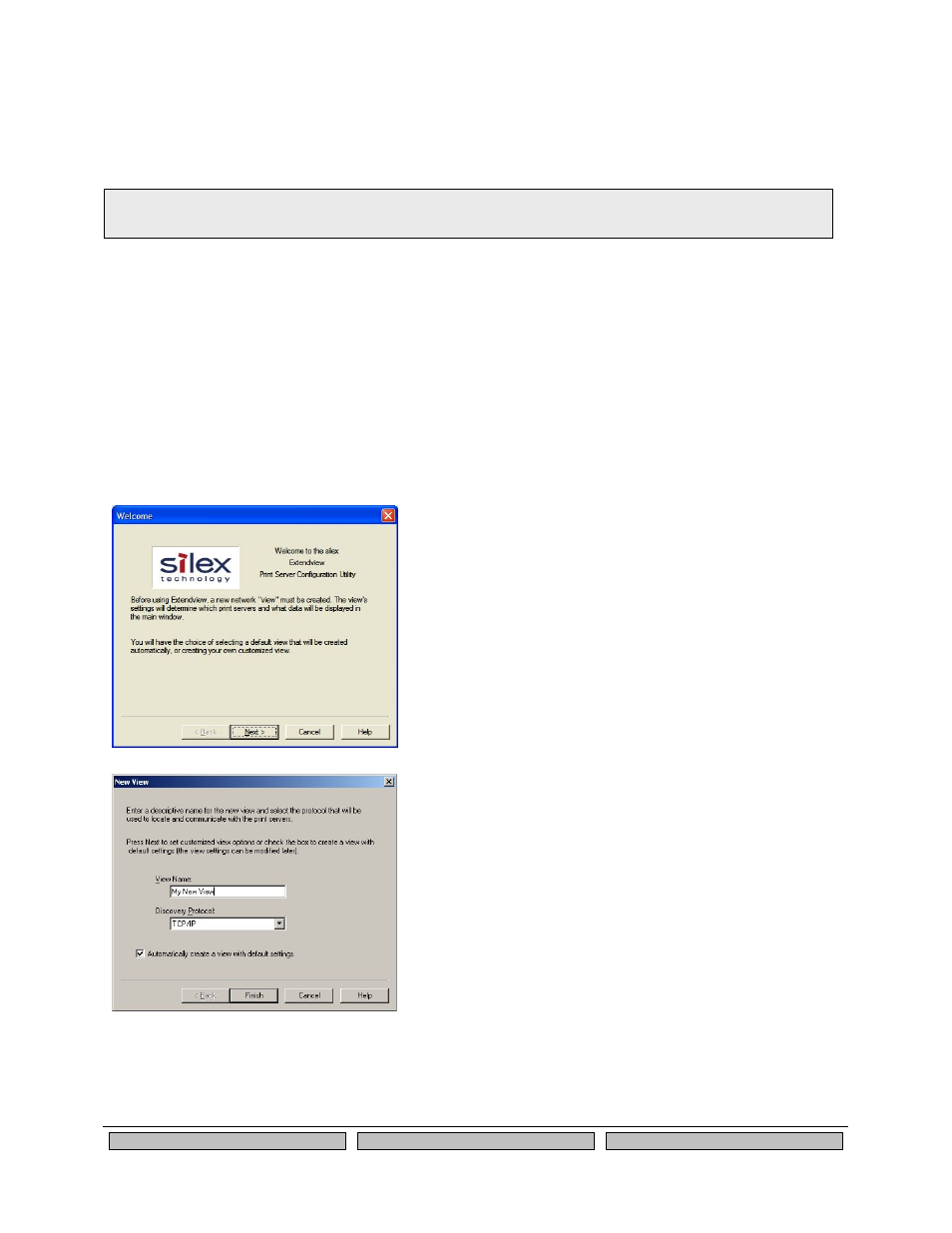

1. Start the ExtendView Utility by clicking on
Start, Programs, silex technology,
ExtendView, and then ExtendView.
2. When the Welcome screen appears, click on
Next, choose any name for your View Name,
select Automatically create a view with
default settings (or configure the view to
your preferences), and then click Finish.
NOTE: Skip this section if you do not have a Windows PC or if you prefer to use the internal web pages or internal
command console for configuration.
