CiM-550 IP Enabled Satellite Modem
Rev. 2
CLI and Telnet Interface
CD/CIM550.IOM
149
11.2.5.1 T
RANSMIT
M
ODEM
C
ONFIGURATION
P
AGE

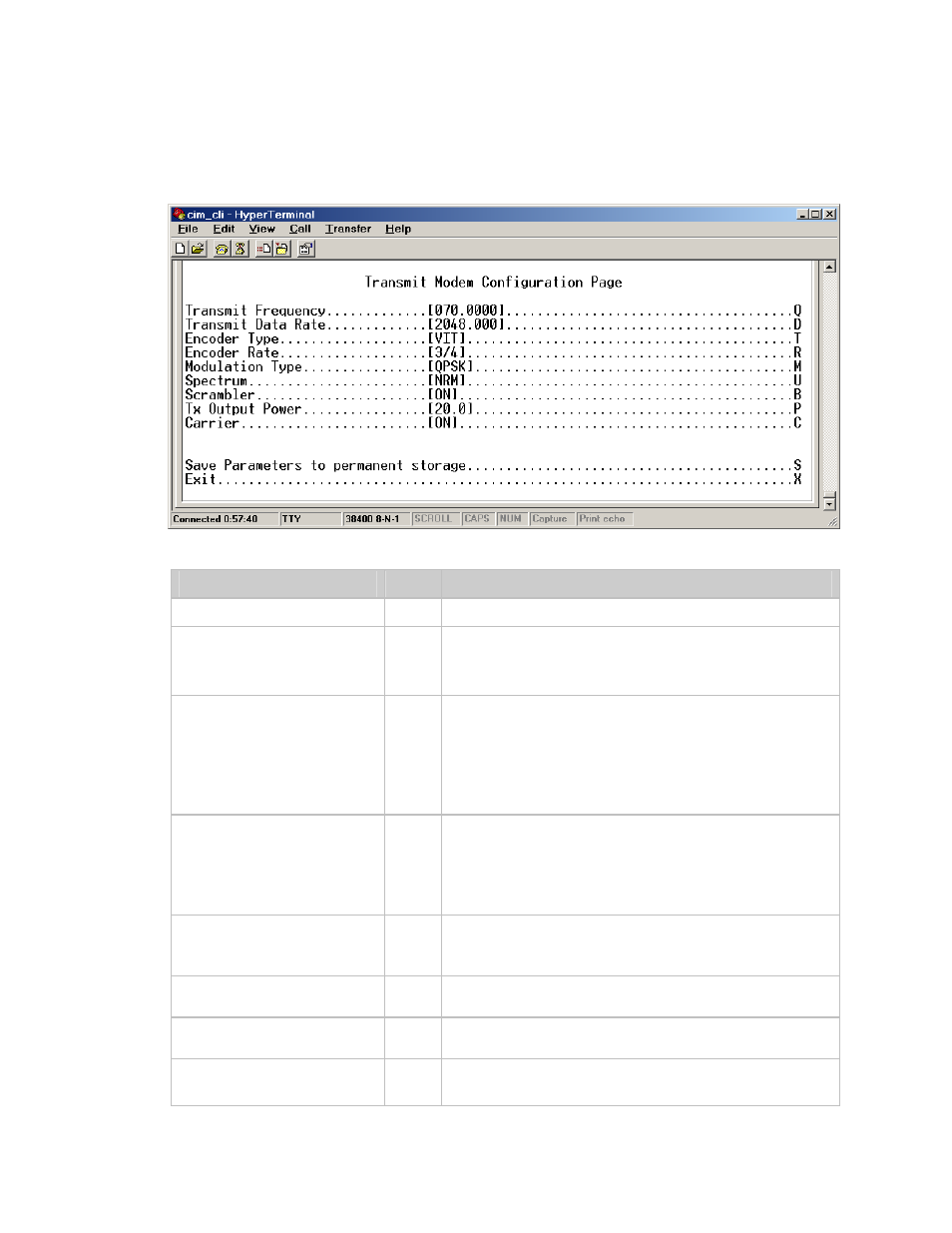

The Transmit Modem Configuration page is activated from the Modem Parameters page.
The Transmit Modem Configuration page contains the following options/fields:
Menu Options/Fields
Entry
Description
Transmit Frequency
Q
Valid ranges are from 52.0000 to 88.0000 MHz
Transmit Data Rate
D
The rate at which the Modem will send traffic over the
Satellite Interface.
Valid ranges are from 2.4000 to 2048.0000
Encoder Type
T
1 - NONE
2 - VIT
3 - TURBO_3/4_Q
4 - TURBO_B21/44
5 - TURBO_B5/16
6 - TURBO_3/4_OQ
Encoder Rate
R
1 - 1/2
2 - 3/4
3 - 7/8
4 - 21/44
5 - 5/16
Modulation Type
M
1 - BPSK
2 - QPSK
3 - OQPSK
Spectrum
U
1 - NRM
2 - INV
Scrambler
B
1 - OFF
2 - ON
Tx Output Power
(minus sign assumed)
P
Valid ranges are from 0.0 to 20.0 dBm
