111
Chapter 10.
Connector Pinouts
Data Connector 111
Alarms Connector 112
Remote Control Connector 113
Auxiliary Serial Connector 113
Console Port
25 Watts, 250 mA max
115 Volt operation - T1A fuses
230 Volt operation - T0.5A fuses
10
0 -
24
0~
50
/6
0 H
z
Receive IF
2001
RS232
RS 422
(EIA 530) V.35
Data Interface
Remote Control B
Alarms
IP Interface 10/100 BaseT
SN
Date
Aux Serial Remote Control A Transmit IF
COMTECH
EF DATA CORP
MADE IN THE USA
Console Port

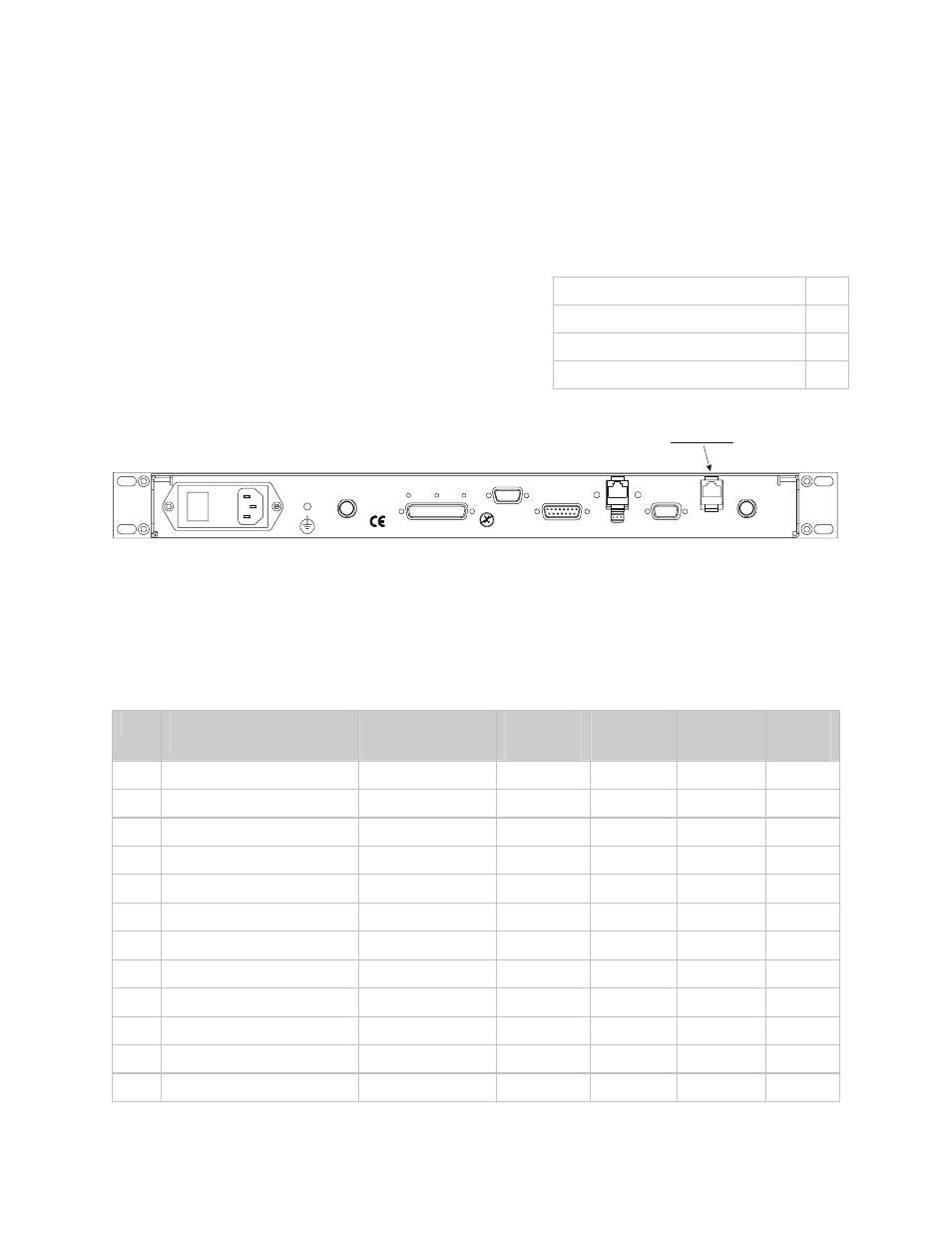

Figure 10-1. Rear Panel
10.1 D ATA C ONNECTOR - 25 P IN ‘D’ T YPE F EMALE
Table 10-1. Data Connector - 25 Pin ‘D’ Type Female
Pin Generic Signal
Description Direction EIA-422/
EIA 530
V.35 EIA-232 Circuit
No
1 Shield - Shield FG AN 101
2 Transmit Data A DTE to Modem SD A SD A BA 103
3 Receive Data A Modem to DTE RD A RD A BB 104
7 Signal Ground - SG SG AB 102
8 Receiver Ready A Modem to DTE RR A RLSD * CF 109
9 Receive Clock B Modem to DTE RT B SCR B - 115
10 Receiver Ready B Modem to DTE RR B - - 109
11 Transmit Clock B DTE to Modem TT B SCTE B - 113
12 Internal Transmit Clock B Modem to DTE ST B SCT B - 114
14 Transmit Data B DTE to Modem SD B SD B - 103
15 Internal Transmit Clock A Modem to DTE ST A SCT A DB 114
16 Receive Data B Modem to DTE RD B RD B - 104
