PRIMERGY BX600 S2 Basic Unit 95
Ethernet Switch Blades Installing a LAN Switch Blade

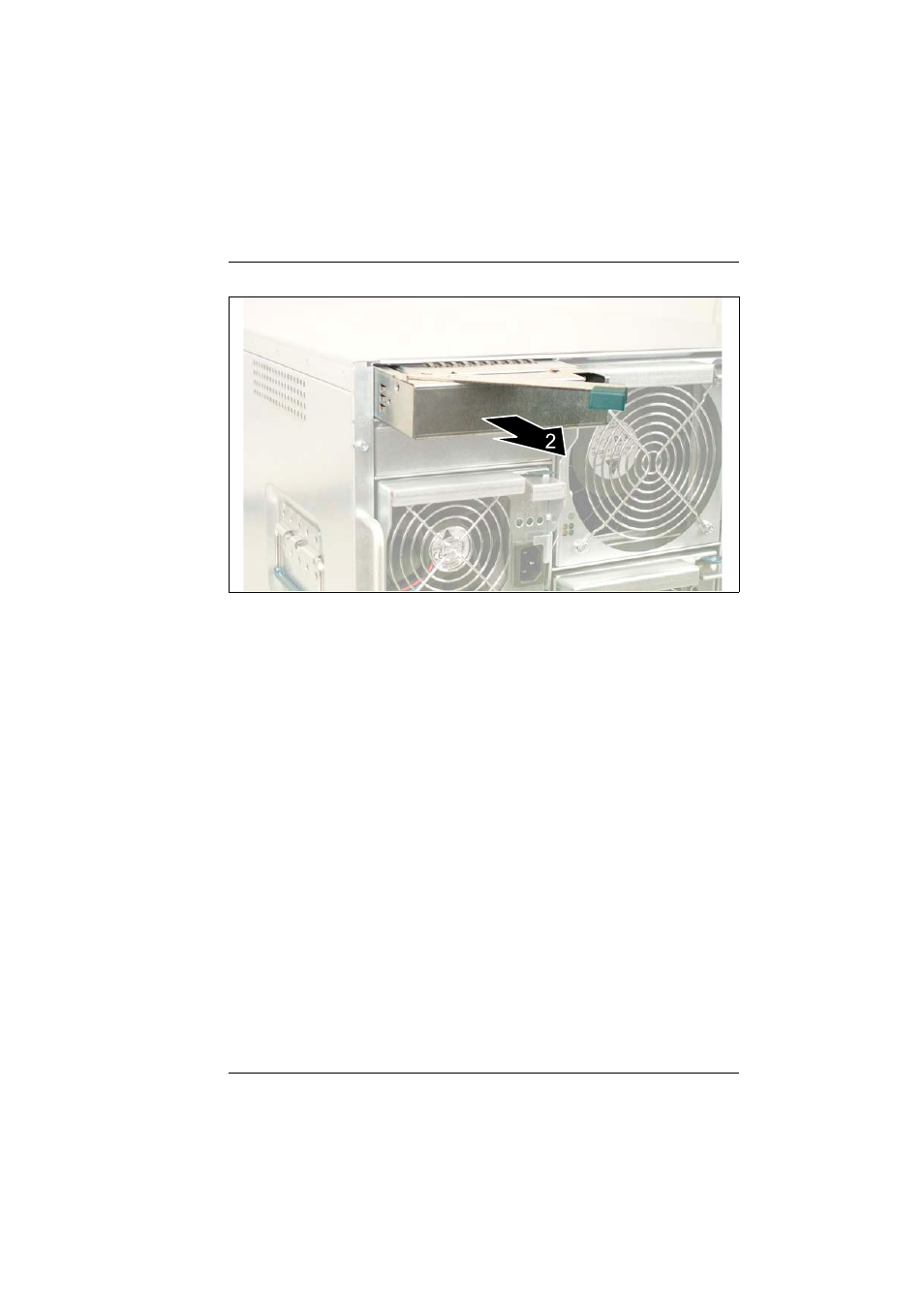

Figure 49: Removing the dummy module (a = green touch point)
Ê Remove the dummy module from the slot (2).
V
CAUTION!
Keep the dummy module for future use. If you remove the LAN switch
blade and do not replace it with a new one, you must reinstall the dummy
module.
Installation is the same as for the LAN switch blade (see “Inserting the LAN
Switch Blade” on page 95 ).
Inserting the LAN Switch Blade
V
CAUTION!
Read the safety information and the information on handling electro-
static-sensitive components in the
section “Components With Electro-
static-Sensitive Devices” on page 25 .
Ê Remove the LAN switch blade from its package.
