PRIMERGY BX600 S2 Basic Unit 109
FC Switch Blade Port Assignment
Configuration with ten 2-way server blades
The illustration below shows the assignment of FC switch blades to the fabric
ports of the server blades in a configuration with ten 2-way server blades.

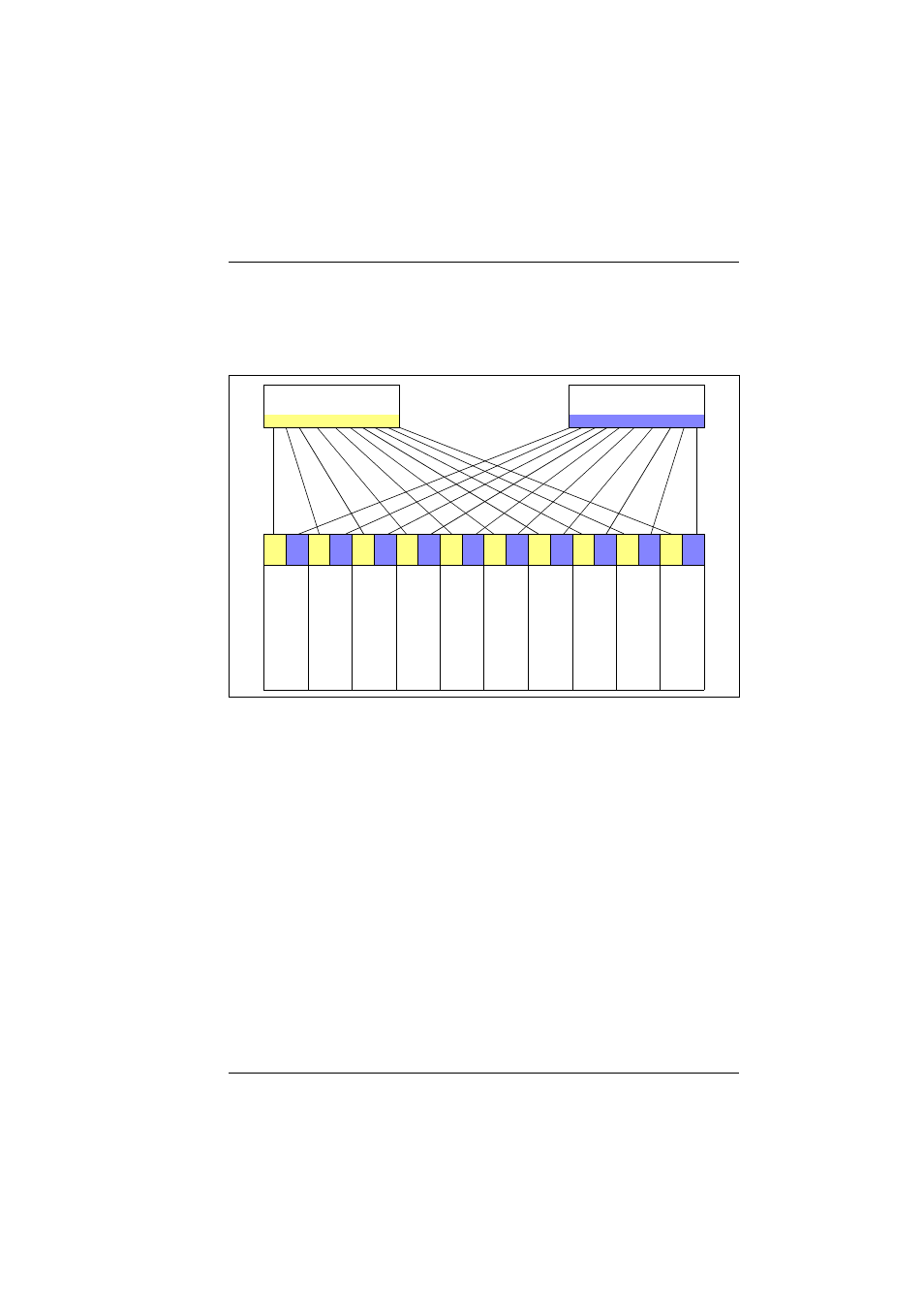

Figure 61: Fabric port assignment with 2-way server blades
I
When using the 12-port version the fabric ports of the server blades 6
and 7 (slots 9 and 10) are not available.
Ser
v
er
b
lade 8
Ser
v
er
b
lade 9
Ser
v
er
b
lade 1
0
Ser
v
er
b
lade 1
Ser
v
er
b
lade 2
Ser
v
er
b
lade 3
Ser
v
er
b
lade 4
Ser
v
er
b
lade 5
Ser
v
er
b
lade 6
Ser
v
er
b
lade 7
A B A B A B A B A B A B A B A B A B A B
FC switch blade NET3 FC switch blade NET4
