78 PRIMERGY BX600 S2 Basic Unit
Adding a Server Blade to the System Server Blades
©
c
o
g n it
as
. Ge
s e
lls
c h ft
f ü r T
e c
h n ik
-Do
k u
m
e nt
at
io
n m
b H
2
007
P
fad:
H:
\w
in
dows
\_p
roj
e k te\
B
x z \B
e tr
ie
b
s a n le
it un
g\
V e
rs
ion_
M
a e
rz
-2
007
\A
rc
h iv
\B
X
6
0 0 S
2
_ en\
bl
ad
e-u
s .k
0 7
Installation is the same as for the server blade (see “Inserting the Server Blade”
on page 78 ).
Inserting the Server Blade
V
CAUTION!
Read the safety information and the information on handling electro-
static-sensitive components in the
section “Components With Electro-
static-Sensitive Devices” on page 25 .

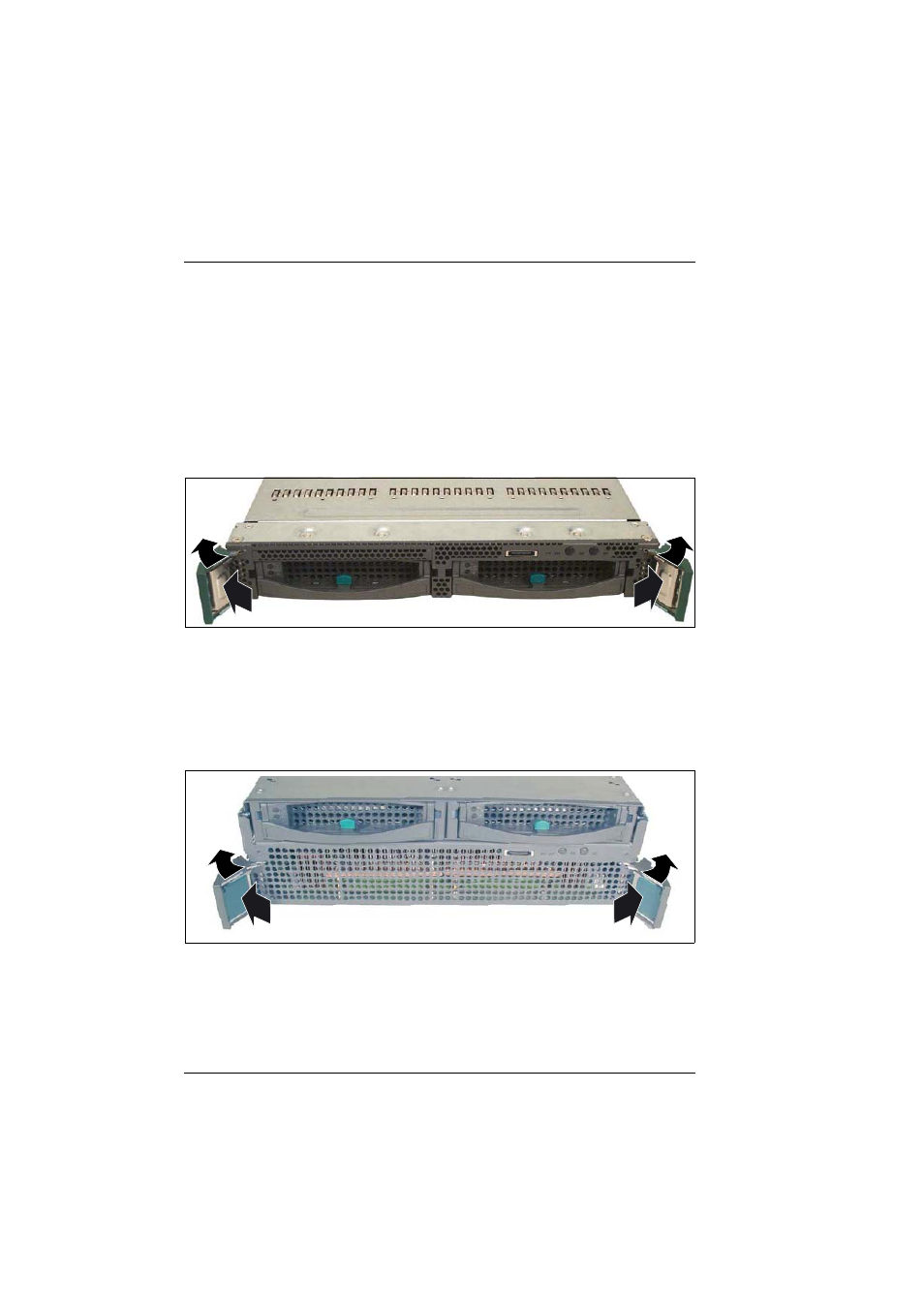

Figure 36: Turning the eject handles into the unlocked position (2-way server blade)
Ê Press the touch points on the inside of the eject handles (1) of the server
blade to disengage the locking mechanism of the handles.
Ê Turn the eject handles outward (2) into the unlocked position.
The 4-way server blade has the same locking mechanism (see figure 37 ).
Figure 37: Turning the eject handles into the unlocked position (4-way server blade)
I
How to install a server blade is described in the following using the
example of a 2-way server blade. 4-way server blades are installed in the
same way.
