82
PRIMERGY BX600 S2 Basic Unit
LAN Switch Blade (SB9) 6x1Gbit
Ethernet Switch Blades
©
c
o
g
n
it
as
.
Ge
s
e
lls
c
h
ft
f
ü
r T
e
c
h
n
ik
-Do
k
u
m
e
nt
at
io
n
m
b
H
2
007
P
fad:
H:
\w
in
dows
\_p
roj
e
k
te\
B
x
z
\B
e
tr
ie
b
s
a
n
le
it
un
g\
V
e
rs
ion_
M
a
e
rz
-2
007
\A
rc
h
iv
\B
X
6
0
0
S
2
_
en\
bl
ad
e-u
s
.k
0
8
8.1
Gbit Ethernet LAN Switch Blade (SB9)
6x1Gbit
The Gbit Ethernet LAN switch blade (SB9) 6x1Gbit supports layer 2/3/4
functionality and offers the following connections:
–
10 internal 1Gbit downlink ports to the server blades
–
6 external 1Gbit uplink ports via RJ45 connectors
Operating and Indicator Elements

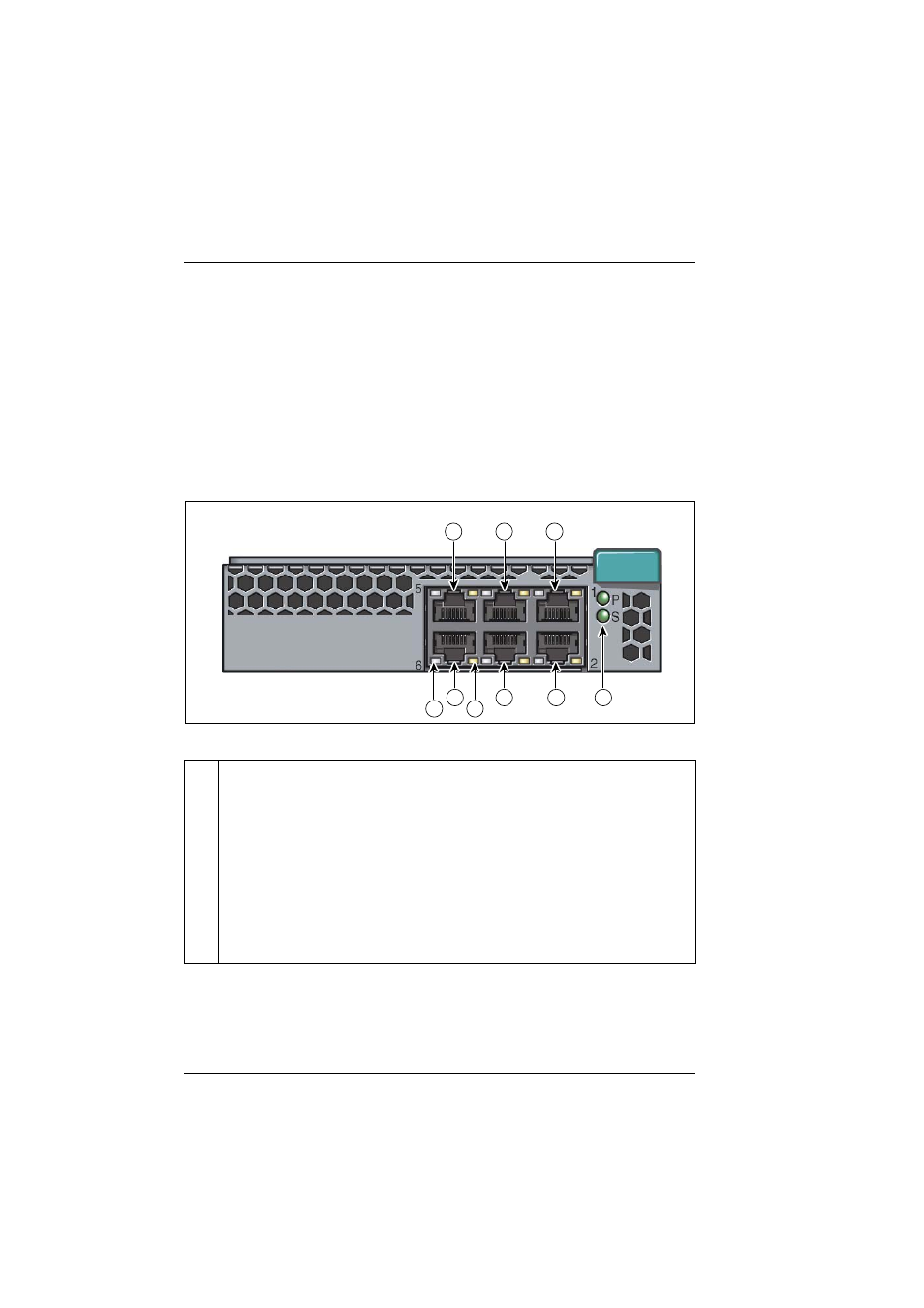

Figure 40: Gbit Ethernet LAN switch blade(SB9) 6x1Gbit
1-6
1 Gbit uplink LAN connectors (with two integrated LAN status LEDs each)
LED A:
LAN active indicator (bicolor LED)
Glows amber:
Port link at 1 Gbit/s
Glows green:
Port link at 100 Mbit/s
Dark:
Port link at 10 Mbit/s
LED B:
LAN link indicator (yellow LED)
Glows yellow:
Network link
Blinks yellow:
Network activity
Dark:
No network link or port disabled
1
3
5
2
7
4
6
A
B
