Front I/O panel housing assembly
1 . Prepare the workstation for disassembly ( Preparation for disassembly on page 59 ).
2 . Remove the access panel and rotate the workstation so the system board is parallel to the table to
make it easier to work on ( Access panel on page 61 ).
3 . Remove the hard drive cables from the plastic shroud at the front of the chassis and from the hard
drives.
4 . Remove the shroud from the chassis ( Fan shroud on page 84 ).
5 . Disconnect the power switch/LED cable, the front USB cable, and the front audio cable from the
system board.

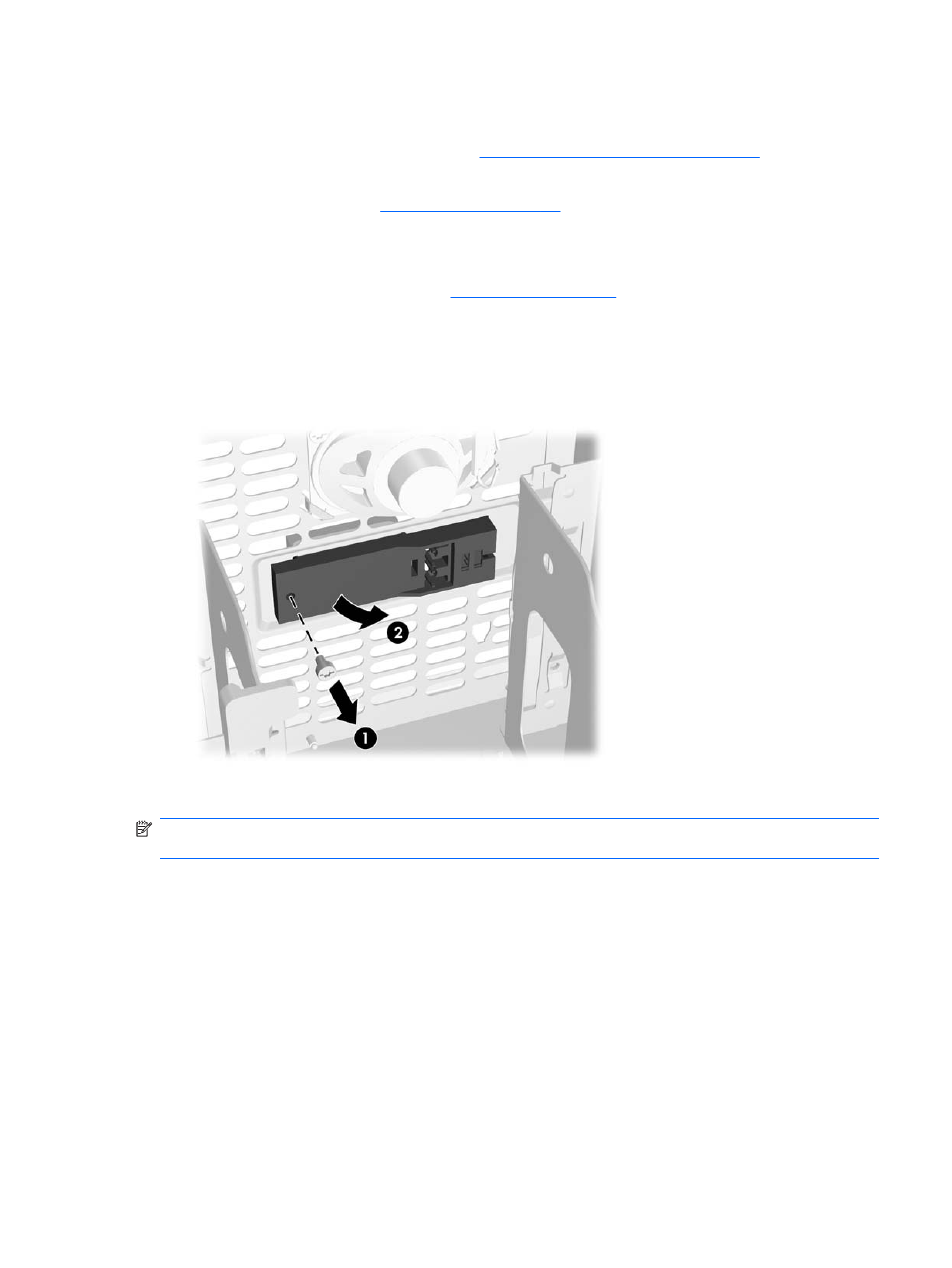

6 . Remove the single screw that secure the housing to the chassis (1), then push the housing to the inside
of the chassis (2).
To install the housing assembly, reverse the removal procedures.
NOTE: When installing the housing, insert the power-button end into the opening and then rotate the
USB end into position before inserting the retaining screw.
