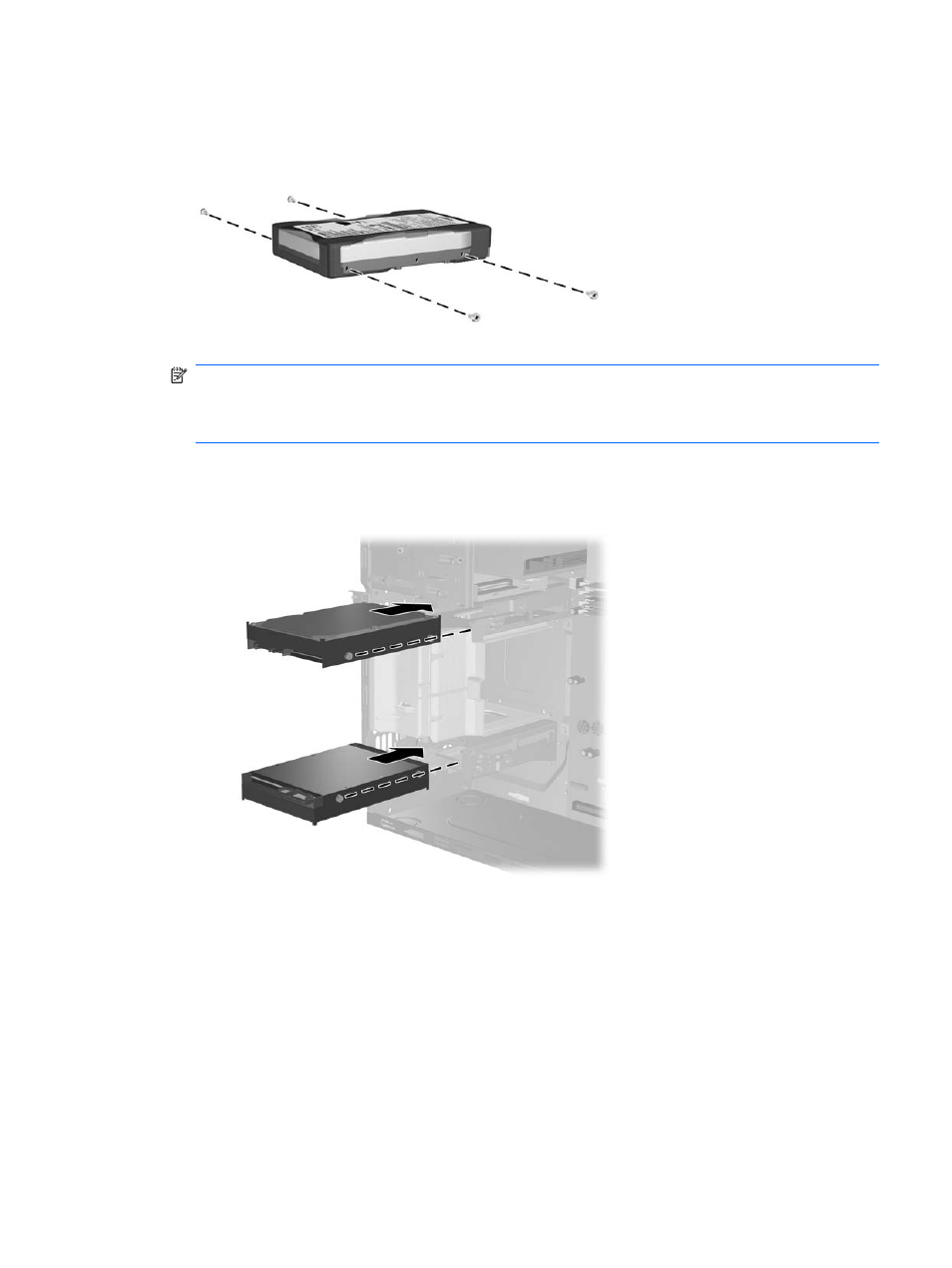

Install the four guide screw (two on each side) that were removed from the old drive into the new

drive. The screws help guide the drive into its proper position in the bay. Extra guide screws are

provided on the front of the chassis under the front bezel.

NOTE:

There are a total of eight extra guide screws on the front of the chassis. Four have 6-32

standard threads and four have M3 metric threads. Standard screws are used for hard drives and

have a silver finish. Metric screws are used for all other drives and have a black finish. Make sure

to install the appropriate guide screws into the drive.

Slide the drive into the drive bay, making sure to align the guide scews with the guide slots, ubtil the

drive snaps into place. The upper bay is for the primatry hard drive. The bottom bay is for the optional

secondary hard drive.
