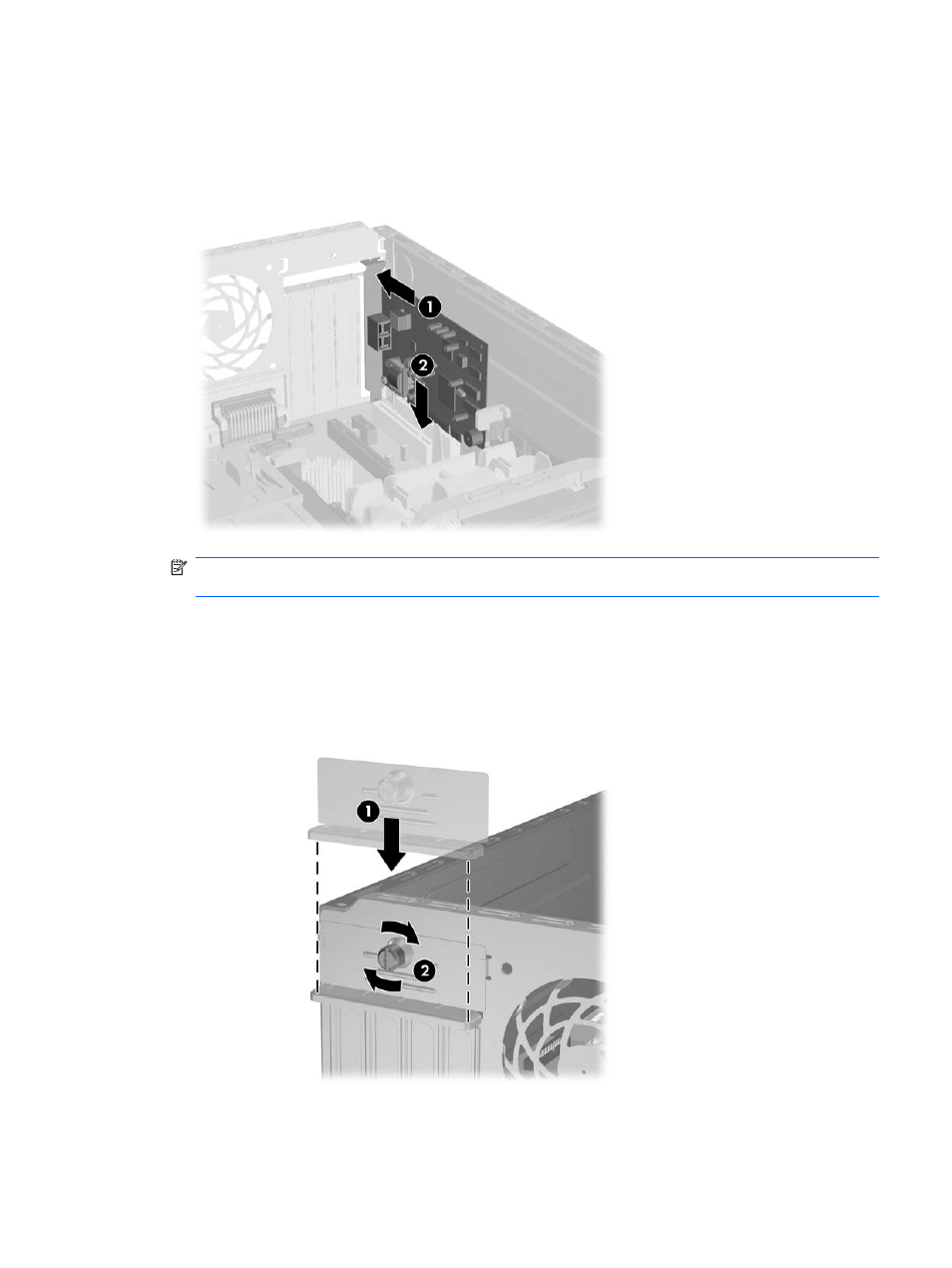

7 . If replacing or adding a new expansion card, hold the card just above the expansion slot on the
system board then move the card toward the rear of the chassis (1) so that the bracket on the card
is aligned with the open slot on the rear of the chassis. Press the card straight down into the expansion
slot on the system board (2).
NOTE: When installing an expansion card, press firmly on the card so that the whole connector
seats properly in the expansion card slot.
8 . If you are replacing an expansion card, store the old card in the anti-static packaging that contained
the new card.
9 . While holding the expansion card bracket against the chassis, slide the slot cover lock down toward
the expansion card brackets and slot covers (1) to secure them in place and replace the thumbscrew
(2) that secures the slot cover lock.
10 . Connect external cables to the installed card, if needed. Connect internal cables to the system board,
if needed.
ENWW Expansion cards 73
