HP XW3400 User Manual
Page 87
NOTE:
There are a total of eight extra guide screws on the front of the chassis. Four have 6-32
standard threads and four have M3 metric threads. Standard screws are used for hard drives and
have a silver finish. Metric screws are used for all other drives and have a black finish. Make sure
to install the appropriate guide screws into the drive.
2
.

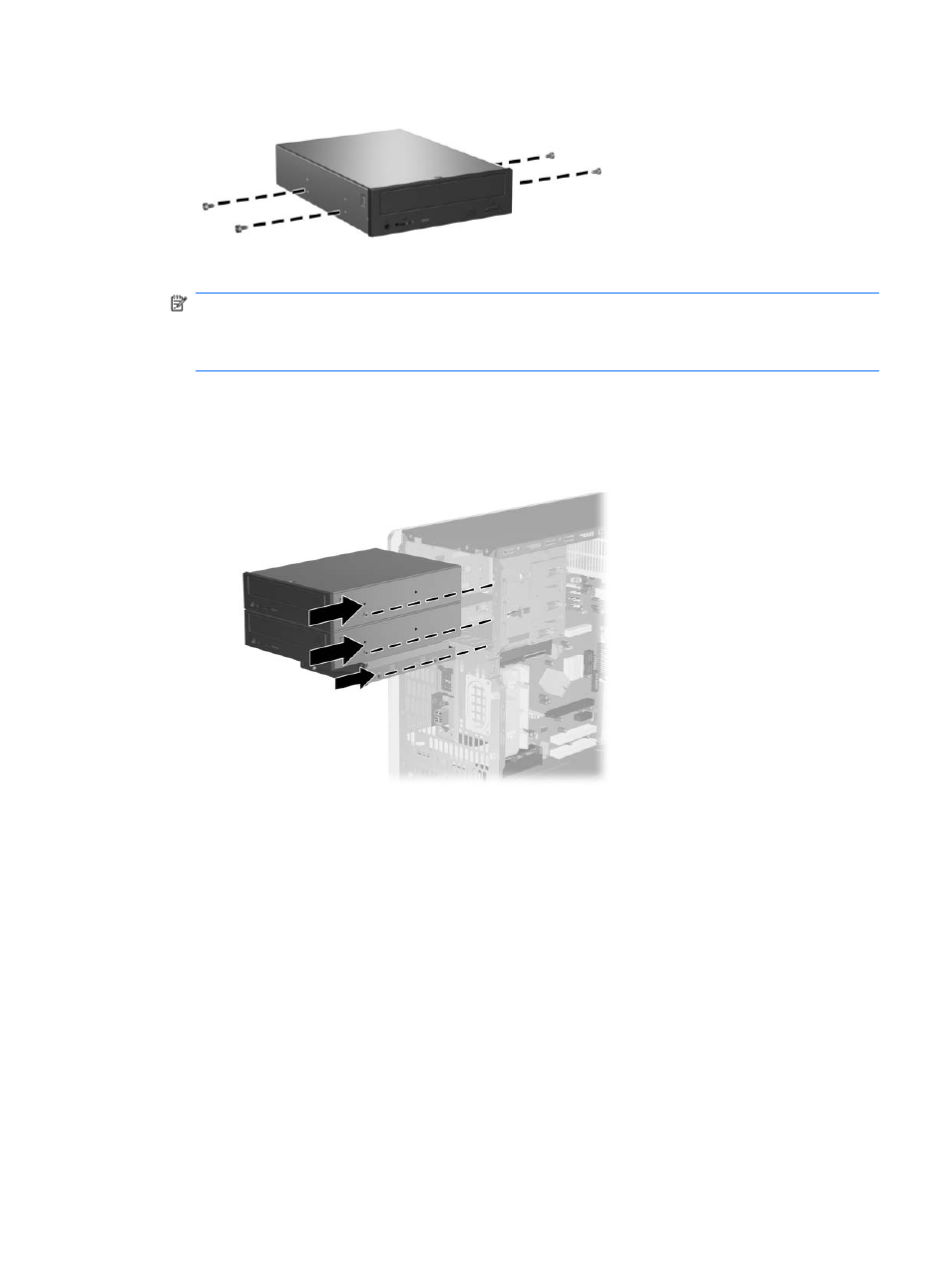

Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until
the drive snaps into place.
3
.
Reconnect the power and data cables to the drive as shown in the following illustrations.
ENWW
Drives 77
