HP XW3400 User Manual
Page 88
NOTE:
Refer to
Serial and Parallel ATA drive guidelines and features on page 47
for information
on attaching the cabling to get optimum performance.
a

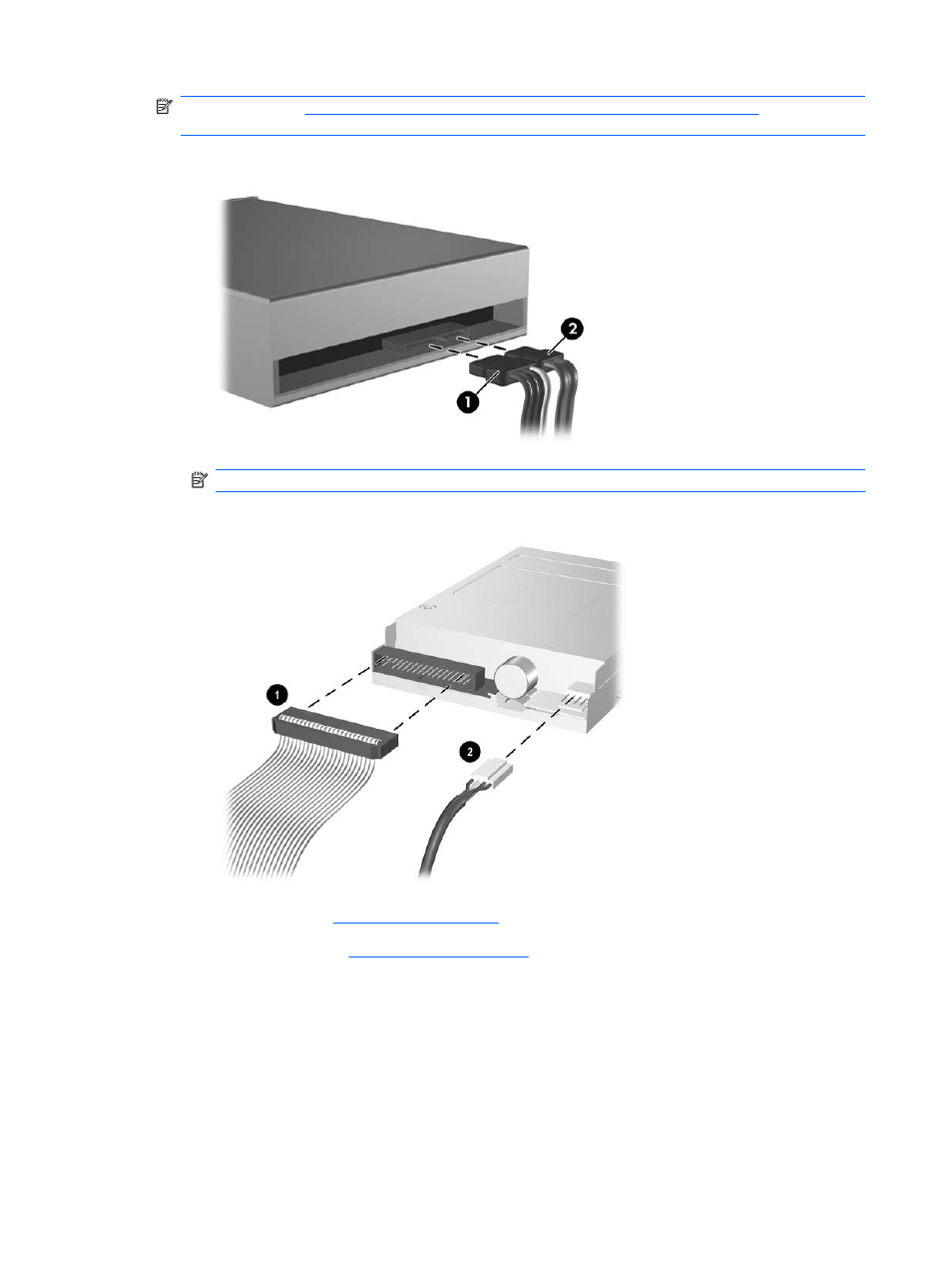

. Refer to the illustration below to connect optical drive cables.
NOTE:
Some products use straight cable connectors while others use right angle connectors.
b
. Refer to the illustration below to connect diskette drive cables.
4
.
Install the front bezel (
5
.
Install the access panel (
).
6
.
Turn on the workstation.
78 Chapter 7 Removal and replacement procedures
ENWW
