Access panel
1
.
Prepare the workstation for disassembly (
Preparation for disassembly on page 59
CAUTION:
Before removing the workstation access panel, ensure that the workstation is turned
off and that the power cord is disconnected from the electrical outlet.
2
.

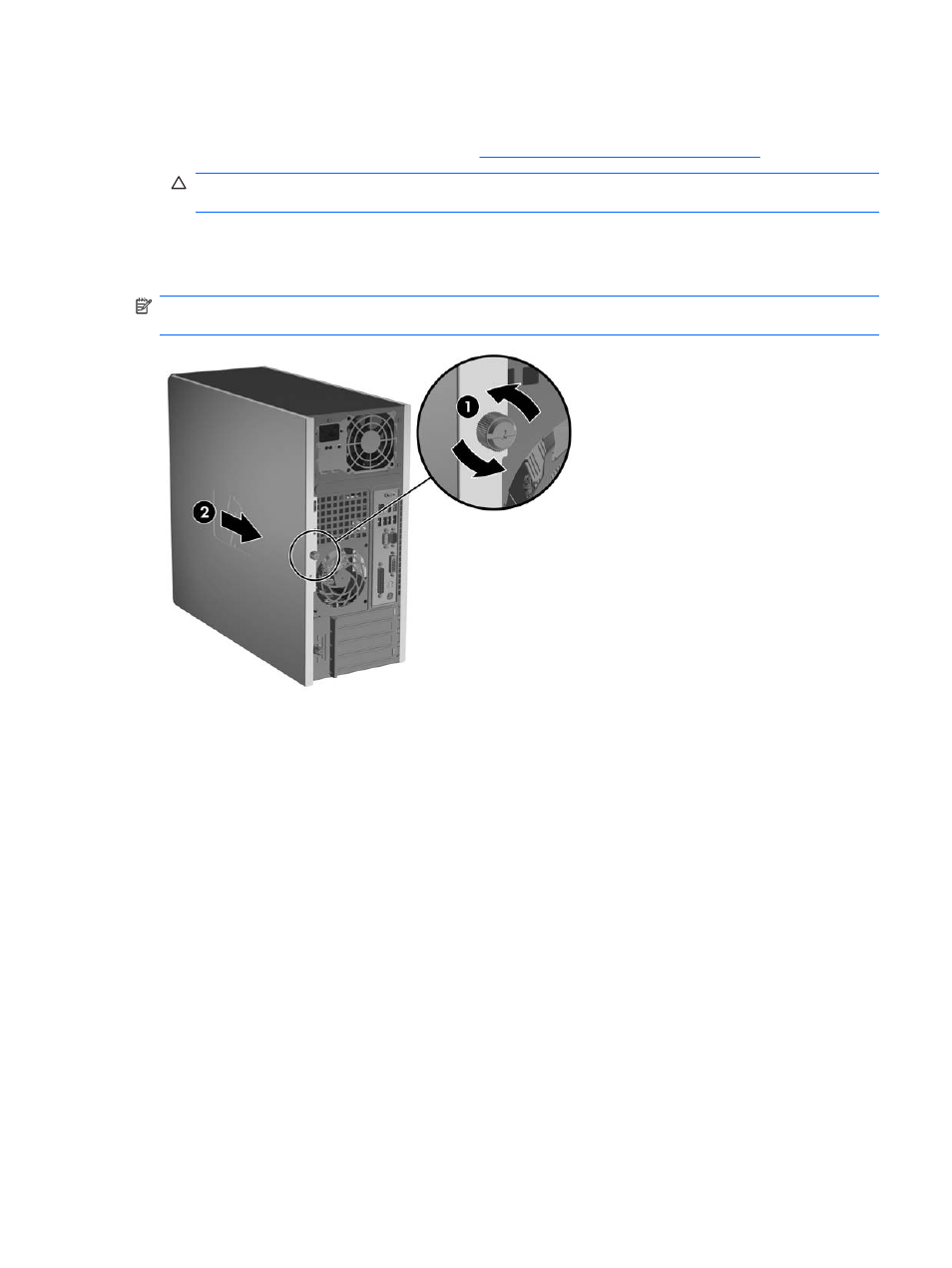

Loosen the captive thumbscrew (1) that secures the access panel to the workstation chassis.
3
.
Slide the access panel (2) back about 1.3 cm (1/2 inch ), then lift it off the unit.
NOTE:
You may want to lay the workstation on its side to install internal parts. Be sure the side with the
access panel is facing up.
To install the access panel, reverse the removal procedure.
ENWW
Access panel 61
