Fan shroud
1
.
Prepare the workstation for disassembly (
Preparation for disassembly on page 59
).
2
.
Remove the access panel and rotate the workstation so the system board is parallel to the table to
make it easier to work on (
3
.
Remove the hard drive cables from the plastic shroud at the front of the chassis and from the hard
drives.
4
.

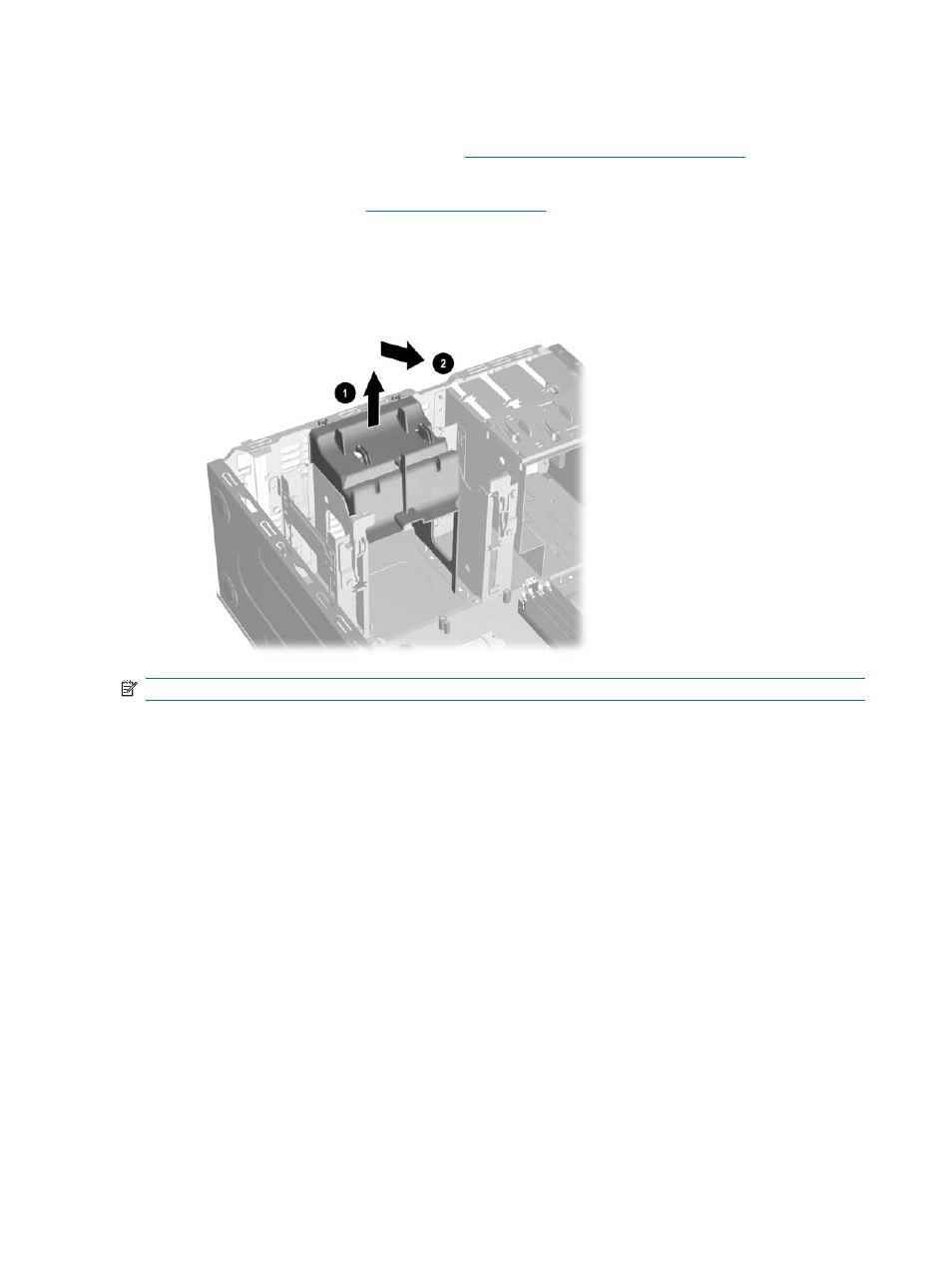

Lift the shroud straight up (1) about 5-mm (3/16-in) before pulling it into the chassis (2) to remove it.
NOTE:
To install the shroud, reverse the removal process.
