Parameter Setup
Outline of Parameter
This driver is equipped with various parameters to set up its characteristics and functions. This section
describes the outline of each parameter. Read and comprehend very well so that you can adjust this driver
in optimum condition for your running requirements.
The parameter numbers not be mentioned in this section are not for individual use but for manufacturers'
use. Do not change these parameters from the default setting.
How to Set
• You can refer and set up the parameter with either one of the following.
1) Console (DV0P4420, option)
2) Combination of the setup support software, "PANATERM
® " (Option, DV0P4460: Japanese / English ver-
sion) and PC.
For setup of the parameters on PC screen, refer to the instruction manual of the "PANATERM
® ".
Outline of PANATERM ®
With the PANATERM ® , you can execute the followings.
1) Setup and storage of parameters, and writing to the memory (EEPROM).
2) Monitoring of I/O and pulse input and load factor.
3) Display of the present alarm and reference of the error history.
4) Data measurement of the wave-form graphic and bringing of the stored data.
5) Normal auto-gain tuning
6) Frequency characteristic measurement of the machine system.

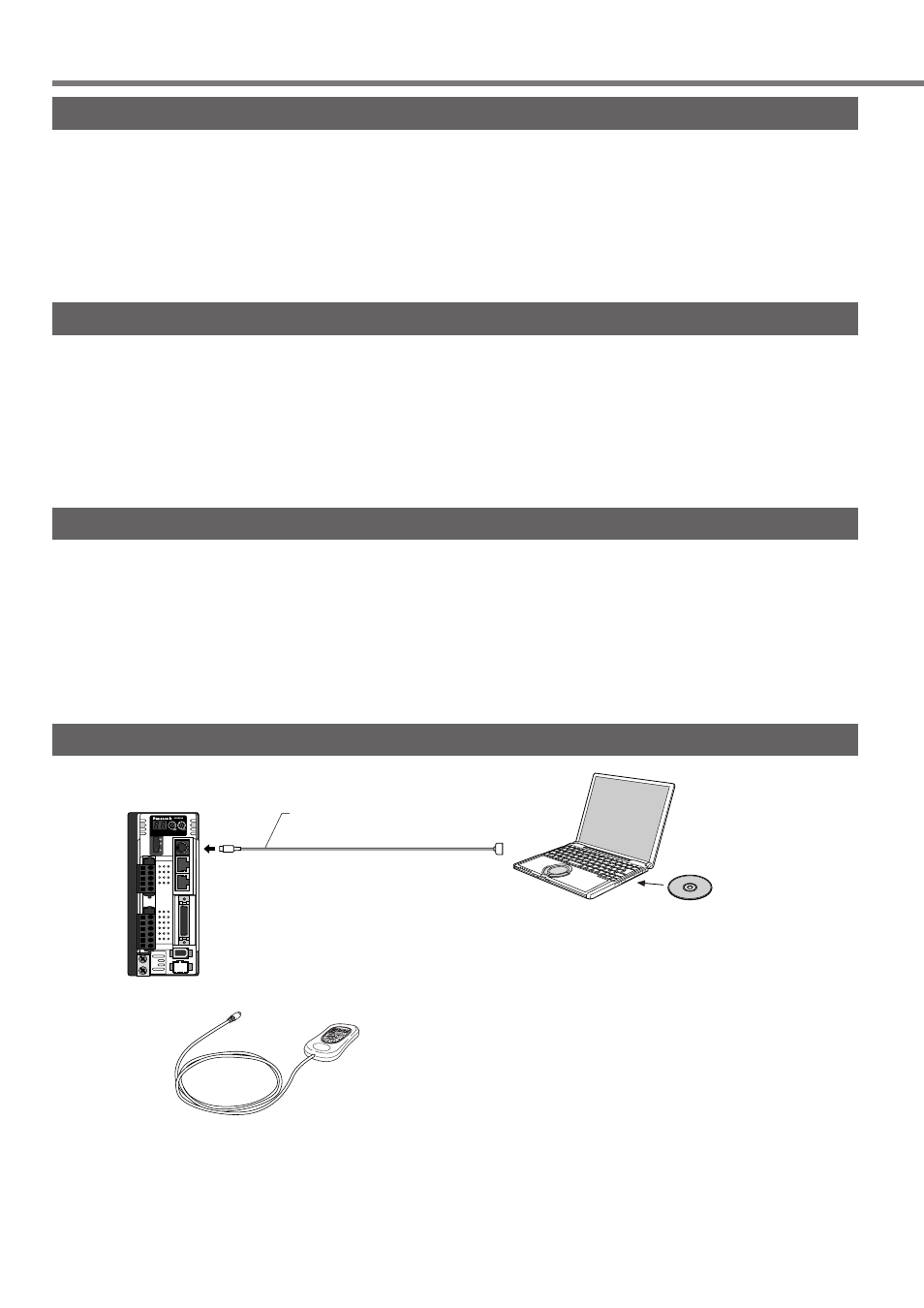

How to Connect
• Connect the console connector to the connector, CN X4 of the driver securely.
• Do not pull the cable to insert/unplug.
Connect to CN X4
Connect to CN X4
RS232 connection cable (option)
DV0P1960 (for DOS/V machines)
Console : DV0P4420 (option)
Setup disc of setup support software, PANATERM ®
• DV0P4460 : Japanese / English version (option)
For the latest version, feel free to contact us.
Refer to “Outline of Setup Support Software ‘‘PANATERM
® ”
on page 103.
