230
250C
6Ć34 Removal and Replacement C4699Ć90000

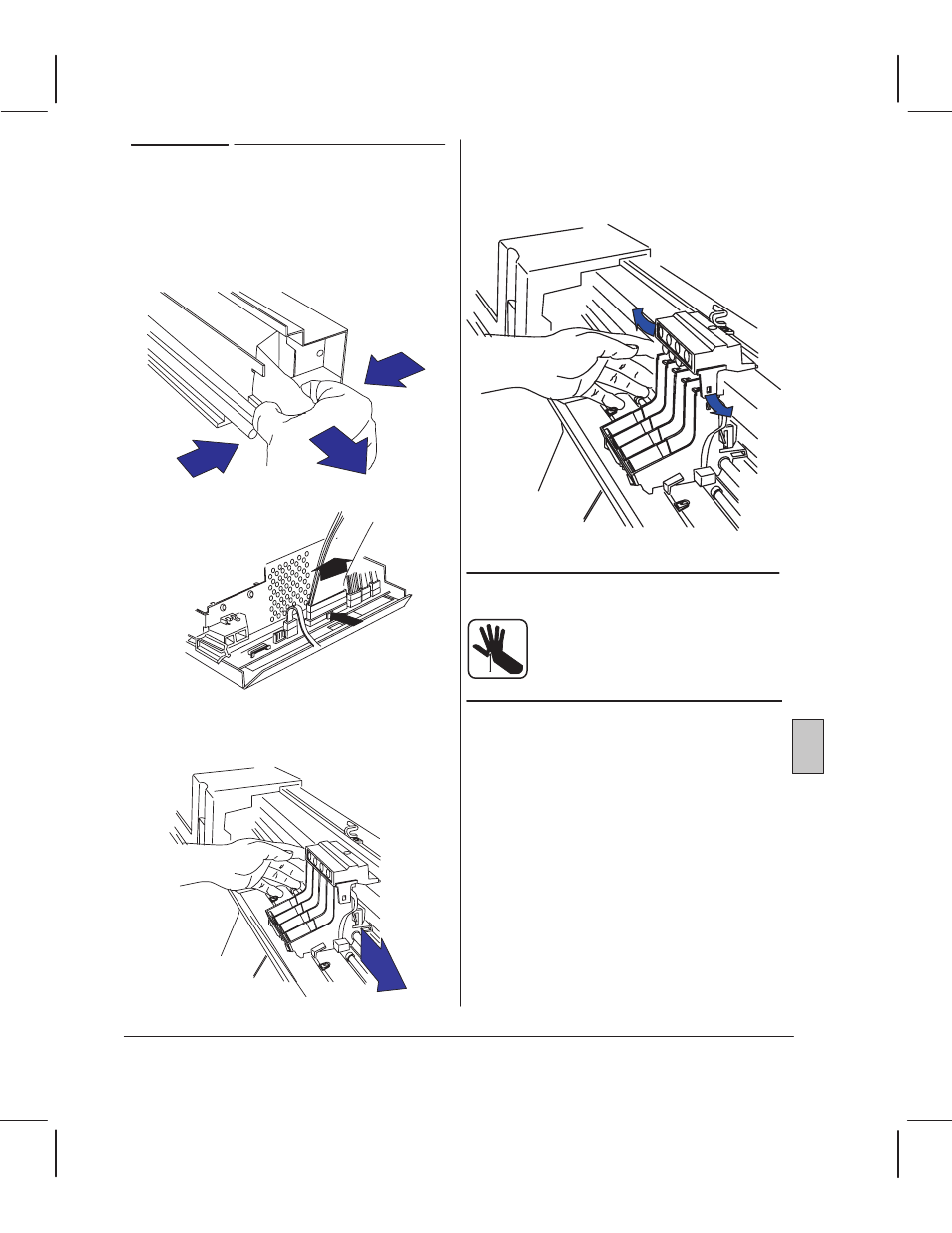

Removing the Trailing Cable
1 Remove the right endĆcover ' page 6Ć10.
2 Disconnect the trailing cable from the
connectormarked P1 on the main PCA,
and from the guides on the right bracket.
C
D
C
A
B
3 Move the carriage out of the service
station.
4 Release the two indicated clips on the top
of the cartridge carriage by pulling them
slightly outwards.
W A R N I N G
In the following step, take
care neither to cut yourself
on the encoder strip, nor to
damage the strip.
For DesignJet 230 only, it is also necessary to
release two clips at the bottom of the cartridge
carriage.
