Step 3. Attach the skin without the lap joint (Front) over the top bracket and under the bottom bracket and
gently slide the skin into position.

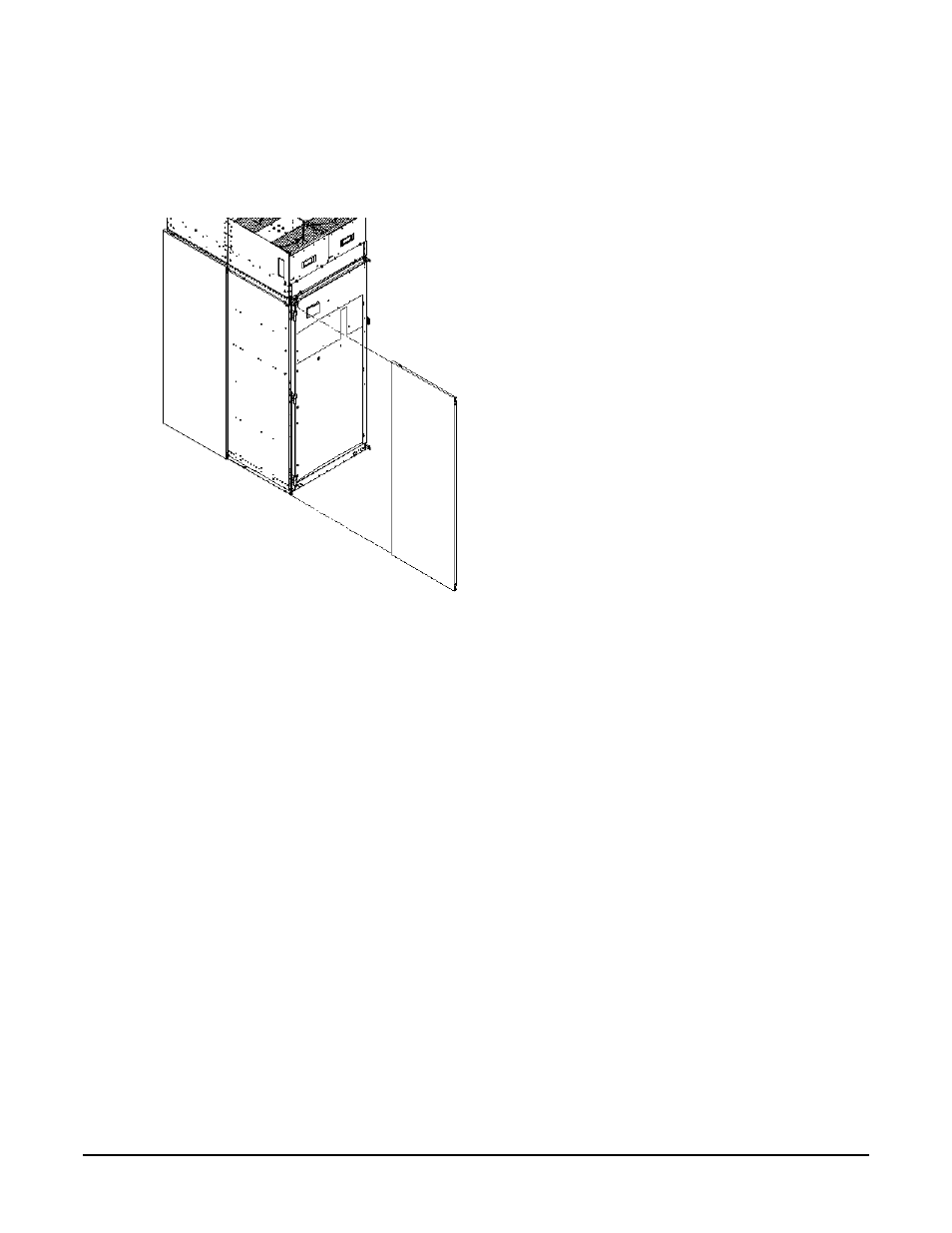

Figure 3-18 Attaching the Front Side Skins
Step 4. Push the side skins together, making sure the skins overlap at the lap joint.
Attaching the Blower Side Bezels
The bezels are held on at the top by the bezel lip, which fits over the top of the blower housing frame, and are
secured at the bottom by tabs that fit into slots on the cabinet side panels (Figure 3-19).
Use the same procedure to attach the right and left blower side bezels.
