Chapter 3
Installing the System
Setting Up the System
92
This cardboard protects the housing baffle during shipping. If it is not removed, the fans will not
work properly.

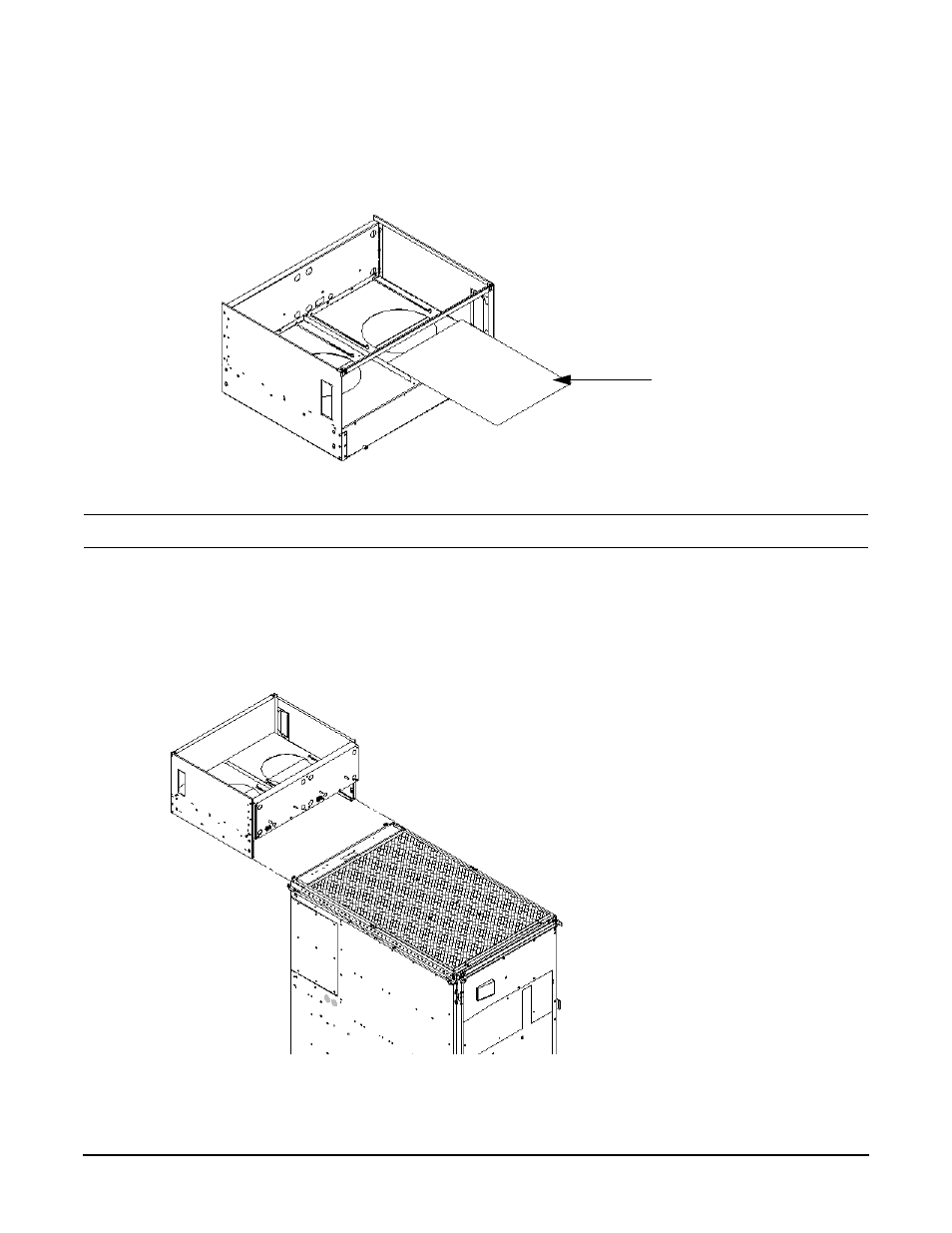

Figure 3-13 Removing Protective Cardboard from the Housing
NOTE Double-check that the protective cardboard has been removed.
Step 3. Using the handles on the housing labeled Blower 3 Blower 2, part number A5201-62029, align
the edge of the housing over the edge at the top rear of the cabinet, and slide it into place until the
connectors at the back of each housing are fully mated (Figure 3-14). Then tighten the
thumbscrews at the front of the housing.
Figure 3-14 Installing the Rear Blower Housing
Cardboard
