Appendix D
Templates
Templates
231

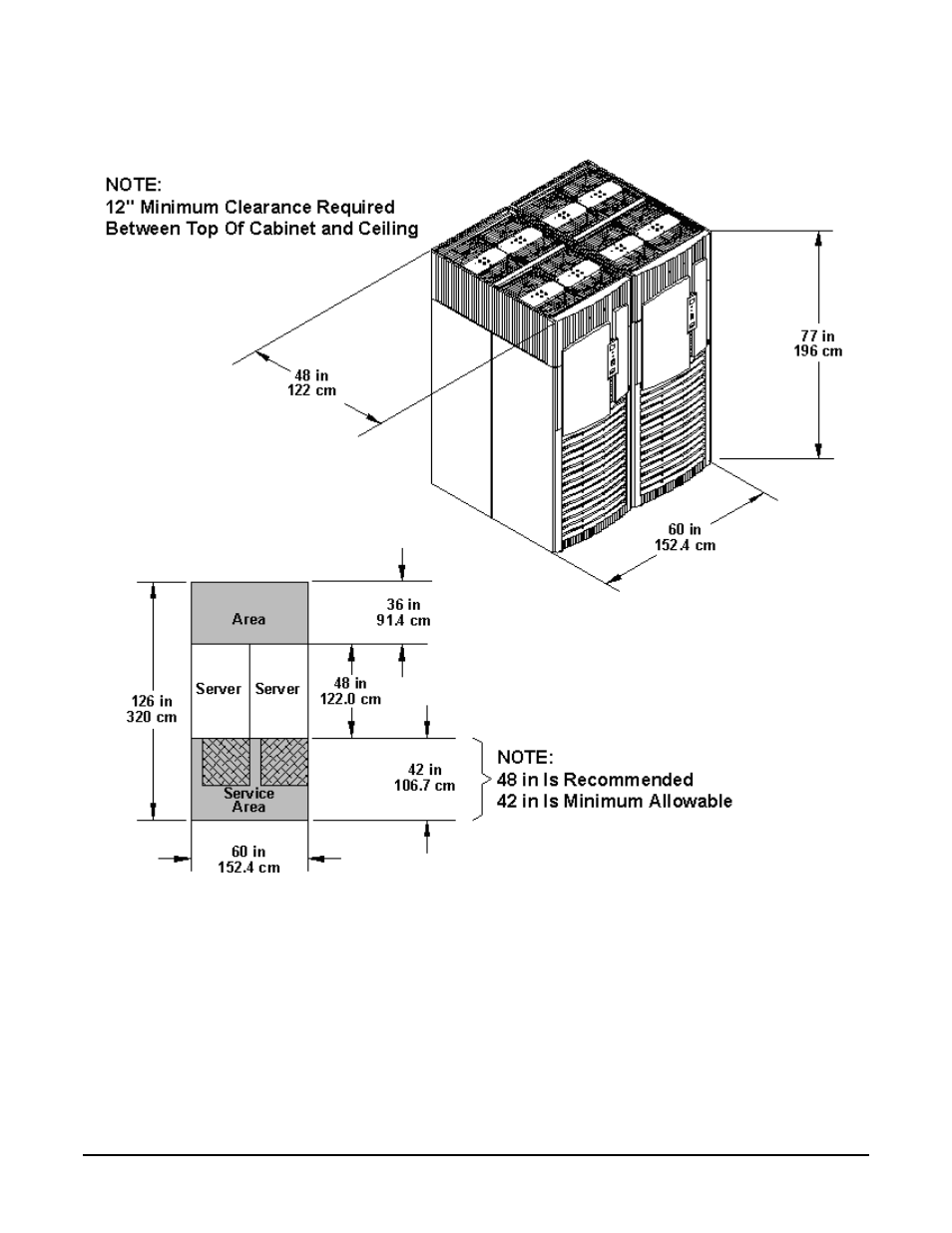

Figure D-3 SD64 Space Requirements
Equipment Footprint Templates
Equipment footprint templates are drawn to the same scale as the floor plan grid (1/4 inch = 1 foot). These
templates are provided to show basic equipment dimensions and space requirements for servicing.
The service areas shown on the template drawings are lightly shaded.
Use equipment templates with the floor plan grid to define the location of the equipment that will be installed
in the computer room.
