HP A9834-9001B - Manual (Page 88)

Chapter 3
Installing the System
Unpacking and Inspecting the System
88
Step 5. Carefully roll the cabinet down the ramp (Figure 3-11).

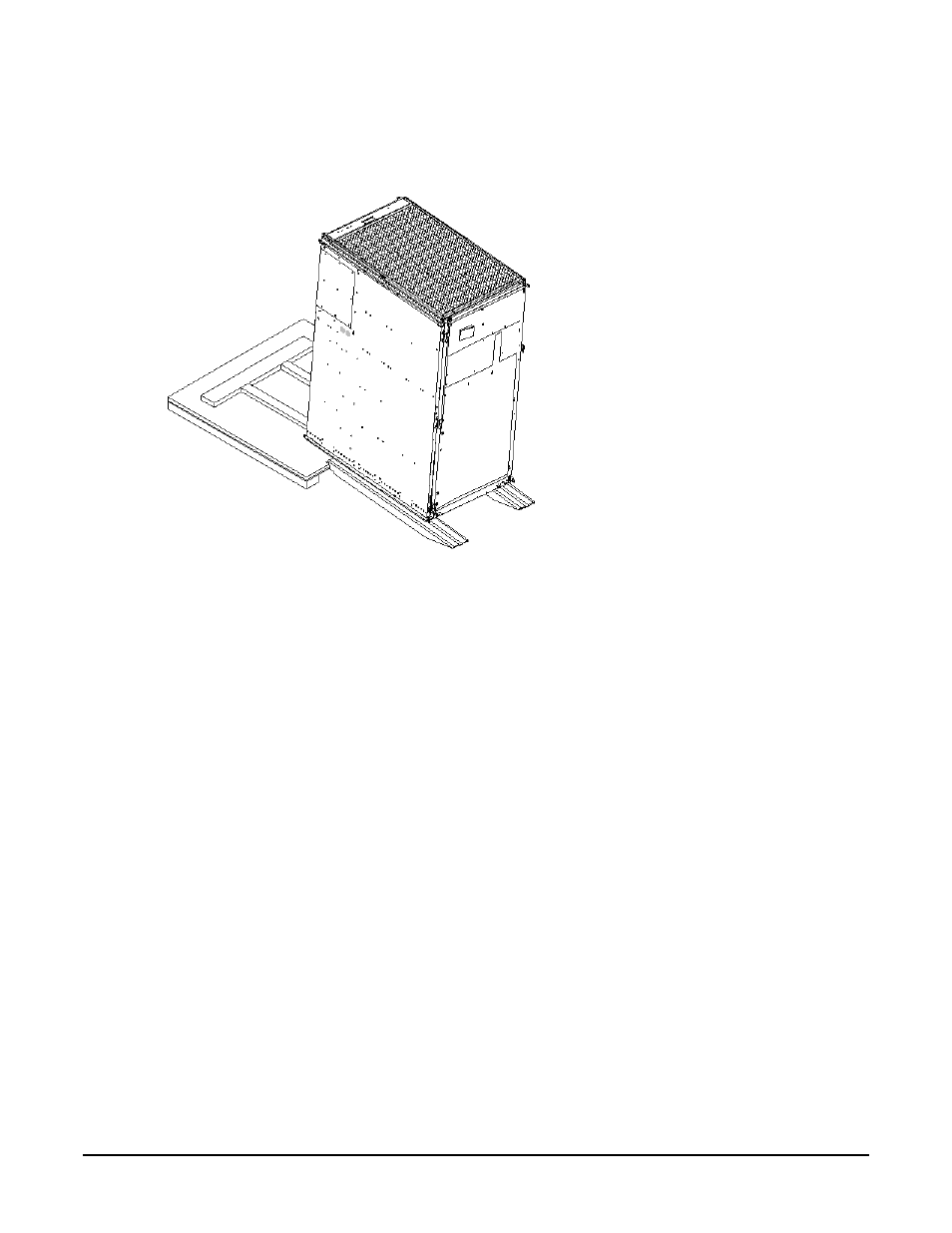

Figure 3-11 Rolling the Cabinet Down the Ramp
Step 6. Unpack any other cabinets that were shipped.
Unpacking the PDCA
At least one power distribution control assembly (PDCA) is shipped with the system. In some cases, the
customer may have ordered two PDCAs, the second to be used as a backup power source. Unpack the PDCA
now and ensure it has the power cord option for this installation.
Several power cord options are available for the PDCAs. Only options 6 and 7 are currently available in new
system configurations (Table 3-1 on page 89). Table 3-2 on page 89 details options 6 and 7.
