Chapter 3
Installing the System
Booting and Verifying the System
130
Step 2. At the Select Device: prompt, enter b then the cabinet number to check the power status of the
cabinet. Observe Power Switch: on and Power: enabled as shown in Figure 3-51.

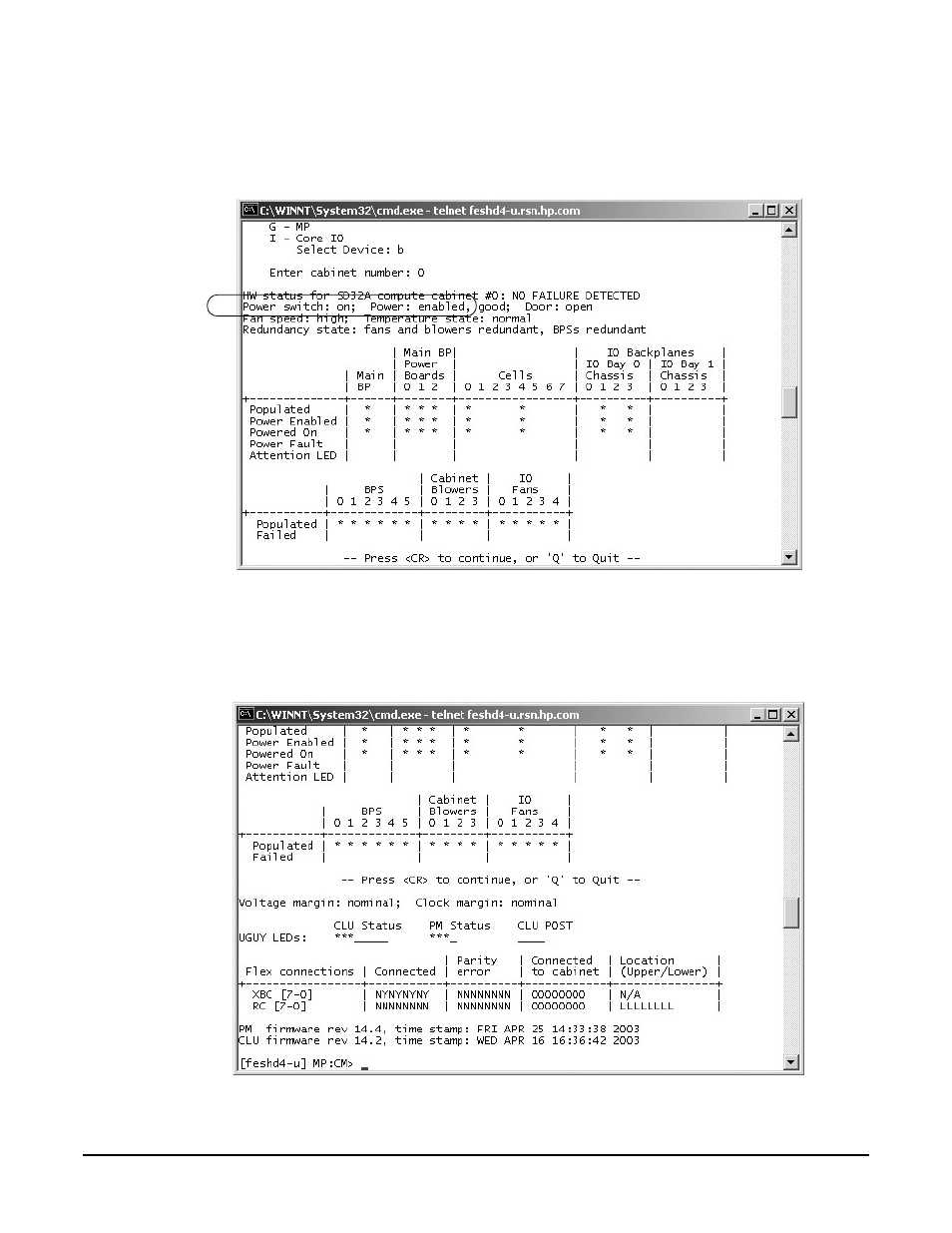

Figure 3-51 Power Status Window
Figure 3-51 shows that cells are installed in slots 0 and 4. In the cabinet, verify that cells are
physically located in slots 0 and 4.
Step 3. Press one more time to observe the status as shown in Figure 3-52.
Figure 3-52 Power Status Showing State of UGUY LEDs (and Other Status)
Step 4. Verify that there is an asterisk (*) in the columns marked MP, CLU, and PM.
