User Manual
Aolynk DR814Q ADSL2+ Broadband Router
7 Appendix - TCP/IP Protocol
88

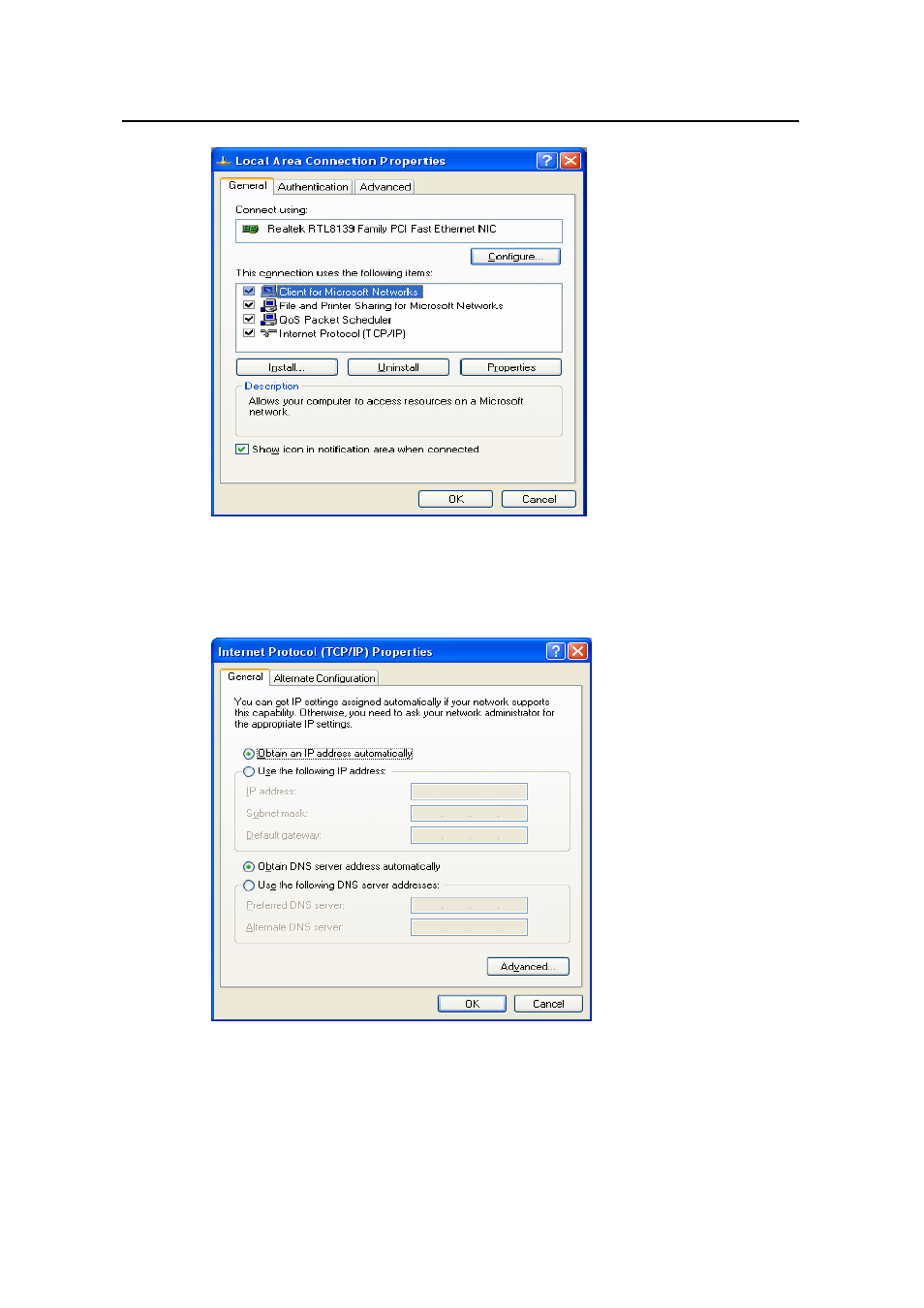

Figure 7-6 Local Area Connection Properties
3)
On the [General] tab page of the [Internet Protocol (TCP/IP) Properties] dialog box
select the Obtain an IP address automatically option and click
Figure 7-7 Internet Protocol (TCP/IP) Properties dialog box
7.2.2 Specifying a Fixed IP Address
Since the DR814Q enables the DHCP by default, the PCs in the LAN can obtain related
information dynamically, thus there is no need to assign static IP addresses for PCs in
