5 Advanced Configuration
43

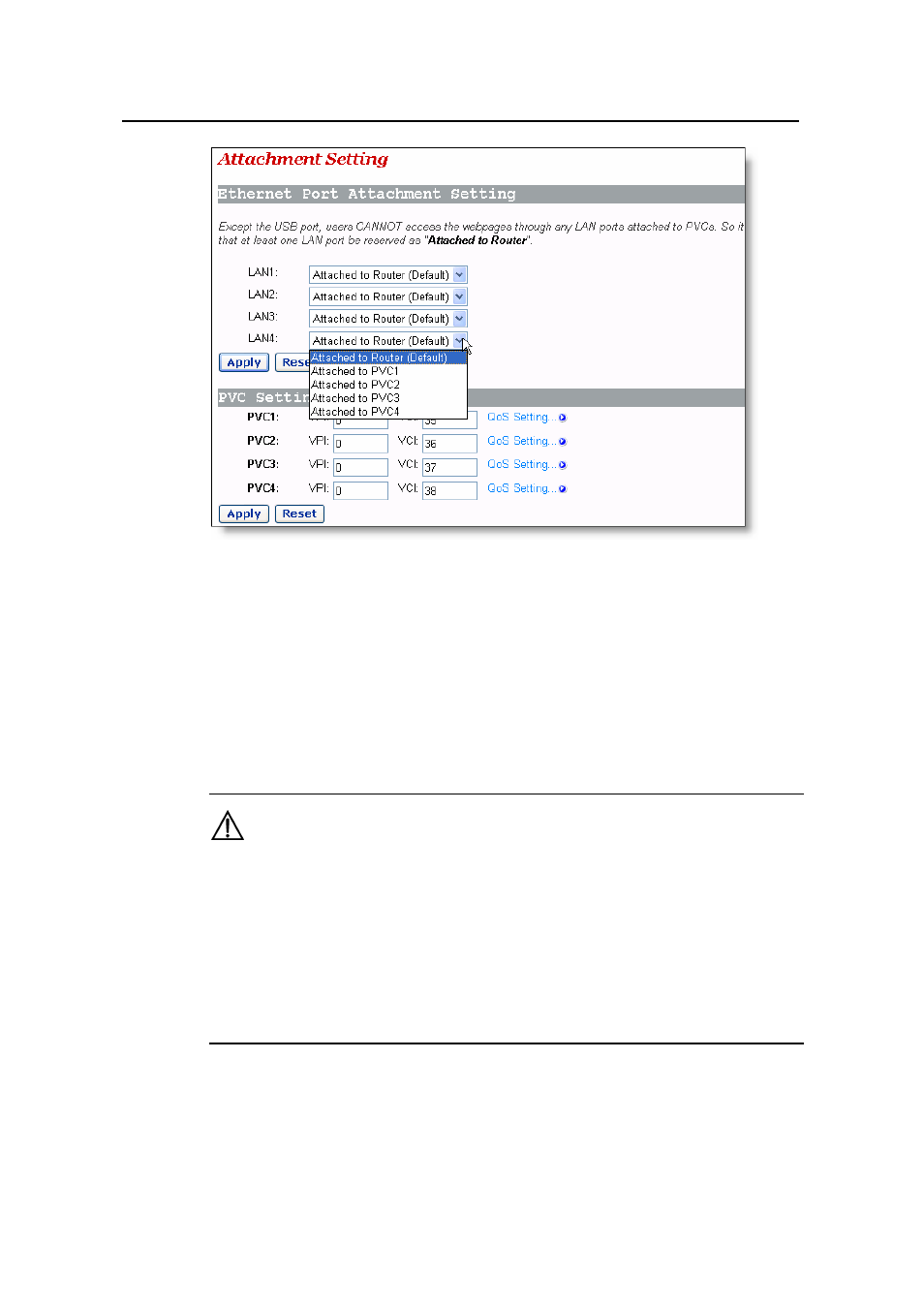

Figure 5-1 PVC Binding Settings
As Figure 5-1 shows, there are five options for each Ethernet port (LAN1 to LAN4) in
the drop-down list: Attached to PVC1/2/3/4 and Attached to Router (Default).
Upon the configuration of these LAN ports, you need to click
configuration and have it take effect. Then in the [PVC Setting] section set VPIs/VCIs
for the corresponding PVCs. Values of VPI/VCI are provided by your ISP. Click
in this section to save your configuration.
Caution:
z
You can manage your DR814Q only through the PC connected to the management
port or the USB port.
z
If all the four Ethernet ports are configured to be bound to PVCs, you can still access
the configuration management page through the USB port. Refer to section 8
“Appendix - USB Configuration” for more information about the USB port.
z
The VPI/VCI values of different PVCs cannot be identical with each other or the
same as those on the other configuration pages.
The following example illustrates the configuration upon the assumption:
z
Bind a LAN port to PVC 0/35 to access the IPTV Website that your ISP set up. The
Website uses DHCP to assign IP addresses dynamically.
