Huawei DR814Q - Manual (Page 31)

User Manual
Aolynk DR814Q ADSL2+ Broadband Router
4 Web-based Basic Configuration
26

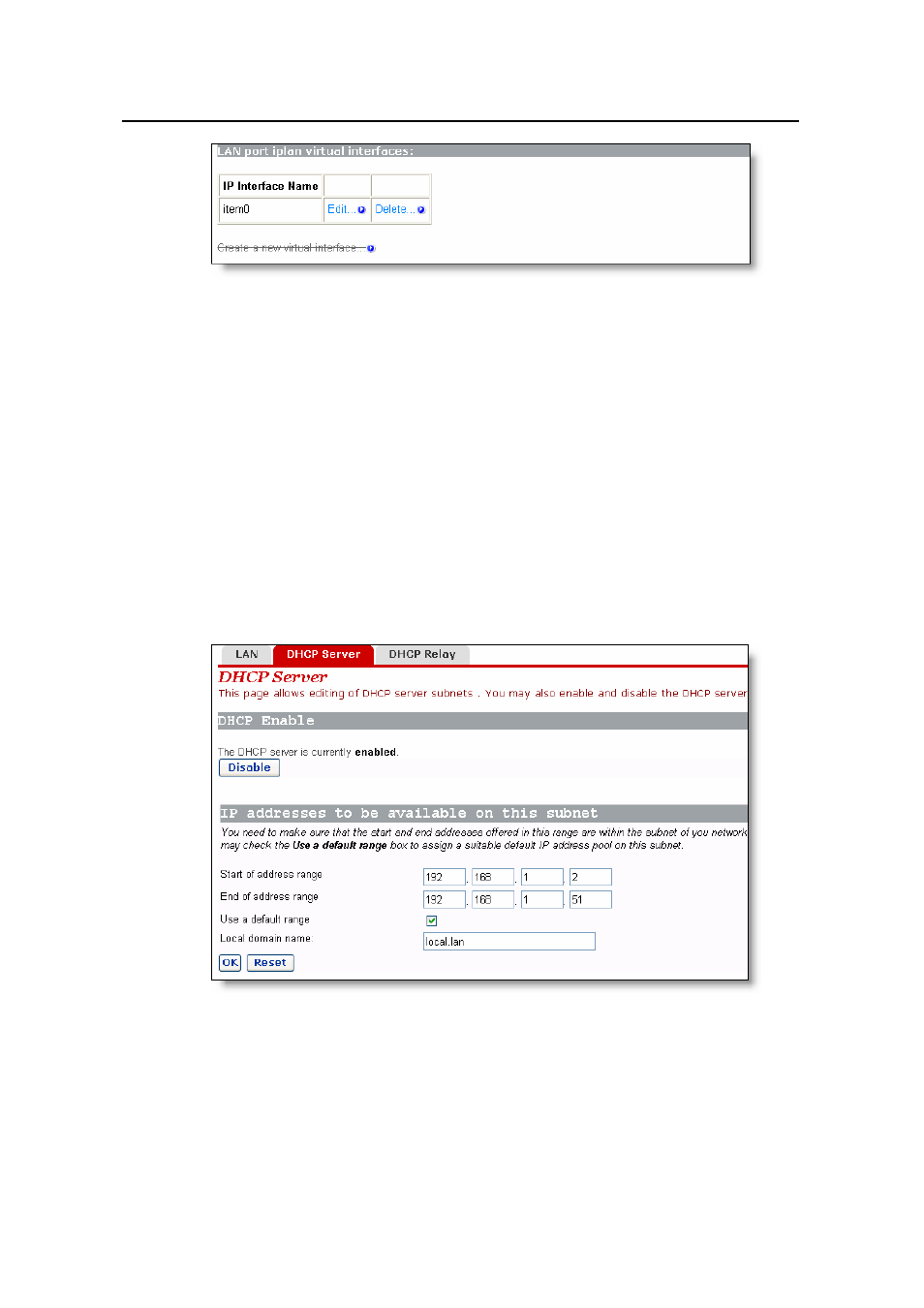

Figure 4-19 Virtual interface
The created virtual interface can be used for DMZ configuration. For details, refer to
section 5.3 "DMZ Configuration”.
To modify the information on the current virtual interface or perform advanced
configuration, click the corresponding button to enter the page. If necessary,
modify the values of options and click .
To delete the current virtual interface, click the corresponding button to
enter the page, and then click .
4.3.2 DHCP Server
The DR814Q can act as a DHCP server to automatically assign IP addresses within a
certain range to any PC running in the LAN.
Figure 4-20 DHCP Server
I. Enable/disable the DHCP server
If the DHCP server is disabled currently, you can click to enable it.
Conversely, you can also click to disable the DHCP server.
