Aolynk DR814Q ADSL2+ Broadband Router
1 Product Overview
2
Table 1-1 LED state description of the DR814Q
LED State Description
ON
The power is ON and the operation is
normal.
Power
OFF The power is off or fault occurs.
ON The ADSL link is up.
Blinking The ADSL link is starting up. Link
OFF The ADSL link is down.
Blinking
Data is being transmitted and received on
the ADSL link.
Act
OFF
No data transmission is present on the
link.
ON The USB connection is established.
USB
OFF No USB connection is present.
ON The Ethernet link is established.
Blinking
Data is being transmitted and received on
the Ethernet port.
LAN1/2/3/4
OFF No link is present.
Diag — For manufactory test only.
1.2.2 Rear Panel
All ports of the DR814Q, a power port, and a reset button are located on the rear panel.

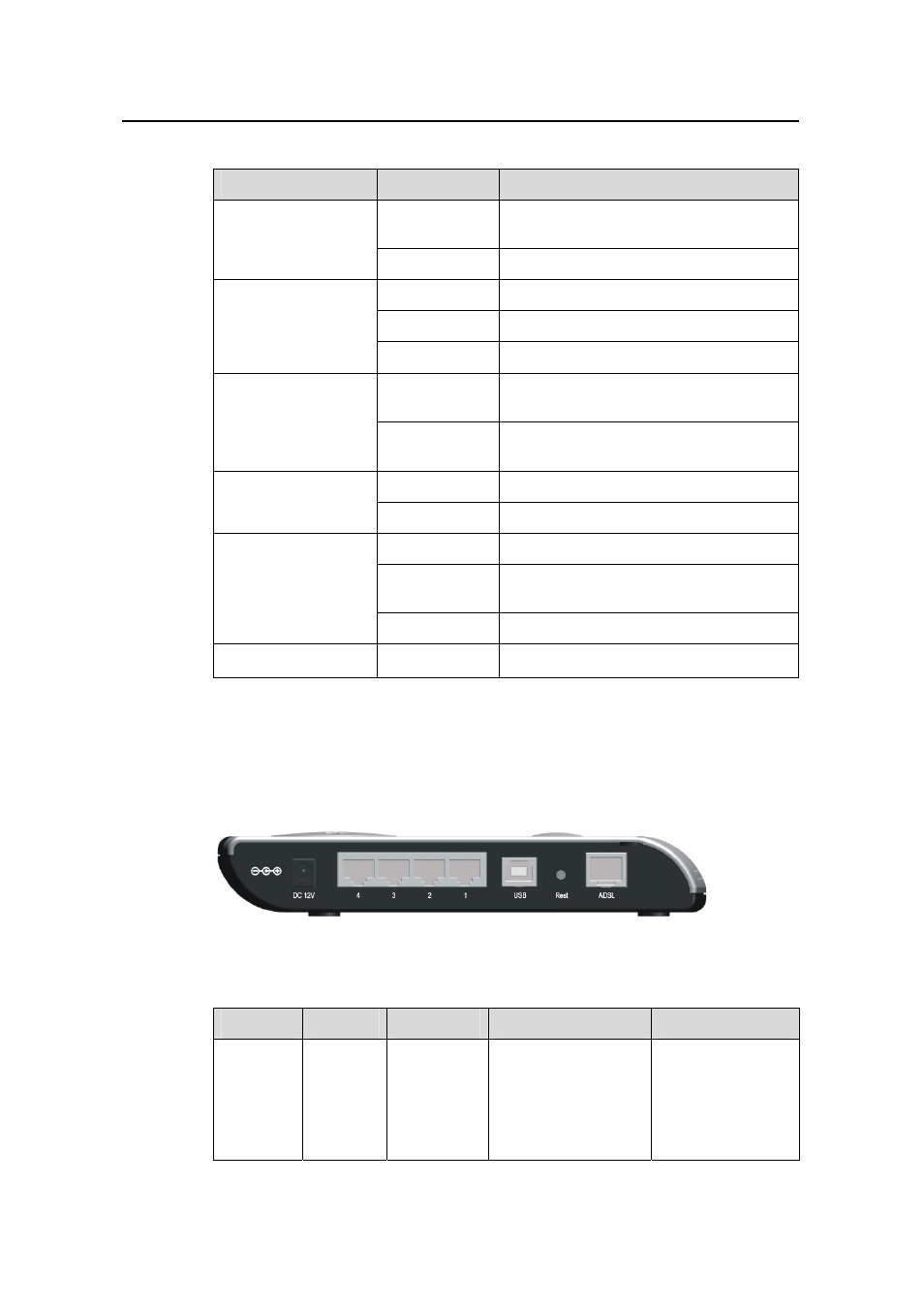

Figure 1-2 Rear view
Table 1-2 Description of the ports and reset button
Item Quantity Port Description Usage
Ethernet
port
4 RJ45
10/100Base-TX
10/100 Mbps
auto-negotiation
auto-MDI/MDIX
IEEE802.3/802.3u
Connect with the
Ethernet port of a
PC, Hub or switch.
